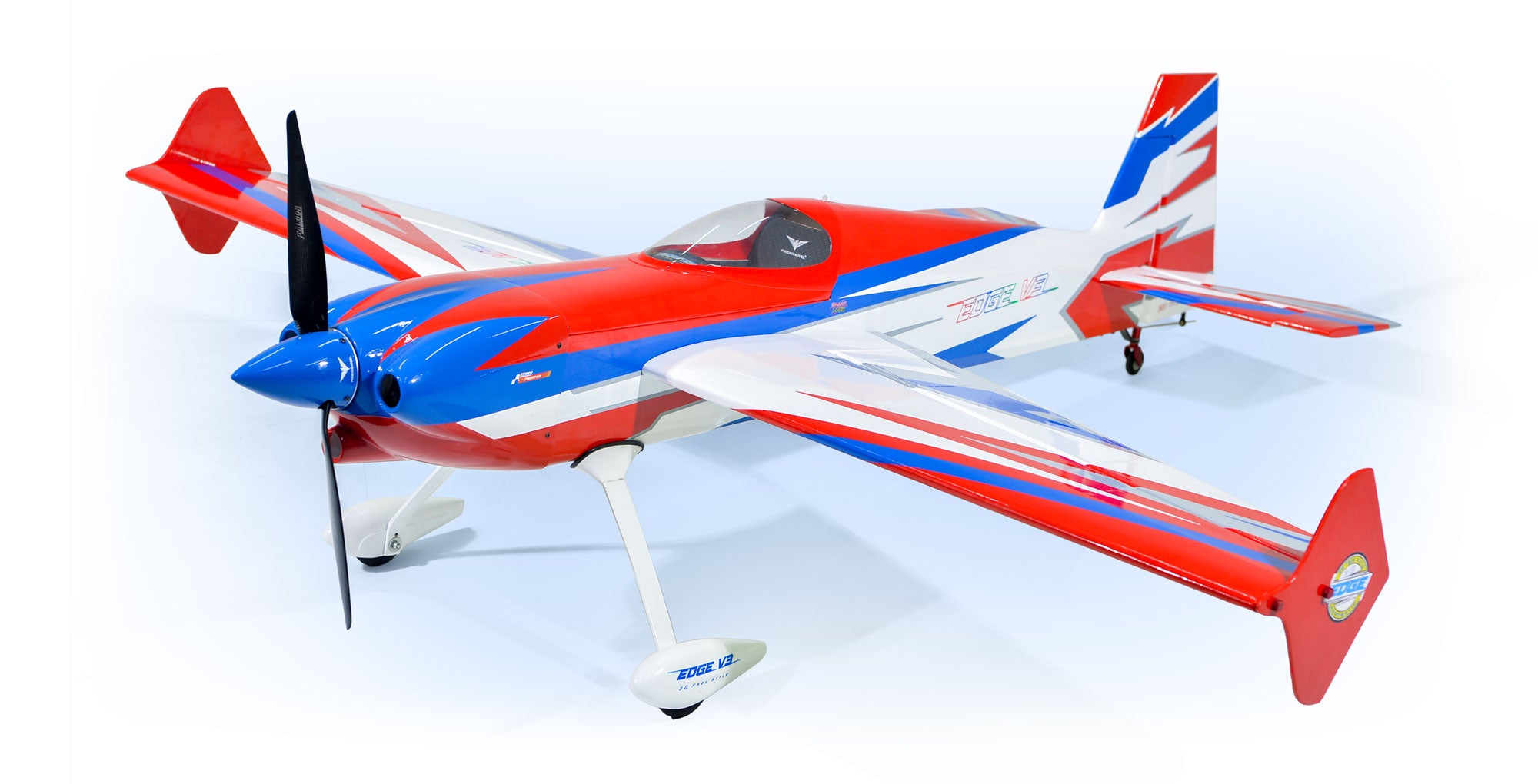

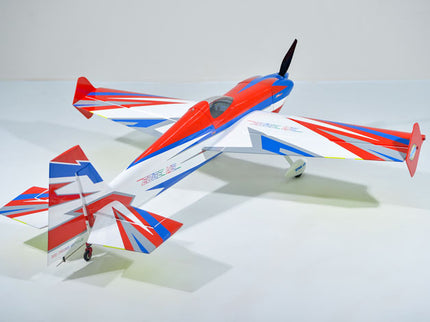

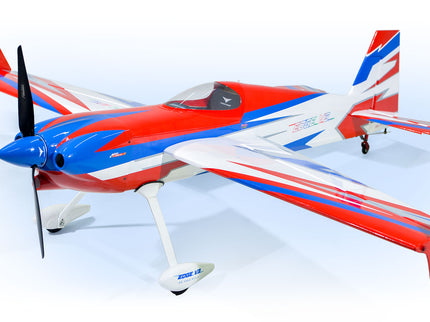

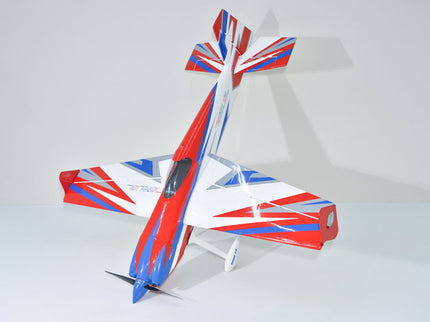

The Edge 540 is famous for its extreme agility and dominance in aerobatic competitions. The Phoenix Model Edge 540 V3 60" ARF brings that same thrilling performance to RC pilots, delivering a powerful and highly capable 3D aerobatic aircraft designed for precision flying and aggressive manoeuvres.

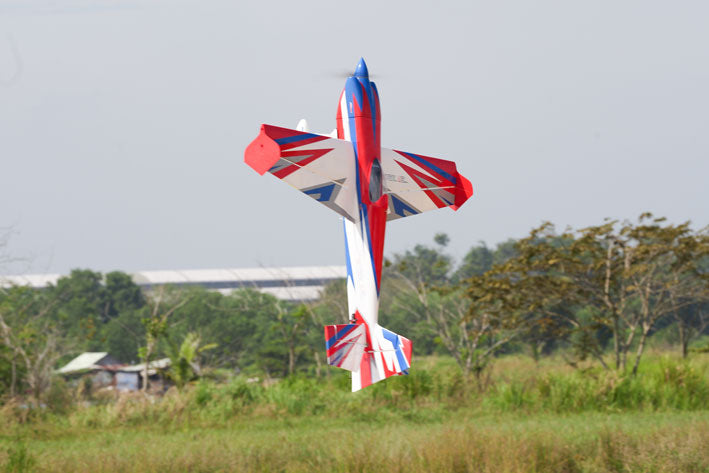

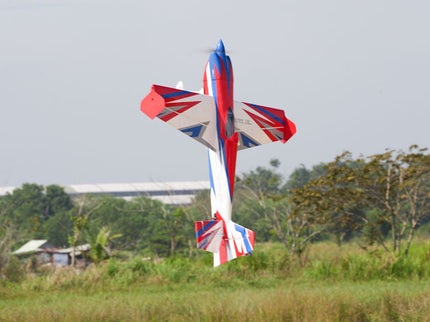

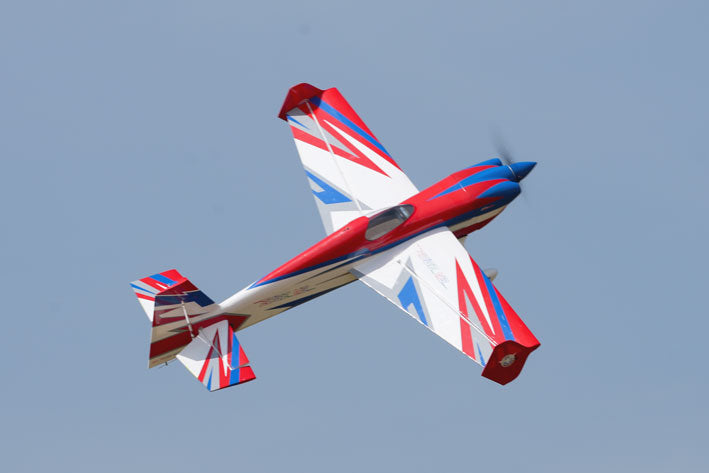

With a 60-inch wingspan and lightweight composite-reinforced balsa construction, the Edge 540 V3 is engineered for strength without excess weight, giving pilots outstanding control authority and responsiveness. The aircraft is capable of both smooth precision aerobatics and extreme 3D manoeuvres, including harriers, knife-edge flight, rolling loops and torque rolls.

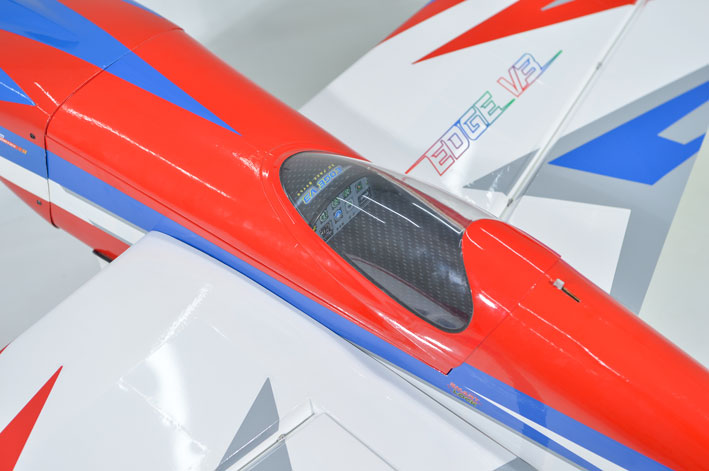

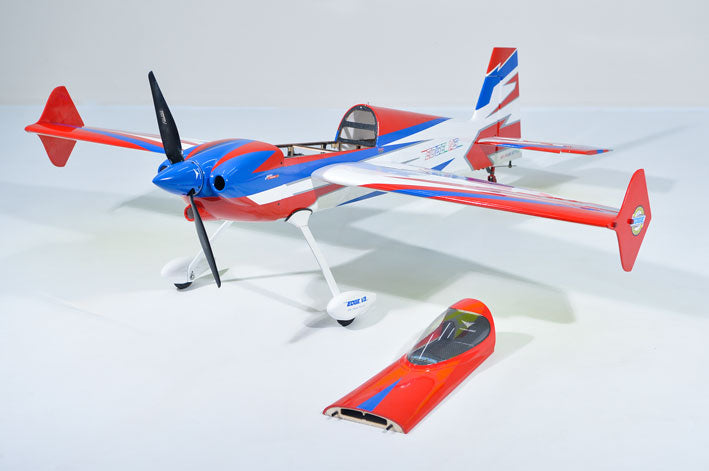

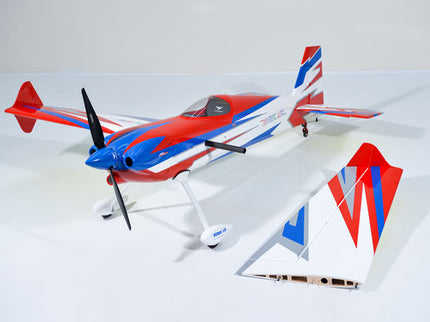

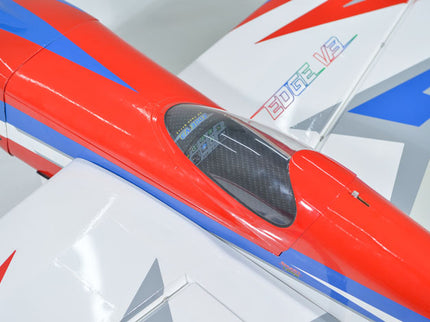

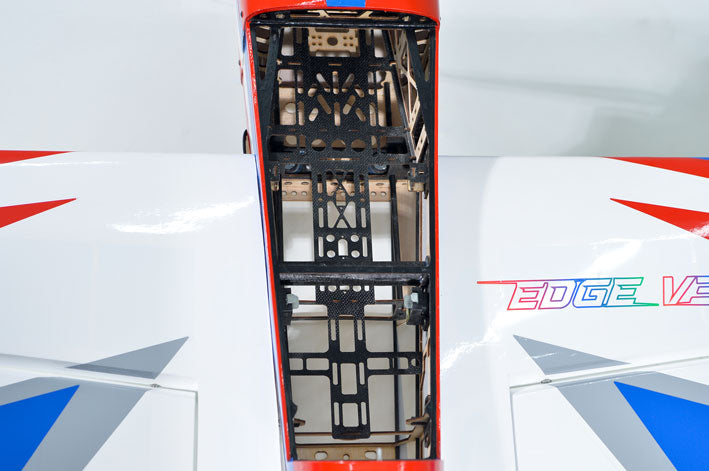

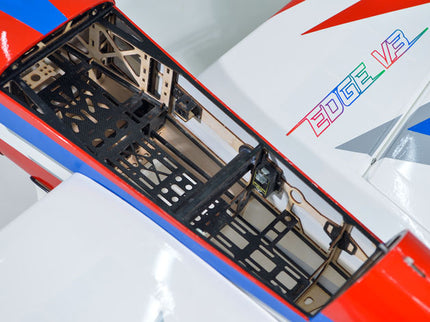

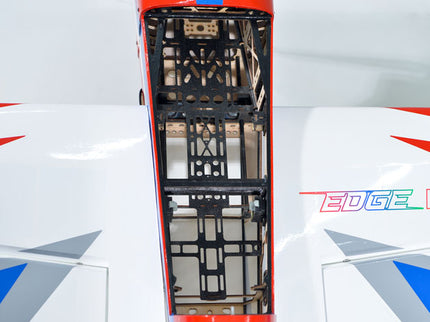

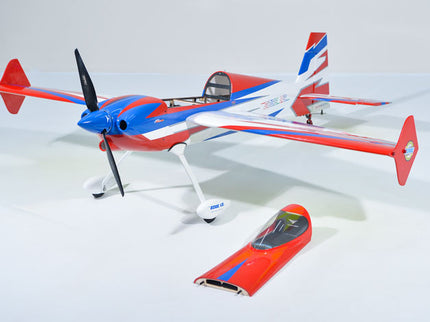

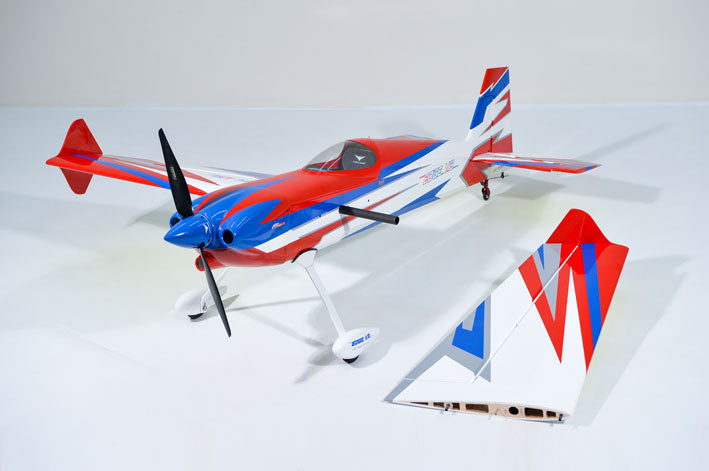

The airframe features plug-in wings with a Smart Lock system, allowing fast field assembly and convenient transport. A removable canopy provides quick access to the battery and electronics, while the carbon fibre landing gear and tail gear add durability and a professional finish.

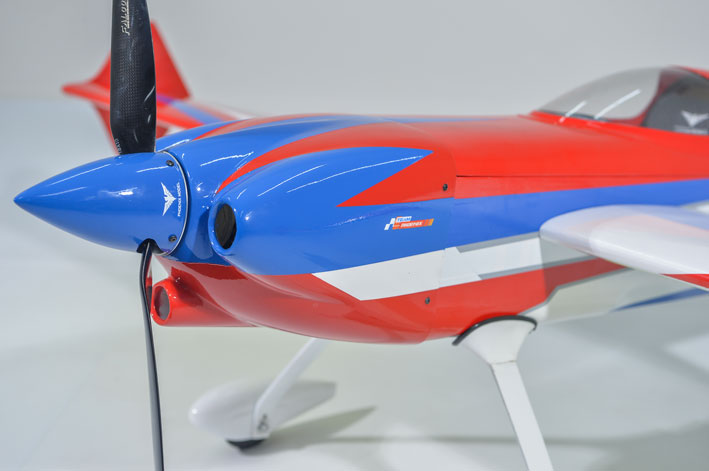

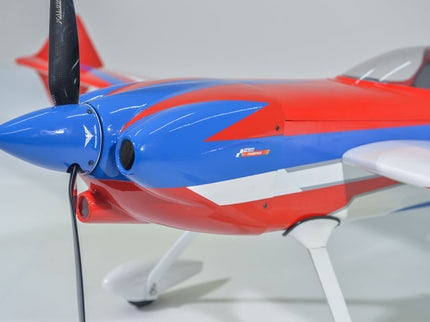

Factory-painted fibreglass cowling, control horns and a 70mm spinner complete the model’s striking appearance, while ball linkages and hexagonal metal pushrods ensure precise and reliable control response.

Powered by a 6S electric setup, the Phoenix Model Edge 540 V3 delivers exceptional thrust and performance, making it an ideal choice for pilots who enjoy modern aerobatics and advanced 3D flying.

Key Features

✔ 60" (1524mm) wingspan high-performance aerobatic aircraft
✔ Designed for electric power (6S setup)
✔ Capable of precision aerobatics and extreme 3D manoeuvres
✔ Lightweight balsa and plywood construction reinforced with composite materials
✔ Carbon fibre main landing gear and tail gear included
✔ Factory-painted fibreglass cowling and control horns

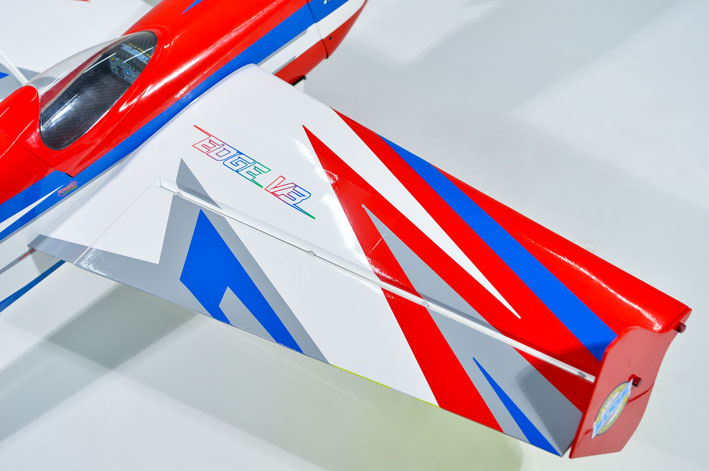

✔ Plug-in wings with Smart Lock system for quick assembly
✔ Wing Force support system for improved stability and rigidity

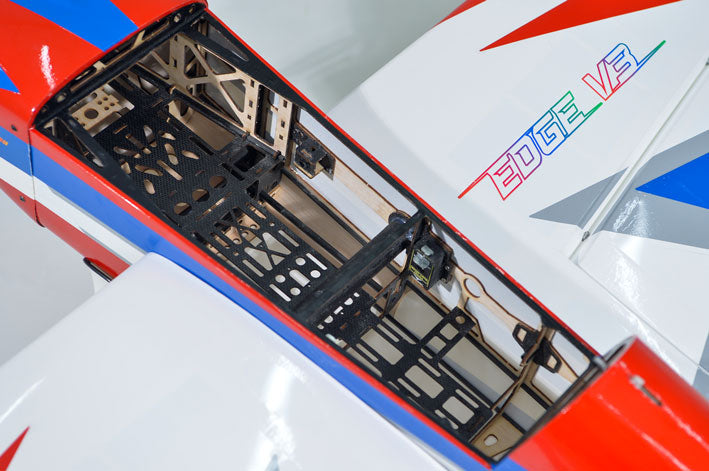

✔ Removable canopy for easy battery and radio access
✔ Ball link control linkages and metal pushrods included
✔ High-quality polyester covering for long-lasting colour durability
✔ Complete high-quality hardware package included

Perfect For

• Intermediate to advanced RC pilots

• 3D aerobatic flying

• Precision aerobatic manoeuvres

• Electric-powered aerobatic aircraft

• Pilots looking for a capable 60-inch 3D model

Specifications

• Wingspan: 1524mm (60 in)

• Length: 1533mm (60.3 in)

• Flying Weight: 3000 – 3200g

• Wing Area: 46 dm²

• Centre of Gravity: 105mm back from wing leading edge at fuselage

• Landing Gear

  • Carbon fibre main landing gear included

  • Tail gear included

• Spinner: 70mm spinner included

Recommended Power System

• Electric Motor: T-Motor AM600, Scorpion A-4220-540

• ESC: 116A class

• Battery: 6S LiPo 3700 – 4500mAh

• Propeller: 16x7E, 16×8E

Servo Requirements

• 2 × Aileron servos – metal gear high torque (approx. 16kg) Chaservo HV150S Recommended

• 1 × Elevator servo – metal gear high torque (approx. 16kg)Chaservo HV150S Recommended

• 1 × Rudder servo – metal gear (7–10kg) Chaservo HV150S Recommended

Control Throws

• Elevator

  • Low Rate: 8–10° (10–25% expo)

  • 3D Rate: 45–50° (55–65% expo)

• Aileron

  • Low Rate: 15–20° (40–45% expo)

  • 3D Rate: 38–40° (60–75% expo)

• Rudder

  • Low Rate: 20° (40–50% expo)

  • 3D Rate: 45–50° (60–80% expo)

Box Dimensions
1309 × 480 × 248mm

Product Summary

The Phoenix Model Edge 540 V3 60" ARF is a high-performance electric 3D aerobatic RC aircraft designed for precision and extreme manoeuvres. With carbon fibre landing gear, composite-reinforced construction and a powerful 6S setup, it delivers exceptional aerobatic performance for experienced RC pilots.
