Description

SPECIFICATIONS:
Dead band: 7μs
Working frequence: 1520μs / 50hz
Operating Speed (4.8V): 0.15sec/60°
Operating Speed (6V): 0.12sec/60°
Stall Torque (4.8V): 3.25kg.cm (45.14oz/in)
Stall Torque (6V):  3.95 kg-cm (54.87 oz/in)

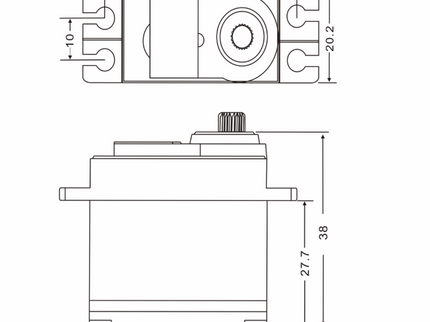

Dimensions: 40.5X20.3X38mm
Weight:  45.5 g (1.61oz)
Connector Wire Length: JR  265 mm

Read more

Product form

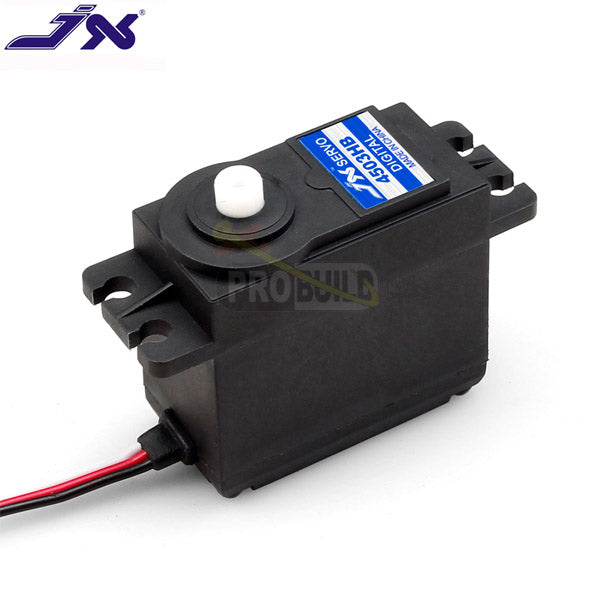

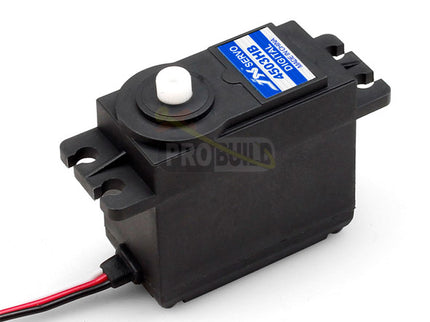

JX PS-4503HB 3.95KG 6V Servo

£7.99Incl. VAT

SKU: PS-4503HB

  • Official UK stockist

  • Fast, reliable Worldwide shipping

  • Trusted by pilots since 1993

    Share with your friends

    Description

    SPECIFICATIONS:
    Dead band: 7μs
    Working frequence: 1520μs / 50hz
    Operating Speed (4.8V): 0.15sec/60°
    Operating Speed (6V): 0.12sec/60°
    Stall Torque (4.8V): 3.25kg.cm (45.14oz/in)
    Stall Torque (6V):  3.95 kg-cm (54.87 oz/in)
    Dimensions: 40.5X20.3X38mm
    Weight:  45.5 g (1.61oz)
    Connector Wire Length: JR  265 mm
