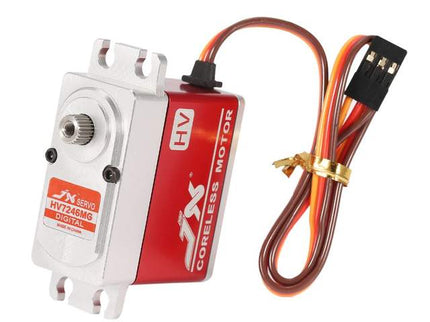

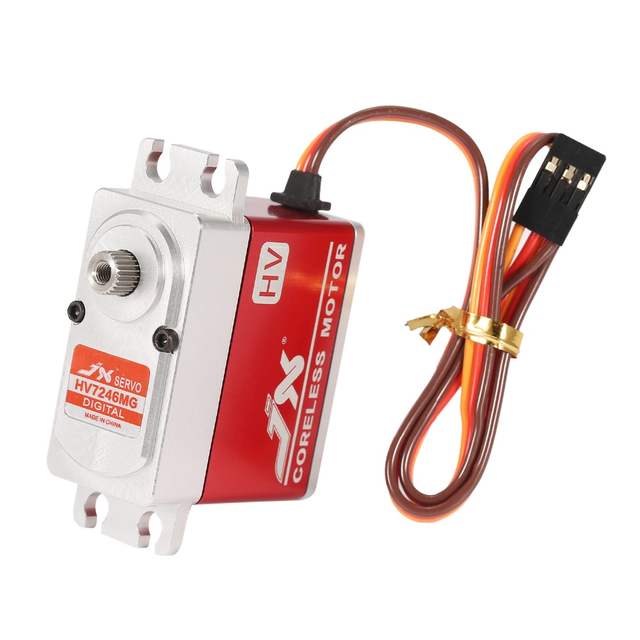

JX HV7246MG Features:
High Performance Digital High Voltage Coreless Standard Servo
High-Precision Metal Gears With Hard Anodising
Full CNC Machined Aluminium Case
Dual Bearing Support
JR Style Lead and Plug
25T Spline

Overview

The JX Line of High Voltage digital servos have been hand picked and tested by Probuild Aircraft Ltd for large scale aerobatic aircraft apilications.

Specifications:

Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (6V): 0.14sec/60°
Operating Speed (7.4V): 0.12sec/60°
Stall Torque (6V): 37.5 kg.cm
Stall Torque (7.4V): 46.9kg.cm
Dimensions: 40.5X20.5X36mm
Weight:  72 g
Connector Wire Length: JR  265 mm
Bearing: 2BB
