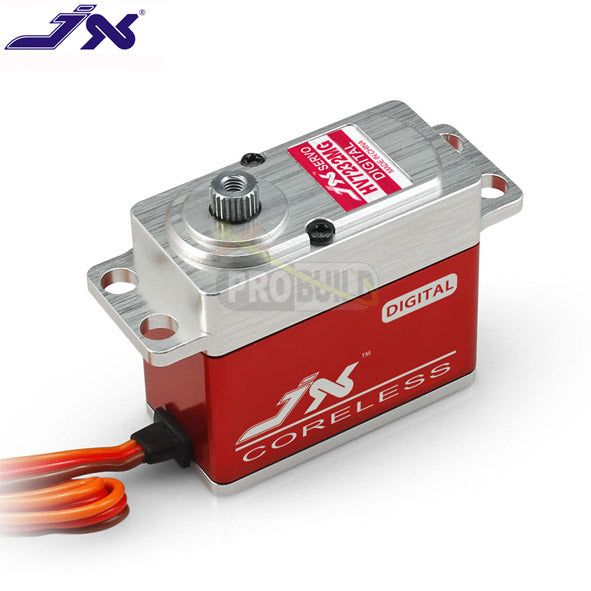

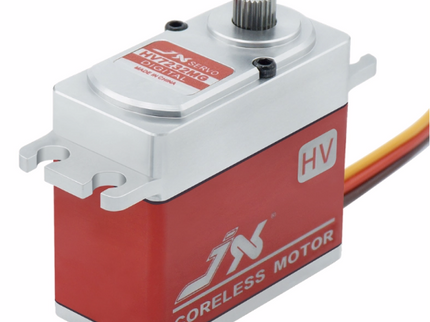

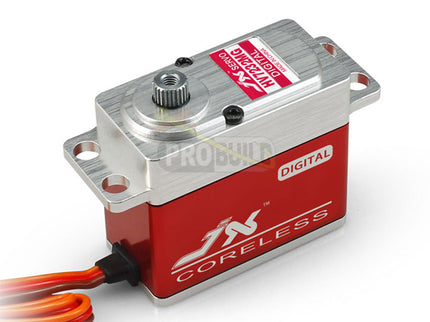

The JX HV7232MG is a premium high-voltage digital servo engineered for extreme performance in large-scale RC aircraft and demanding applications. Delivering an incredible 31.5kg/cm of torque at 8.4V, this servo provides the power, precision, and durability required for giant-scale aerobatics and high-load control surfaces.

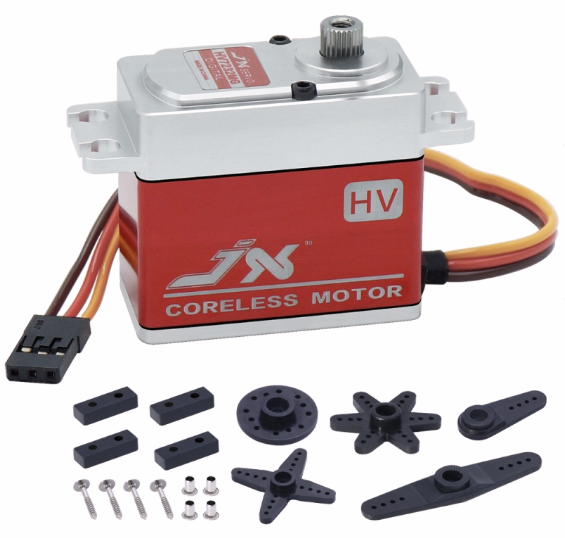

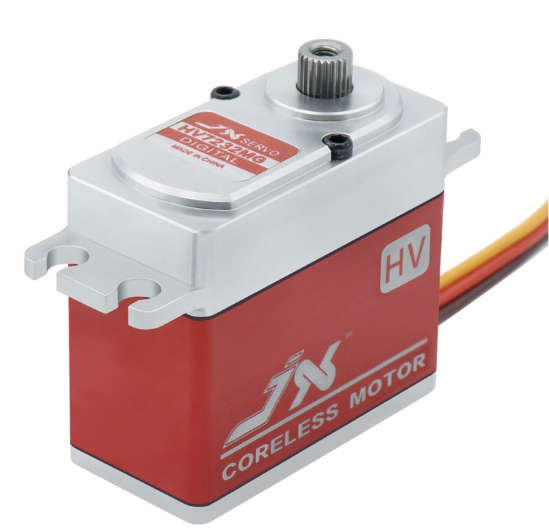

Built with hard-anodised Taiwan-made aluminium gears, a full CNC-machined aluminium case, and a coreless motor, the HV7232MG ensures exceptional strength, fast response, and excellent heat dissipation. Dual ball bearings and a 25T spline output shaft further enhance precision and reliability under heavy loads.

Carefully selected and tested by Probuild Aircraft Ltd for large-scale aerobatic aircraft, this servo is trusted by serious pilots who demand uncompromising performance.

Key Features

• High-performance digital high-voltage coreless servo

• Massive torque: 31.5kg/cm @ 8.4V

• Hard-anodised Taiwan-made aluminium metal gears

• Full CNC-machined aluminium case for rigidity & cooling

• Dual ball bearings for smooth, accurate movement

• Fast response: 0.09 sec/60° @ 8.4V

• 25T spline output for broad compatibility

• JR-style lead and plug

• Tested and approved by Probuild Aircraft Ltd for large-scale aerobatics

Perfect For

• Large-scale aerobatic aircraft (50cc, 70cc, 100cc+)

• Giant-scale 3D aircraft

• Large composite models

• High-stress surfaces (rudder, elevator, aileron)

• High-voltage receiver setups

• Any application requiring extreme torque & precision

Product Summary

The JX HV7232MG is a powerhouse high-voltage digital servo boasting exceptional torque, rapid response, and rugged construction. With its full aluminium case, premium metal gears, coreless motor, and precision engineering, it’s built to handle the most demanding large-scale RC aircraft applications with confidence.

Specifications

• Dead Band: 1µs

• Signal / Frequency: 1520µs / 330Hz

• Motor Type: Coreless motor

• Speed (6.0V): 0.12 sec/60°

• Speed (8.4V): 0.09 sec/60°

• Stall Torque (6.0V): 26.2kg/cm (363.83 oz/in)

• Stall Torque (8.4V): 31.5kg/cm (437.43 oz/in)

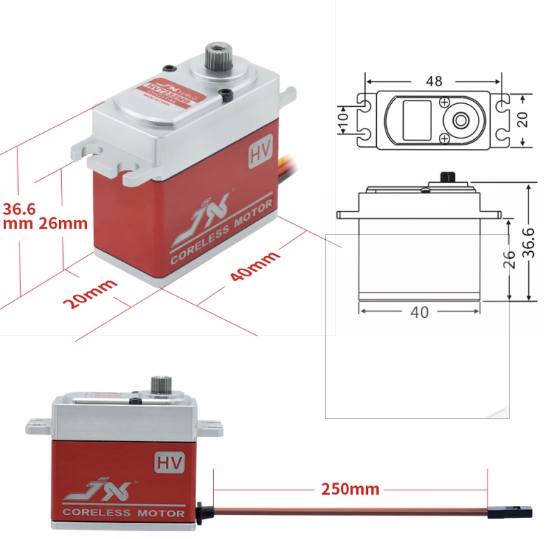

• Dimensions: 40.5 × 20.5 × 36mm (1.59 × 0.80 × 1.43 in)

• Weight: 72g (2.54 oz)

• Connector Wire Length: JR 265mm (10.43 in)

• Bearings: 2× Ball Bearings

• Spline / Tooth Count: 25T
