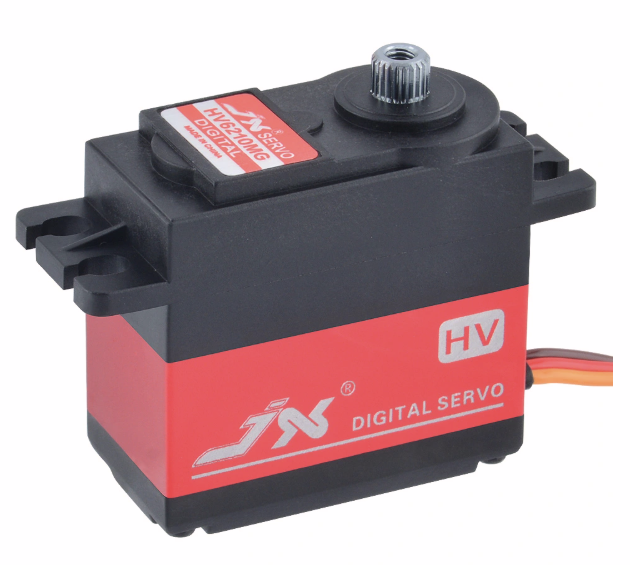

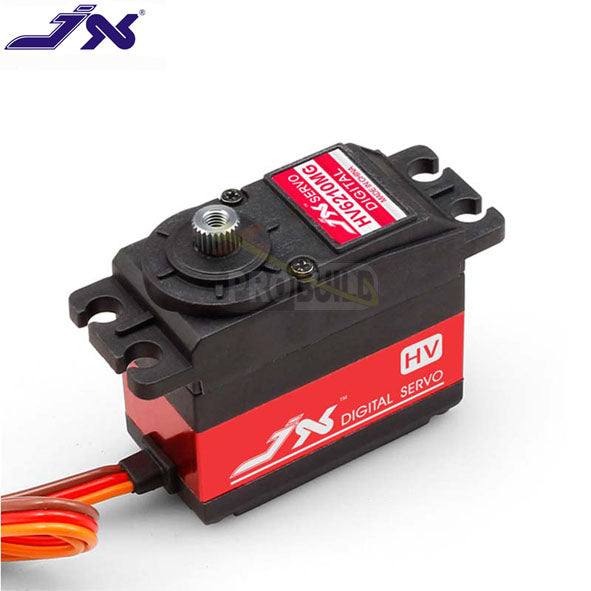

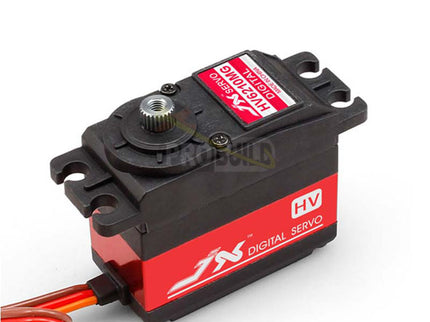

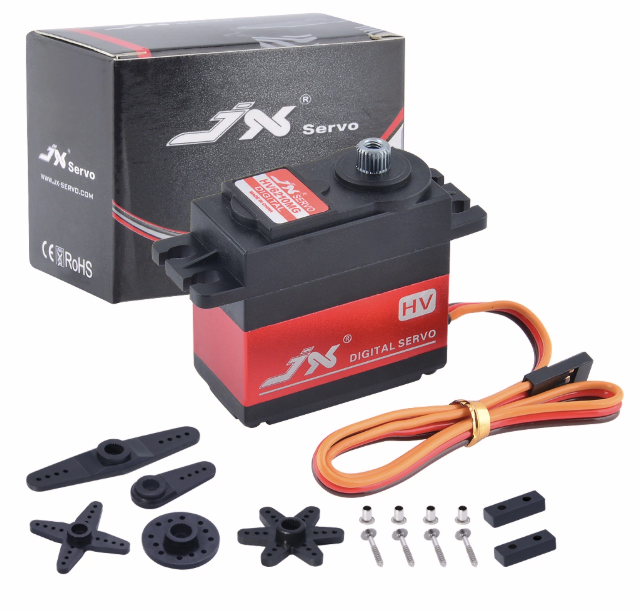

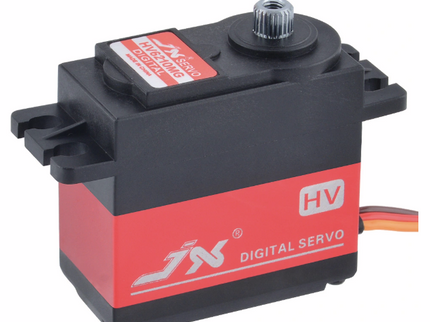

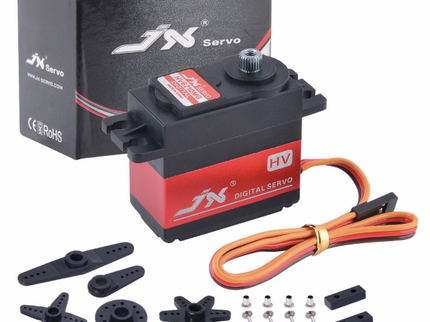

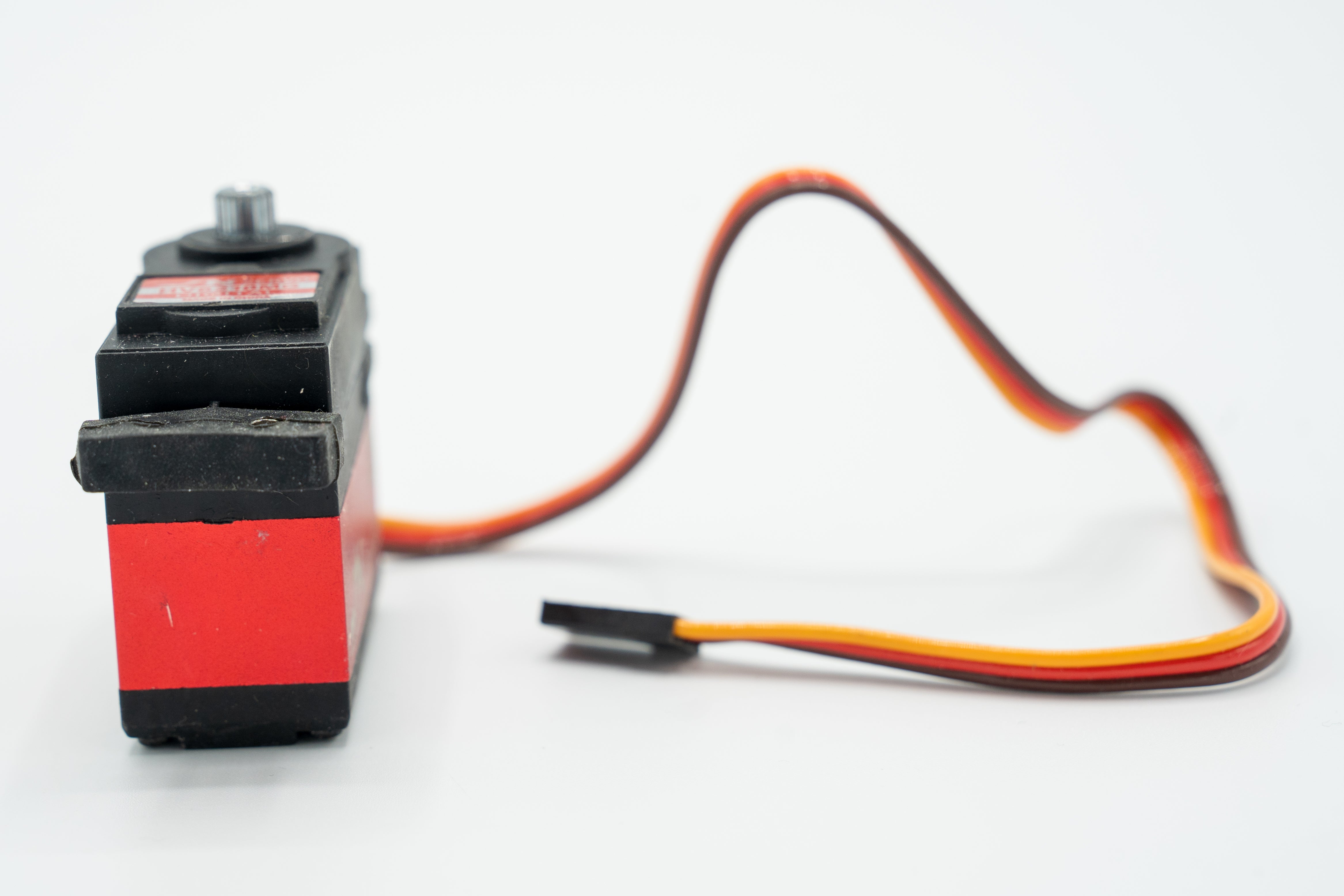

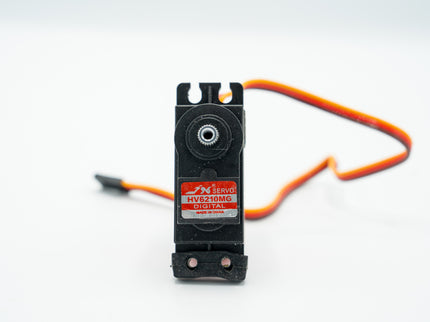

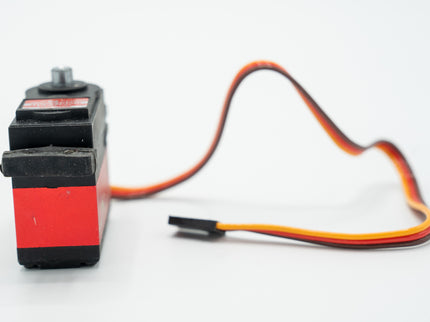

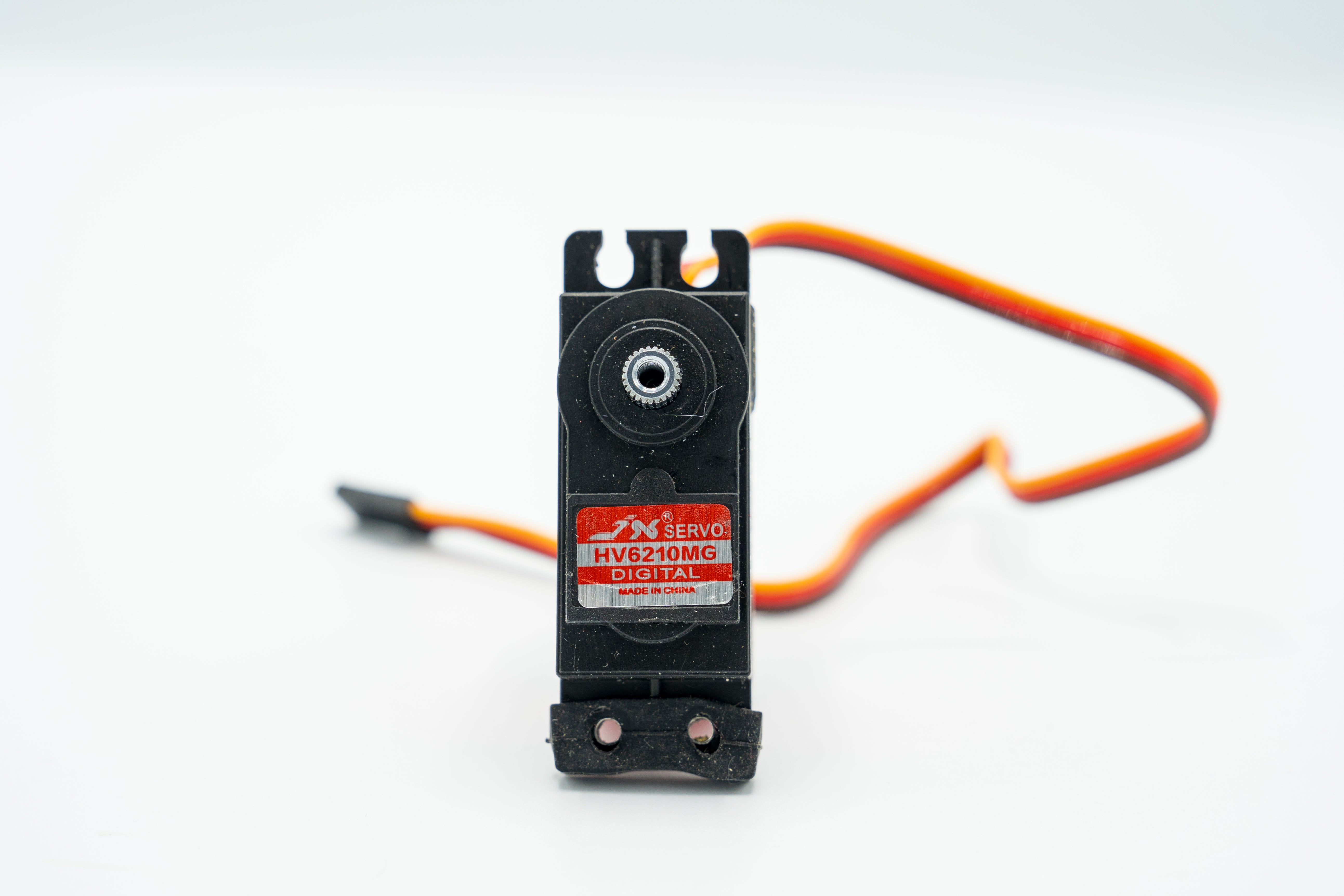

The JX Servo HV6210MG is a high-performance high-voltage digital standard servo built for serious RC pilots and enthusiasts who demand exceptional strength, durability and precision. Producing up to 11.22kg.cm of torque at 7.4V, this powerful servo is ideal for large RC aircraft, high-performance cars, boats and other demanding applications requiring dependable high-torque performance.

Designed for long service life, the HV6210MG features hard-anodised Taiwan-made aluminium gears, a CNC-machined aluminium centre case for improved rigidity and heat dissipation, and dual ball bearings for smooth, reliable operation under heavy loads. A high-quality core motor combined with 330Hz digital control delivers fast response, excellent centring accuracy and precise movement throughout its operating range.

With its standard-size footprint and 25T output spline, the HV6210MG is easy to install and compatible with a wide range of RC models requiring a robust high-voltage servo.

Key Features

• High-performance digital high-voltage standard servo

• Operates on 6.0V–7.4V power systems

• Produces up to 11.22kg.cm torque at 7.4V

• Fast 0.13 sec/60° transit speed at 7.4V

• Hard-anodised Taiwan-made aluminium gears

• CNC-machined aluminium middle case for strength and improved cooling

• Dual ball bearings (2BB) for smooth operation

• High-quality core motor
• High-resolution 330Hz digital control

• Standard-size case for straightforward installation

• 25T output spline for wide compatibility

Perfect For

• Large RC aircraft

• Composite model aircraft

• Sport and aerobatic aircraft

• 3D aircraft

• RC helicopters

• High-performance RC cars and trucks

• RC boats

• Any application requiring a powerful standard-size servo

Product Summary

The JX Servo HV6210MG combines high torque, rapid response and rugged construction in a dependable high-voltage standard servo. Featuring premium aluminium gears, a CNC aluminium case, dual ball bearings and precise digital control, it is an excellent choice for demanding RC aircraft and other high-performance RC models where reliability is essential.

Specifications

• Model: JX Servo HV6210MG

• Type: Digital High Voltage Standard Servo

• Operating Voltage: 6.0V–7.4V

• Dead Band: 2μs

• Signal Frequency: 1520μs / 330Hz

• Motor Type: Core Motor

• Operating Speed (6.0V): 0.15 sec/60°

• Operating Speed (7.4V): 0.13 sec/60°

• Stall Torque (6.0V): 9.35kg.cm (129.88oz/in)

• Stall Torque (7.4V): 11.22kg.cm (155.5oz/in)

• Gear Material: Hard-Anodised Taiwan-Made Aluminium

• Bearings: 2 Ball Bearings (2BB)

• Output Spline: 25T

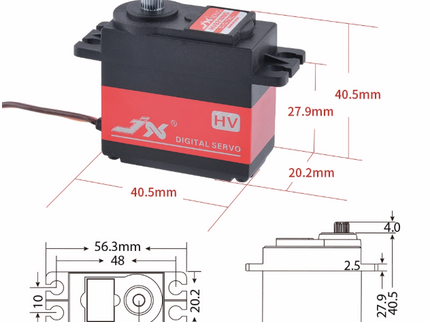

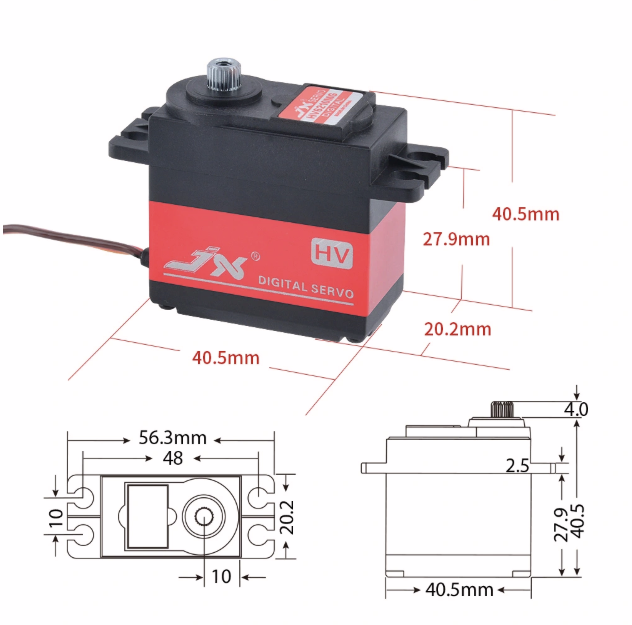

• Dimensions: 40.5 × 20.2 × 38mm

• Weight: 62g

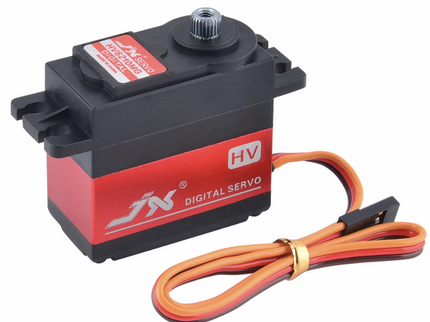

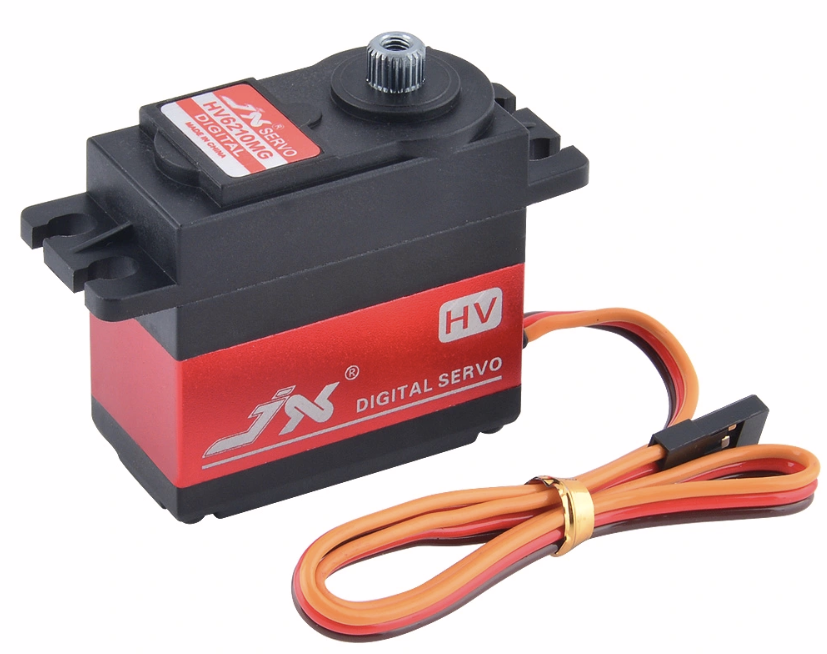

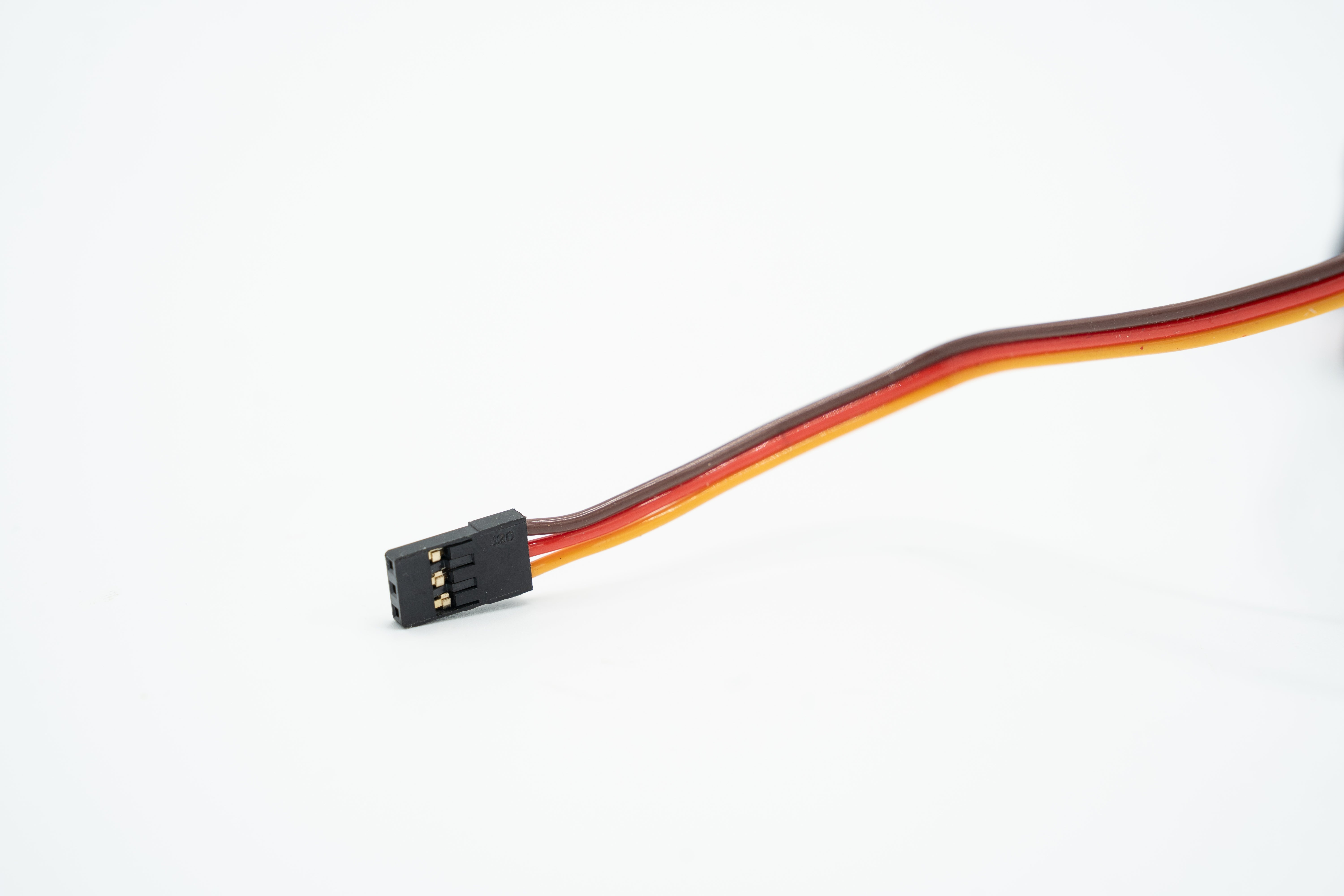

• Connector: JR

• Lead Length: 265mm
