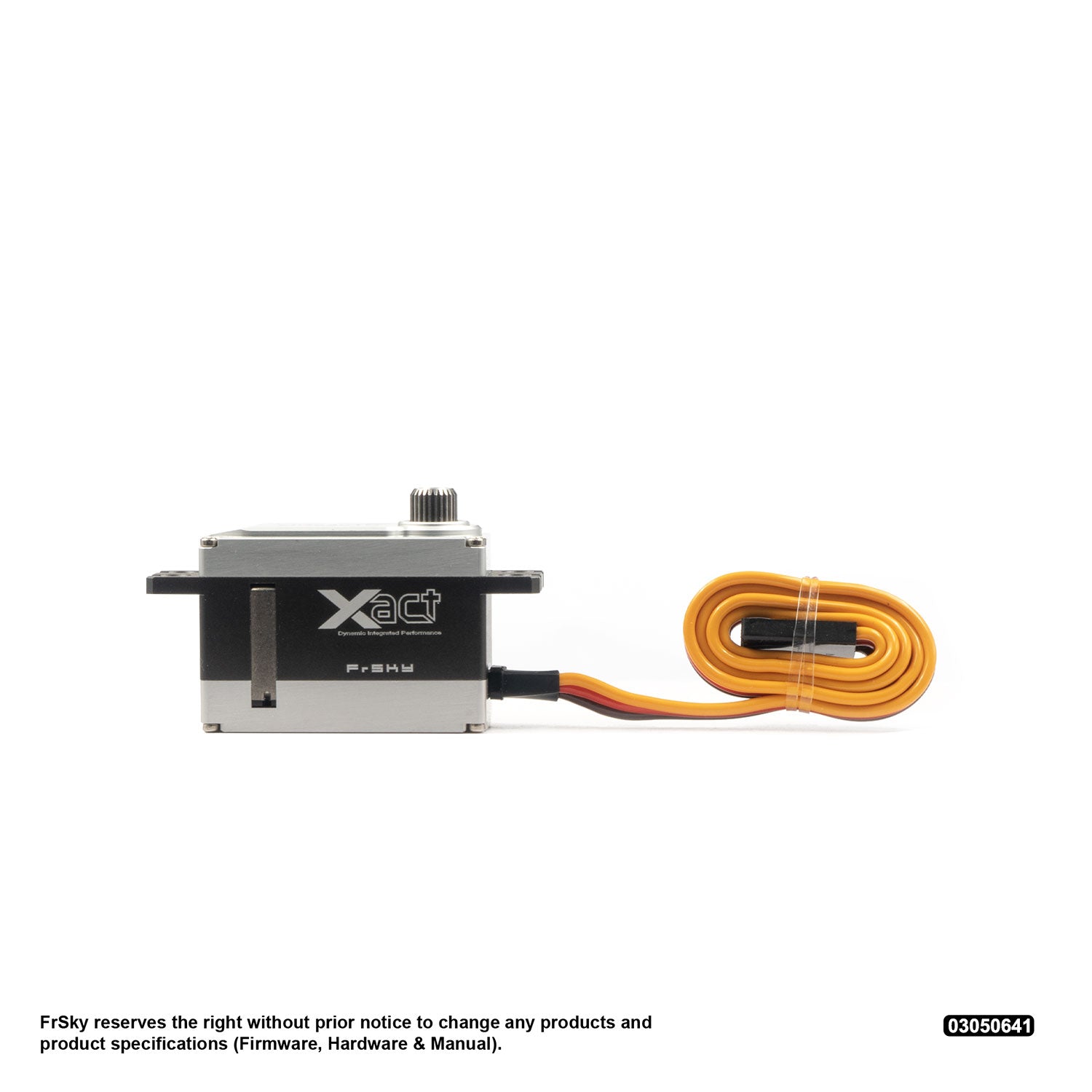

The FrSky Xact MD5301H Coreless MIDI HV Servo is engineered for pilots demanding exceptional torque, ultra-fast response and absolute reliability. Featuring a powerful coreless motor, hardened metal gears and a fully CNC-machined aluminium case, the MD5301H is ideal for high-performance RC aircraft, helicopters, jets and large-scale models.

Designed for operation up to 8.4V, the MD5301H delivers an impressive 27kg.cm of torque while maintaining lightning-fast transit speeds of just 0.06 sec/60°. The integrated Hall sensor and dual precision ball bearings provide outstanding centring accuracy, smooth movement and long-term durability.

Supporting FrSky's advanced FBUS (Port 2.0) protocol alongside SBUS and PWM operation, the servo can transmit real-time telemetry data including voltage, current consumption and temperature when connected to compatible FrSky receivers or flight controllers.

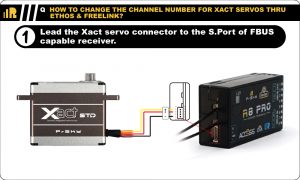

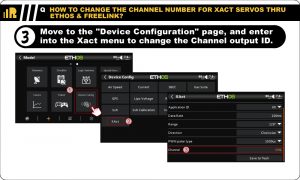

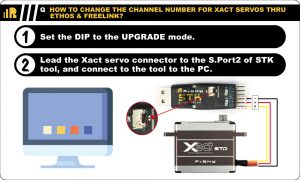

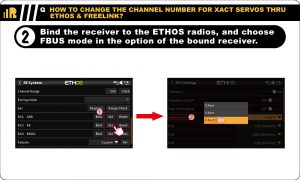

Servo travel can be configured to 90°, 120° or 180° through the FrSky ETHOS Xact Configuration Tool or Freelink App, providing maximum flexibility for a wide variety of model applications.

Key Features

• Powerful coreless motor design

• High-voltage operation from 4.8V to 8.4V

• Massive 27kg.cm torque output at 8.4V

• Ultra-fast 0.06 sec/60° response speed

• Full CNC-machined aluminium protective case

• Heavy-duty metal gear train

• Hall sensor technology for superior precision

• Dual precision ball bearings

• Supports FBUS (Port 2.0), SBUS and PWM protocols

• Real-time telemetry feedback capability

• Configurable servo travel: 90°, 120° and 180°

• Over-current protection and monitoring

• Over-temperature protection and monitoring

• User-updatable firmware

• Designed for demanding RC aircraft applications

Perfect For

• Large Scale RC Aircraft

• Aerobatic Aircraft

• IMAC Models

• Giant Scale Aircraft

• EDF Jets

• Turbine Jets

• RC Helicopters

• Scale Aircraft

• Warbirds

• High-load Control Surface Applications

• Rudder Installations

• Elevator Systems

Product Summary

The FrSky MD5301H is a premium MIDI-size high-voltage servo offering exceptional performance with up to 27kg.cm torque and ultra-fast 0.06 sec/60° speed at 8.4V. Featuring a coreless motor, metal gears, Hall sensor technology and FBUS telemetry support, it provides the precision, strength and reliability required by serious RC pilots.

Specifications

• Model: MD5301H

• Series: FrSky Xact 5300

• Servo Type: MIDI High Voltage Digital Servo

• Motor Type: Coreless

• Gear Type: Metal Gear

• Sensor Type: Hall Sensor

• Bearing Type: Dual Precision Ball Bearings

• Operating Voltage Range: 4.8V – 8.4V

• Protocols: FBUS (Port 2.0), SBUS, PWM

• Servo Horn Spline: Φ6 25T

• Refresh Rate: 1520μs/333Hz | 760μs/700Hz

• Firmware: User Updatable

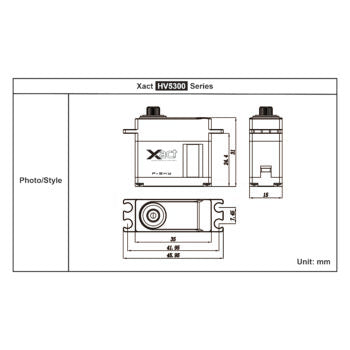

Dimensions & Weight

• Dimensions: 35.5 × 15 × 25.3mm

• Weight: 38.3g

Performance

• At 6.0V

  • Torque: 20kg.cm (277.7oz-in)

  • Speed: 0.10 sec/60°

  • Stall Current: 2.7A

• At 7.4V

  • Torque: 23kg.cm (319.4oz-in)

  • Speed: 0.08 sec/60°

  • Stall Current: 3.5A

• At 8.4V

  • Torque: 27kg.cm (374.9oz-in)

  • Speed: 0.06 sec/60°

  • Stall Current: 3.9A
