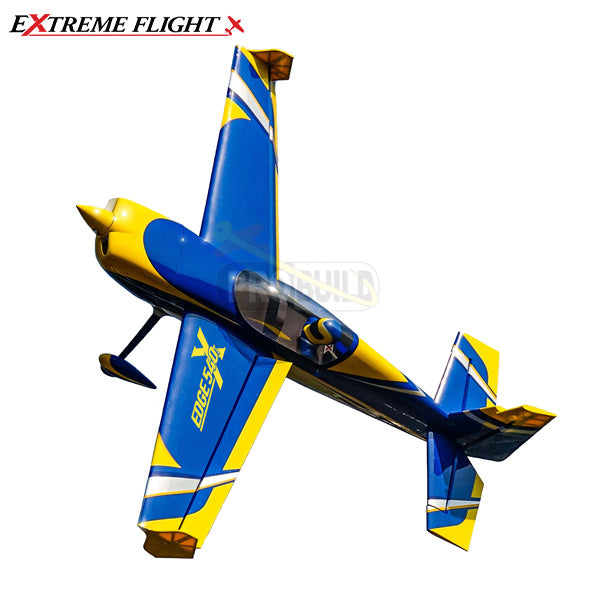

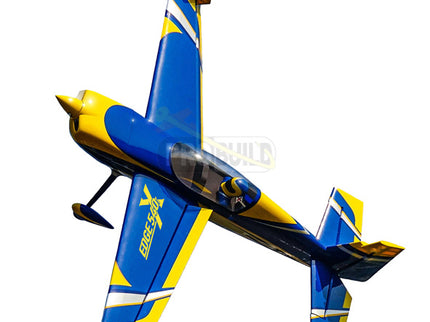

The Extreme Flight 104" Edge 540T is the ultimate giant-scale aerobatic RC aircraft, designed for 3D flying, XA routines, and low-level precision. With a lightweight feel and predictable, friendly handling, the Edge 540T is perfect for pilots seeking confidence from the very first flight. Its famous Edge post-stall characteristics make aggressive manoeuvres feel controlled and fun, while the latest Extreme Flight freestyle aerodynamic package ensures exceptional roll rates, stability, and responsiveness.

Built with competition-level construction and carbon-reinforced components, this aircraft combines strength, durability, and minimal weight, making it one of the most capable 120cc giant-scale aerobatic models on the market.

Key Features

• ✅ CNC machined quick-attachment wing, stab, and canopy locking system

• ✅ Highly prefabricated, pre-hinged and gap-sealed surfaces

• ✅ Double carbon wing and stab tubes, carbon spars, fuse longerons, and reinforced formers and trays

• ✅ Genuine Ultracote covering in multiple colour schemes

• ✅ Competition-grade hardware included, ready for assembly and flight

• ✅ Designed for 120cc engines including GP123cc, Desert Aircraft DA 120cc, Blazing Star DA120 stand-off

Specifications

• Wingspan: 104” (2642 mm)

• Length: 103” (2616 mm)

• Wing Area: 1897 sq. in.

• Weight: 26–28 lbs (11.8–12.7 kg)

• Spinner: 5”

• Centre of Gravity: Preferred CG is at the centre of the wing tube

Control Surface Settings (Recommended)

Power System Options

• Engines: GP123cc, Desert Aircraft DA 120cc

• Blazing Star DA120 stand-off mount

• Fuel Tank: FlowMaster 34 oz

• Header Drop: 70mm

Radio & Servos

• Radio: Modern system with channel mixing

• Servos: 7 × high torque metal gear digital (Savox SB2290SG, JR8911, MKS HBL380, MKS HBL599)

• Throttle Servo: MKS HV1250

Servo Arms:

• 4 × 1.5” single (Ailerons, tapped 3mm)

• 2 × 2” single (Elevators, tapped 3mm)

• 1 × 2” single (Push-Pull Rudder) OR 1 × 4” double (Pull-Pull Rudder)

Servo Extensions:

• 2 × 24” (outboard Ailerons)

• 3 × 48” (Elevators & Push-Pull Rudder)

• 1 × 24” (Throttle)

Covering Options (Ultracote)

Blue Scheme:

• Cub Yellow #30 / #HANU884

• Cadmium Yellow #33 / Bright Yellow #HANU872

• Blue #50 / Deep Blue #HANU873

• White #10 / #HANU870

• Dark Blue #52 / Midnight Blue #HANU885

• Silver #91 / #HANU881

Red Scheme:

• Ferrari Red #23 / True Red #HANU866

• Red #20 / Deep Red #HANU871

• White #10 / #HANU870

• Pearl Charcoal #77 / #HANU846

• Silver #91 / #HANU881

• Black #71 / #HANU874
