Robust. Precise. Powerful

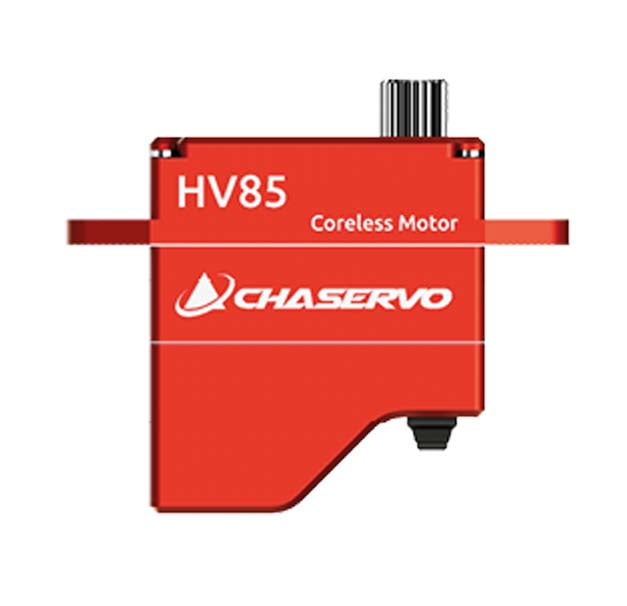

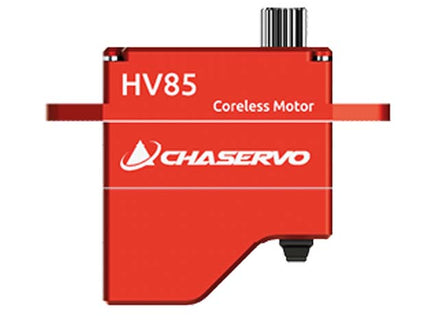

The Chaservo HV85 is a powerful and precise HV servo that is characterized by its compact design and high performance. It is ideal for a variety of modeling applications, including RC airplanes, gliders, powered aircraft and other models that require high performance and precision in a small package.

The Chaservo HV85 is made of high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life.

The Chaservo HV85 is made from high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life.

Specifications

Dimensions: 0.95 x 0.33 x 1.04 in (24 x 8.5 x 26.5 mm

Weight: 0.49 oz (14 g)

Rated Voltage: DC 7.4V

Voltage Range: DC 3.3 – 9.0V

Output Shaft Spline: 15T, 4mm

Position sensor: Potentiometer

Motor:  Coreless DC

Working Frequency: 1520µs/333KHz

Pulse Range: 900µs-2100µs

Programmable: Yes

Case Material: Aluminium

Gear Set Material: metal gears

Holding Torque
Holding Torque @ 6.0V	99.99 oz·in (7.2 kg·cm)
Holding Torque @ 7.4V	124.98 oz·in (9.0 kg·cm)
Holding Torque @ 8.4V	136.10 oz·in (9.8 kg·cm)

Output Torque
Output Torque @ 6.0V	90.27 oz·in (6.5 kg·cm)
Output Torque @ 7.4V	8.2 kg·cm
Output Torque @ 8.4V	123.59 oz·in (8.9 kg·cm)

No-load Speed
No-load Speed @ 6.0V	0.16sec/60°
No-load Speed @ 7.4V	0.12sec/60°
No-load Speed @ 8.4V	0.11sec/60°

max. Current
max. Current @ 6.0V	0.86 A
max. Current @ 7.4V	1.08 A
max. Current @ 8.4V	1.35 A

Technische Daten:
CAD-Daten (Vertikal):
CAD-Daten (Horizontal):
