The ultimate HV - standard servo With 2" 7075 arm incl.

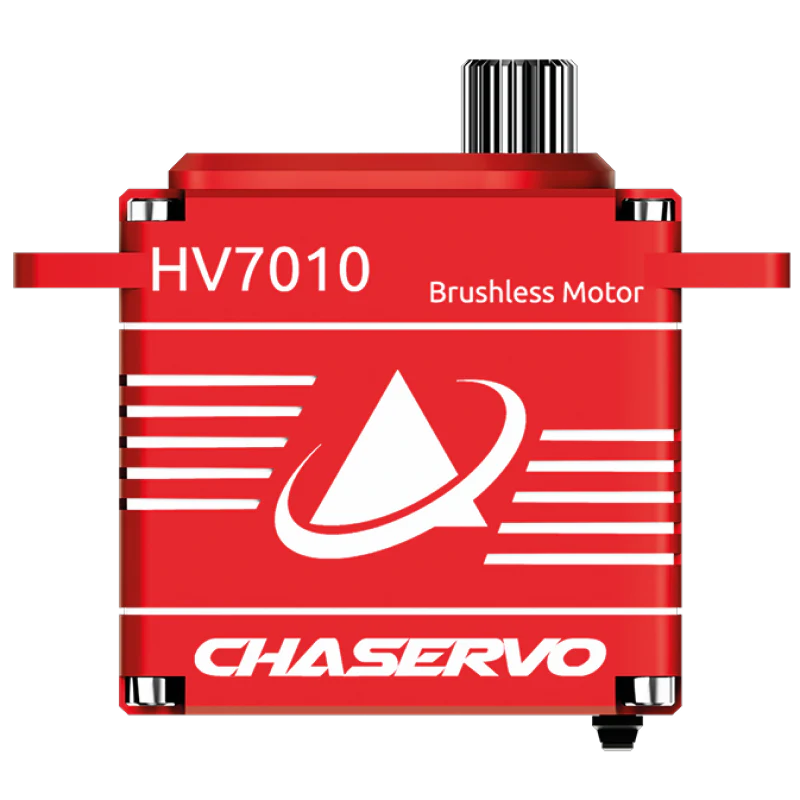

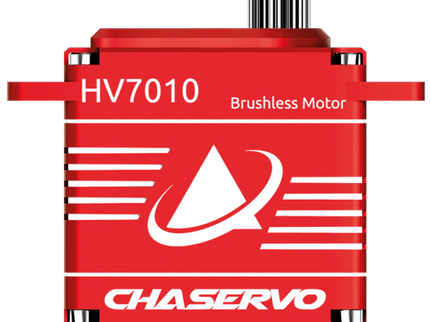

The Chaservo HV7010 is a high-performance servo characterized by its high power and speed. It is ideal for a variety of modelling applications, including RC airplanes, gliders, powered aircraft and other models that require high performance and precision in a large package.

The Chaservo HV7010 is made of high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life.

The Chaservo HV7010 is suitable for a wide range of applications. It is ideal for RC airplanes, gliders, powered aircraft and other models that require high performance and precision in a large package. The high power and speed also make it suitable for 3D aerobatic models and large jets.

• High performance
• 4-pole brushless motor

• IP65 protection

• Precise design
• Robust design
• Versatile application possibilities
• 8mm T25 output drive
• Six ball bearings
• Hardened steel gearbox
• PWM cable routed 90° out of the housing cover
• Contactless Hall sensor

Specifications

Dimensions: 1.57 x 0.78 x 1.57 in (40 x 20 x 40 mm)

Weight: 3.06 oz (87 g)

Rated Voltage: DC 7.4V

Voltage Range: DC 6.0 – 8.4V

Output Shaft Spline: 25T, 0.315 in (8 mm)

Position sensor: Contactless / Hall sensor

Motor: 4 Pole Brushless

Ball Bearing: 6 x Ball Bearing

Working Frequency: 1520µs/333Hz

Pulse Range: 500 μs – 2500 μs

Programmable: Yes

Holding Torque

Holding Torque @ 6.0V: 694.36 oz·in (50.0 kg·cm)

Holding Torque @ 7.4V: 833.24 oz·in (60 kg·cm)

Holding Torque @ 8.4V: 972.11 oz·in (70 kg·cm)

No-load Speed

No-load Speed @ 6.0V: 0.15sec/60°

No-load Speed @ 7.4V: 0.12sec/60°

No-load Speed @ 8.4V: 0.10sec/60°

Output Torque

Output Torque @ 6.0V: 624.93 oz·in (45 kg·cm)

Output Torque @ 7.4V: 54 kg·cm

Output Torque @ 8.4V: 874.90 oz·in (63.0 kg·cm)

max. Current:

max. Current @ 6.0V: 6.25 A

max. Current @ 7.4V: 7.52 A

max. Current @ 8.4V: 8.38 A

Technical data:
CAD data (vertical):
