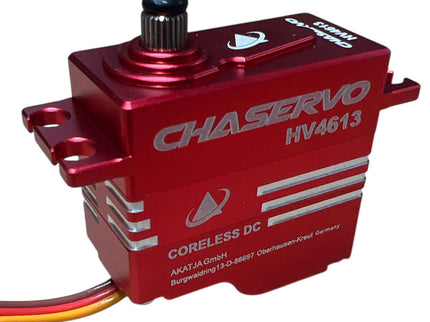

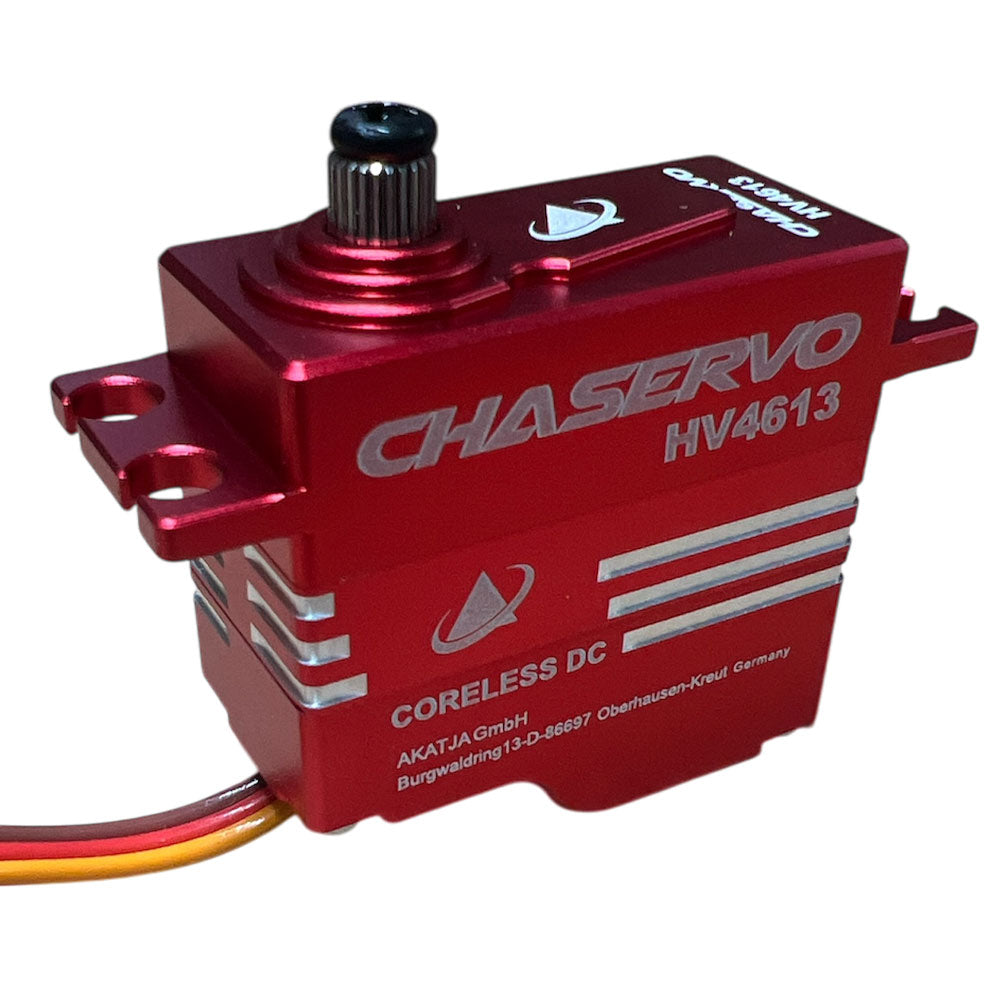

The CHASERVO HV4613 is the ultimate servo for those who demand the best in precision, power, and reliability. Whether you're a model aircraft enthusiast, an RC car hobbyist, or working in robotics, this servo is built to exceed your expectations.

With exceptional torque and excellent performance across a wide voltage range (6V to 8.4V), the HV4613 guarantees precise, smooth movements in every application. Its robust metal gears are designed to withstand heavy loads, ensuring long-lasting durability even under continuous use.

The high-quality aluminium housing not only provides extra stability but also promotes efficient heat dissipation, keeping the servo cool under pressure. Ideal for a variety of demanding model building projects – from airplanes and boats to cars – the HV4613 delivers fine resolution and high holding torque for the ultimate in control and performance.

Perfect for those who never compromise on quality.

Specifications for CHASERVO HV4613:

• Brand: Chaservo
• Weight: 81g
• Dimensions: 40.5 x 20 x 40 mm
• Rated Voltage: DC 7.4V
• Voltage Range: DC 4.8 – 8.4V
• Output Shaft Spline: 25T, 0.236 in (6 mm)
• Ball Bearing: 2 x Ball Bearings
• Position Sensor: Potentiometer
• Motor: Coreless DC
• Working Frequency: 1520µs/333Hz
• Pulse Range: 500 μs – 2500 μs
• Programmable: Yes

Material:

• Case Material: Aluminium
• Gear Set Material: Metal gears

Torque and Speed:

• Holding Torque @ 4.8V: 32 kg·cm
• Holding Torque @ 6.0V: 40.0 kg·cm (555.49 oz·in)
• Holding Torque @ 7.4V: 46 kg·cm
• Holding Torque @ 8.4V: 50 kg·cm
• Output Torque @ 4.8V: 20 kg·cm
• Output Torque @ 6.0V: 25 kg·cm
• Output Torque @ 7.4V: 30 kg·cm
• Output Torque @ 8.4V: 33 kg·cm

No-Load Speed:

• No-load Speed @ 4.8V: 0.20 sec/60°
• No-load Speed @ 6.0V: 0.16 sec/60°
• No-load Speed @ 7.4V: 0.13 sec/60°
• No-load Speed @ 8.4V: 0.12 sec/60°

Max Current:

• Max Current @ 6.0V: 4.85 A
• Max Current @ 7.4V: 5.62 A
• Max Current @ 8.4V: 6.45 A

With this comprehensive set of specs, the CHASERVO HV4613 delivers not only outstanding performance but also reliability and precision in every application. Whether for high-torque or fast-action needs, this servo has the power and speed to keep your project running smoothly.
