Description
Designed for greatness

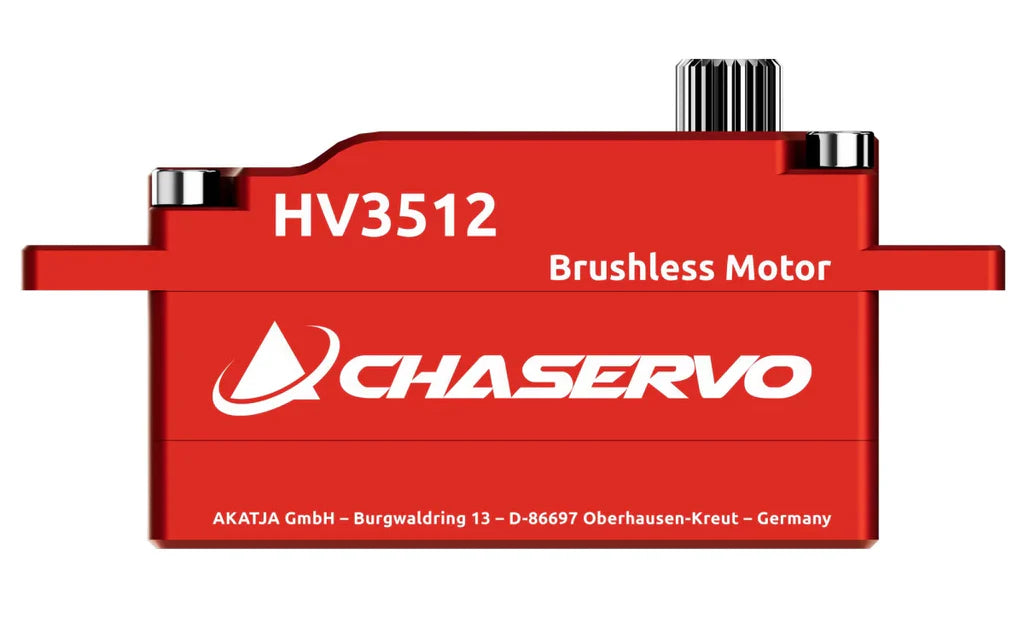

The Chaservo HV3512 Low Profile Servo is a high-performance servo in the 20mm class.It is characterized by its low height of only 18.7 mm and its low weight of only 55 g. This makes it an ideal choice for models where weight and size are important.
The servo is made of high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life. The brushless motor delivers high torque and precision.
The Chaservo HV3512 Low Profile Servo offers a holding force of up to 400 Ncm at 8.4 V. This makes it possible to move even heavy loads effortlessly. The rotation speed is 0.08 seconds at 8.4 V.
The servo is available in two different installation variants. It can be mounted either vertically or horizontally. This offers you maximum flexibility during installation.
Advantages of the Chaservo HV3512 Low Profile Servo
- High performance
- Precise design
- Robust design
- Low weight
- Minimum heigh
- Two installation variants
Specifications
Dimensions: 1.59 in x 0.79 in x 0.91 in (40.5 x 20 x 23.1 mm)
Weight: 1.98 oz (56 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 4.0 – 9.0V
Output Shaft Spline: 25T, 0.236 in (6 mm)
Position sensor: Potentiometer
Motor: 4 Pole Brushless
Ball Bearing: 2 x Ball Bearing
Working Frequency: 1520µs/333Hz
Pulse Range: 500 μs – 2500 μs
Programmable: Yes
Case Material: Aluminium
Gear Set Material: Metal gear
Holding Torque
Holding Torque @ 6.0V: 416.62 oz·in (30.0 kg·cm)
Holding Torque @ 7.4V: 486.05 oz·in (35.0 kg·cm)
Holding Torque @ 8.4V: 555.49 oz·in (40.0 kg·cm)
No-load Speed
No-load Speed @ 6.0V: 0.14sec/60°
No-load Speed @ 7.4V: 0.12sec/60°
No-load Speed @ 8.4V: 0.11sec/60°
Output Torque
Output Torque @ 6.0V: 370.79 oz·in (26.7 kg·cm)
Output Torque @ 7.4V: 30.2 kg·cm
Output Torque @ 8.4V: 486.05 oz·in (35.0 kg·cm)
max. Current
max. Current @ 6.0V: 4.0 A
max. Current @ 7.4V: 4.8 A
max. Current @ 8.4V: 5.8 A

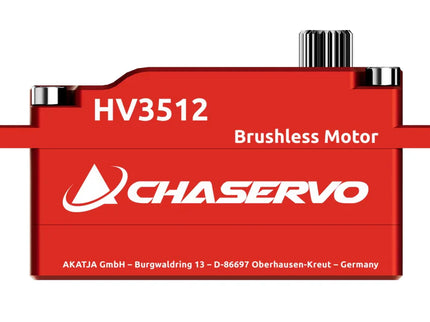

CHASERVO HV3512 (40KG 8.4V) Servo
