High standard.

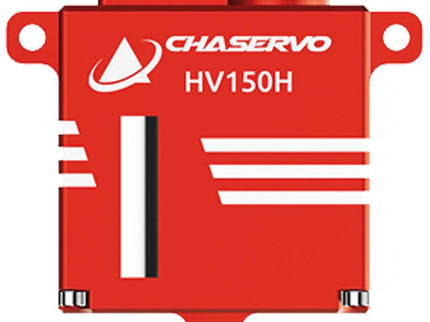

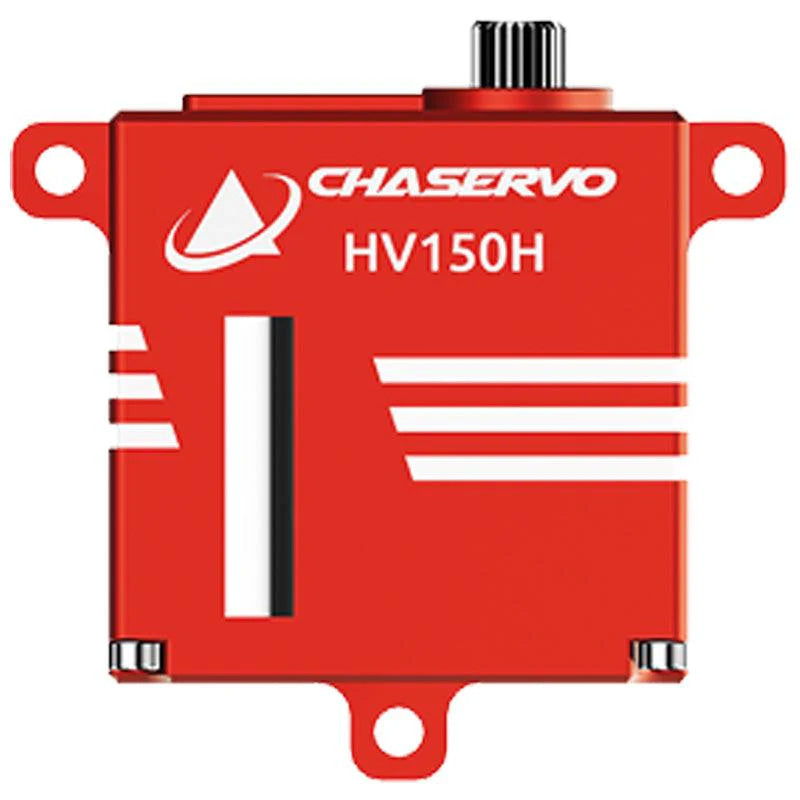

The Chaservo HV150 series has a holding force of 30 kg and an operating torque of 24 kg. Thanks to its slim design and low weight, this high-voltage servo is able to replace numerous standard servos. Perfect for 60-67" aerobatic models as well as Jet enthusiasts looking for a premium mini servo.

Specifications

Dimensions: 35.5 x 15 x 35.5 mm

Weight: 1.79 oz (51 g)

Rated Voltage: DC 7.4V

Voltage Range: DC 4.8 – 8.4V

Output Shaft Spline: 25T, 0.236 in (6 mm)

Position sensor: Potentiometer

Motor: 4 Pole Brushless

Ball Bearing: 2 x Ball Bearing

Working Frequency: 1520µs/333Hz

Pulse Range: 500 μs – 2500 μs

Programmable: Yes

Case Material: Aluminium

Gear Set Material: Metal gear

Holding Torque

Holding Torque @ 4.8V: 277.74 oz·in (20.0 kg·cm)

Holding Torque @ 6.0V: 47.18 oz·in (25.0 kg·cm)

Holding Torque @ 7.4V: 416.62 oz·in (30.0 kg·cm

Holding Torque @ 8.4V: 458.28 oz·in (33.0 kg·cm)

No-load Speed

No-load Speed @ 4.8V: 0.15sec/60°

No-load Speed @ 6.0V: 0.12sec/60°

No-load Speed @ 7.4V: 0.10sec/60°

No-load Speed @ 8.4V: 0.09sec/60°

Output Torque

Output Torque @ 4.8V: 166.64 oz·in (12.0 kg·cm)

Output Torque @ 6.0V: 208.31 oz·in (15.0 kg·cm)

Output Torque @ 7.4V: 249.97 oz·in (18.0 kg·cm

Output Torque @ 8.4V: 277.74 oz·in (20.0 kg·cm)
