Description
Compact and powerful

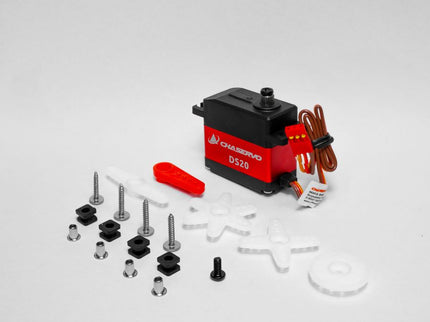

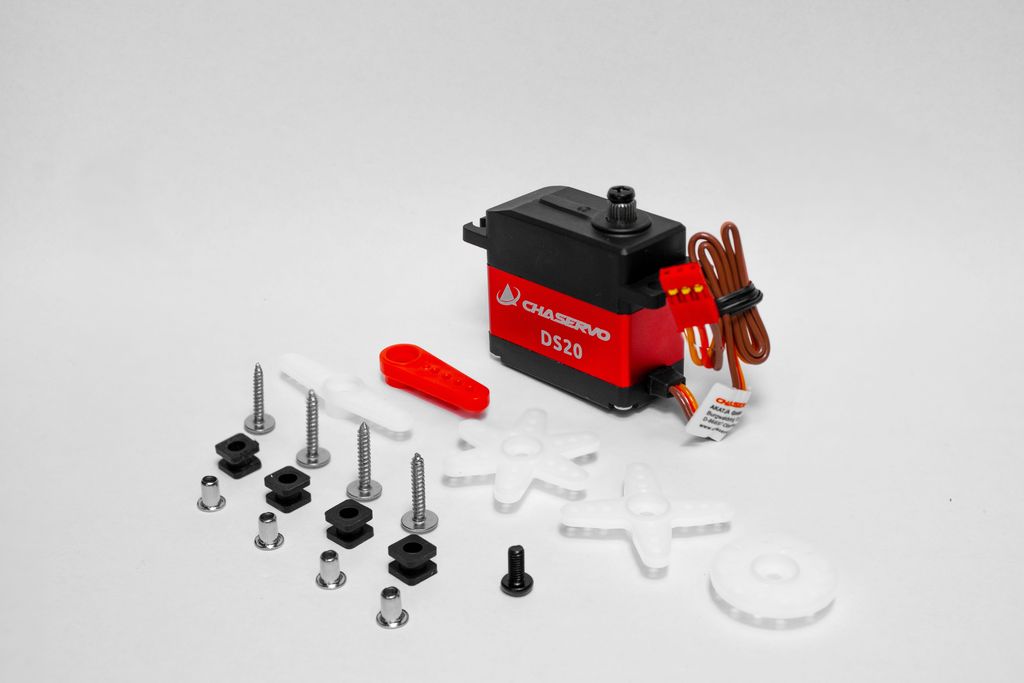

The Chaservo DS20 is made from high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life.
The holding force of up to 26 kg at 8.4 V makes it possible to move even heavy loads effortlessly. The turning speed of 0.08 seconds at 8.4 V is also very good.
The Chaservo DS20 is suitable for a wide range of applications. It is ideal for RC vehicles, airplanes, boats and other models that require high performance and precision.
Specifications
Dimensions: 1.57 x 0.78 x 1.49 in (40 x 20 x 38 mm)
Weight: 2.25 oz (64 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 4.0 – 9.0V
Output Shaft Spline: 25T, 0.236 in (6 mm)
Position sensor: Potentiometer
Motor: Coreless DC
Ball Bearing: 2 x Ball Bearing
Working Frequency: 1520µs/333Hz
Pulse Range: 1520µs/333Hz
Programmable: Yes
Case Material: High Quality Technopolymer and Aluminium
Gear Set Material: Metal gear
Holding Torque
Holding Torque @ 6.0V: 227.75 oz·in (20.0 kg·cm)
Holding Torque @ 7.4V: 333.29 oz·in (24.0 kg·cm)
Holding Torque @ 8.4V: 361.07 oz·in (26.0 kg·cm)
No-load Speed
No-load Speed @ 6.0V: 0.11sec/60°
No-load Speed @ 7.4V: 0.09sec/60°
No-load Speed @ 8.4V: 0.08sec/60°
Output Torque
Output Torque @ 6.0V: 236.08 oz·in (17.0 kg·cm)
Output Torque @ 7.4V: 20.4 kg·cm
Output Torque @ 8.4V: 306.91 oz·in (22.1 kg·cm)
max. Current:
max. Current @ 6.0V: 5.82 A
max. Current @ 7.4V: 6.25 A
max. Current @ 8.4V: 6.45 A

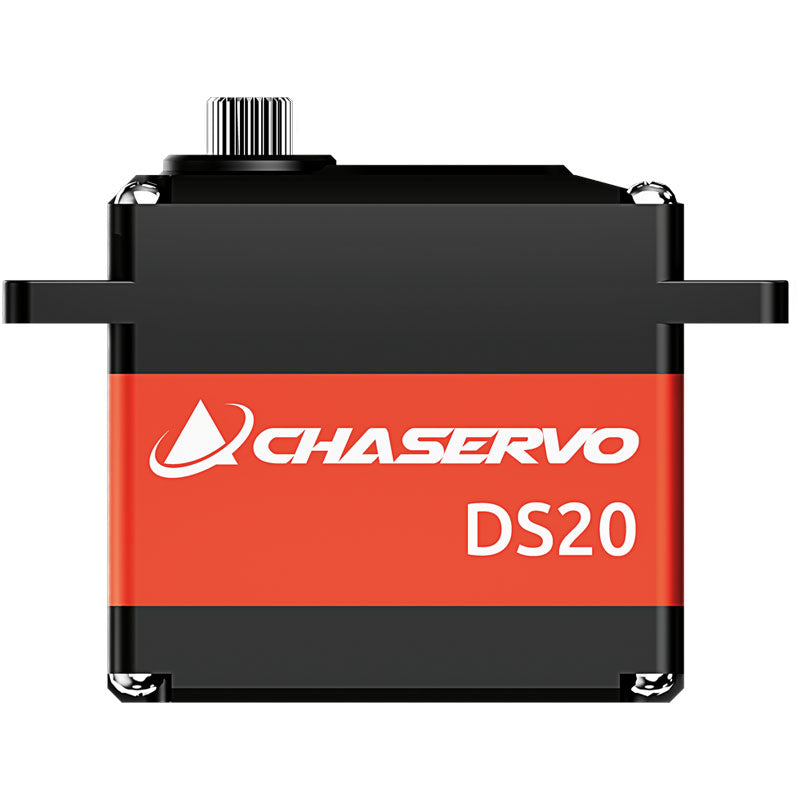

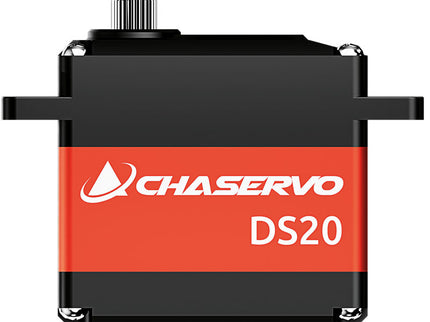

CHASERVO DS20 (26KG 8.4V) Servo
£48.50Incl. VAT
