Description
Precision Meets Durability – The Chaservo DS115 Micro Digital Servo
Designed for demanding RC applications, the Chaservo DS115 combines speed, strength, and rugged construction in a compact 15g form factor. Built with a hardened steel gear set and an aluminium-reinforced techno polymer housing, this servo delivers reliable performance even under extreme conditions.
The coreless motor ensures lightning-fast response times, while dual ball bearings and a programmable controller make it ideal for fine-tuned control in high-performance RC vehicles, drones, aircraft, and robotics.
Key Features:
High Holding Force – Up to 9 kg at 8.4V for moving heavier loads with ease
Exceptional Speed – Only 0.055 sec/60° at 8.4V
Robust Construction – Steel gears + aluminium-reinforced techno polymer housing
Lightweight – Just 15g, perfect for space- and weight-sensitive builds
Programmable – Fine-tune servo behaviour for your custom setup
Wide Voltage Range – Operates from 4.0V to 9.0V
Specifications:
Dimensions: 23 x 11.5 x 24.5 mm (0.90 x 0.45 x 0.96 in)
Weight: 15 g (0.52 oz)
Motor Type: Coreless DC
Gear Material: Hardened Steel
Bearings: Dual Ball Bearings
Spline: 25T, 5 mm output shaft
Pulse Range: 900μs – 2100μs
Frequency: 1520μs / 333Hz
Programmable: Yes
Holding Torque
Holding Torque @ 3.5V: 49.99 oz·in (3.6 kg·cm)
Holding Torque @ 6.0V: 76.38 oz·in (5.5 kg·cm)
Holding Torque @ 8.4V: 83.32 oz·in (6.0 kg·cm)
No-load Speed
No-load Speed @ 4.8V: 0.13sec/60°
No-load Speed @ 7.4V: 0.09sec/60°
No-load Speed @ 8.4V: 0.08sec/60°
Output Torque
Output Torque @ 3.5V: 44.99 oz·in (3.24 kg·cm)
Output Torque @ 6.0V: 68.74 oz·in (4.95 kg·cm)
Output Torque @ 8.4V: 74.99 oz·in (5.40 kg·cm)

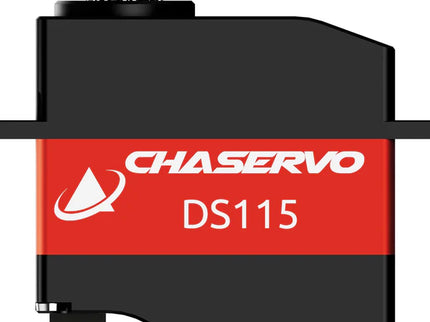

CHASERVO DS115 (6KG 8.4V) Servo
£26.50Incl. VAT
