Description
Powerful and precise
The DS09 is equipped with a powerful digital motor and a robust metal gearbox. It achieves a
stalling torque of 6 kg and a maximum speed of 0.16 s/60°. This makes it an ideal servo for
demanding applications such as model airplanes, micro RC cars, drones and robots.
The DS09 is equipped with a powerful digital motor and a robust metal gearbox. It achieves a
stalling torque of 6 kg and a maximum speed of 0.16 s/60°. This makes it an ideal servo for
demanding applications such as model airplanes, micro RC cars, drones and robots.
Specifications
Dimensions: 0.93 x 0.35 x 1.08 in (23.5 x 9 x 27.5 mm)
Weight: 0.42 oz (12 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 3.3 – 9.0V
Output Shaft Spline: 25T, 0.196 in (5 mm)
Position sensor: Potentiometer
Motor: Hollow cup DC
Ball Bearing: 2 x Ball Bearing
Working Frequency: 1520µs/20KHz
Pulse Range: 900µs-2100µs
Programmable: Yes
Case Material: High Quality Technopolymer and Aluminium
Gear Set Material: Hardened Steel + Brass
Holding Torque
Holding Torque @ 6.0V: 97.21 oz·in (7.0 kg·cm)
Holding Torque @ 7.4V: 111.09 oz·in (8.0 kg·cm)
Holding Torque @ 8.4V: 124.98 oz·in (9.0 kg·cm)
No-load Speed
No-load Speed @ 6.0V: 0.13sec/60°
No-load Speed @ 7.4V: 0.11sec/60°
No-load Speed @ 8.4V: 0.10sec/60°
Max Current
Max Current @ 6.0V: 0.90 A
Max Current @ 7.4V: 1.15 A
Max Current @ 8.4V: 1.25 A
Dimensions: 0.93 x 0.35 x 1.08 in (23.5 x 9 x 27.5 mm)
Weight: 0.42 oz (12 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 3.3 – 9.0V
Output Shaft Spline: 25T, 0.196 in (5 mm)
Position sensor: Potentiometer
Motor: Hollow cup DC
Ball Bearing: 2 x Ball Bearing
Working Frequency: 1520µs/20KHz
Pulse Range: 900µs-2100µs
Programmable: Yes
Case Material: High Quality Technopolymer and Aluminium
Gear Set Material: Hardened Steel + Brass
Holding Torque
Holding Torque @ 6.0V: 97.21 oz·in (7.0 kg·cm)
Holding Torque @ 7.4V: 111.09 oz·in (8.0 kg·cm)
Holding Torque @ 8.4V: 124.98 oz·in (9.0 kg·cm)
No-load Speed
No-load Speed @ 6.0V: 0.13sec/60°
No-load Speed @ 7.4V: 0.11sec/60°
No-load Speed @ 8.4V: 0.10sec/60°
Max Current
Max Current @ 6.0V: 0.90 A
Max Current @ 7.4V: 1.15 A
Max Current @ 8.4V: 1.25 A

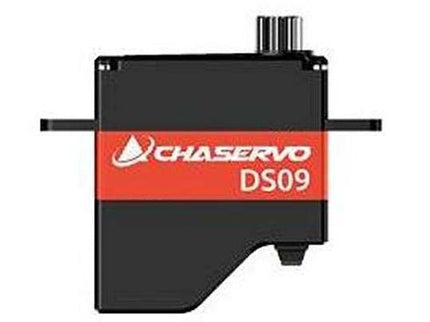

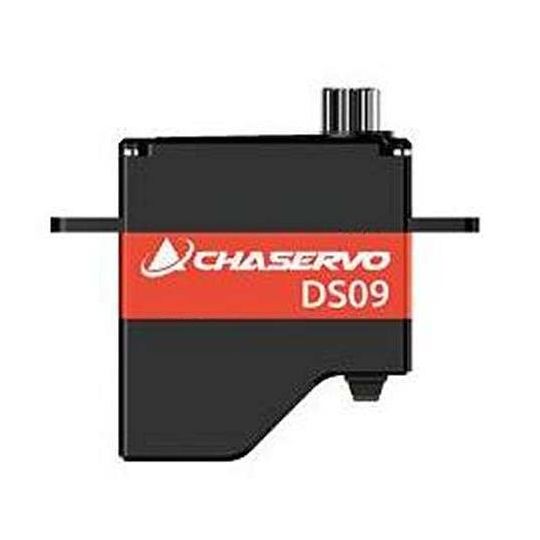

CHASERVO DS09 (9.0KG 8.4V) Servo
£34.90Incl. VAT
Description
Powerful and precise
The DS09 is equipped with a powerful digital motor and a robust metal gearbox. It achieves a
stalling torque of 6 kg and a maximum speed of 0.16 s/60°. This makes it an ideal servo for
demanding applications such as model airplanes, micro RC cars, drones and robots.
The DS09 is equipped with a powerful digital motor and a robust metal gearbox. It achieves a
stalling torque of 6 kg and a maximum speed of 0.16 s/60°. This makes it an ideal servo for
demanding applications such as model airplanes, micro RC cars, drones and robots.
Specifications
Dimensions: 0.93 x 0.35 x 1.08 in (23.5 x 9 x 27.5 mm)
Weight: 0.42 oz (12 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 3.3 – 9.0V
Output Shaft Spline: 25T, 0.196 in (5 mm)
Position sensor: Potentiometer
Motor: Hollow cup DC
Ball Bearing: 2 x Ball Bearing
Working Frequency: 1520µs/20KHz
Pulse Range: 900µs-2100µs
Programmable: Yes
Case Material: High Quality Technopolymer and Aluminium
Gear Set Material: Hardened Steel + Brass
Holding Torque
Holding Torque @ 6.0V: 97.21 oz·in (7.0 kg·cm)
Holding Torque @ 7.4V: 111.09 oz·in (8.0 kg·cm)
Holding Torque @ 8.4V: 124.98 oz·in (9.0 kg·cm)
No-load Speed
No-load Speed @ 6.0V: 0.13sec/60°
No-load Speed @ 7.4V: 0.11sec/60°
No-load Speed @ 8.4V: 0.10sec/60°
Max Current
Max Current @ 6.0V: 0.90 A
Max Current @ 7.4V: 1.15 A
Max Current @ 8.4V: 1.25 A
Dimensions: 0.93 x 0.35 x 1.08 in (23.5 x 9 x 27.5 mm)
Weight: 0.42 oz (12 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 3.3 – 9.0V
Output Shaft Spline: 25T, 0.196 in (5 mm)
Position sensor: Potentiometer
Motor: Hollow cup DC
Ball Bearing: 2 x Ball Bearing
Working Frequency: 1520µs/20KHz
Pulse Range: 900µs-2100µs
Programmable: Yes
Case Material: High Quality Technopolymer and Aluminium
Gear Set Material: Hardened Steel + Brass
Holding Torque
Holding Torque @ 6.0V: 97.21 oz·in (7.0 kg·cm)
Holding Torque @ 7.4V: 111.09 oz·in (8.0 kg·cm)
Holding Torque @ 8.4V: 124.98 oz·in (9.0 kg·cm)
No-load Speed
No-load Speed @ 6.0V: 0.13sec/60°
No-load Speed @ 7.4V: 0.11sec/60°
No-load Speed @ 8.4V: 0.10sec/60°
Max Current
Max Current @ 6.0V: 0.90 A
Max Current @ 7.4V: 1.15 A
Max Current @ 8.4V: 1.25 A
