Description
Micro Sub. Maximum performance.

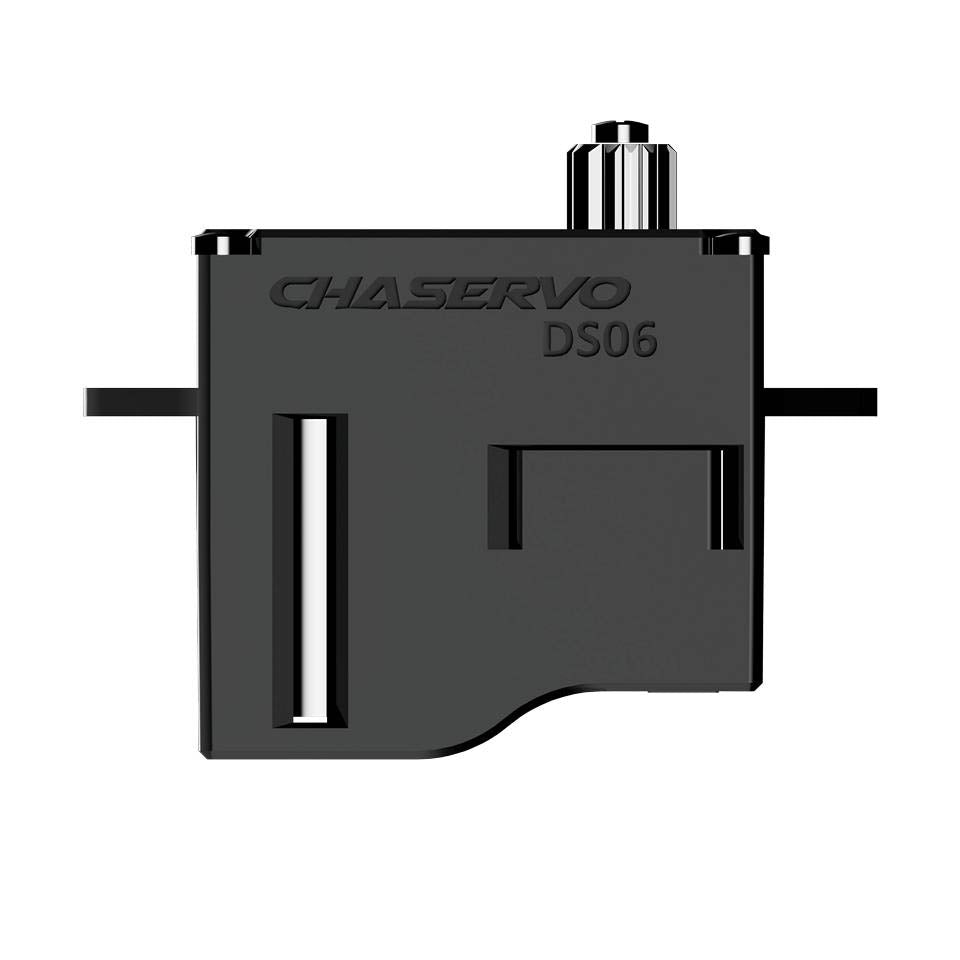

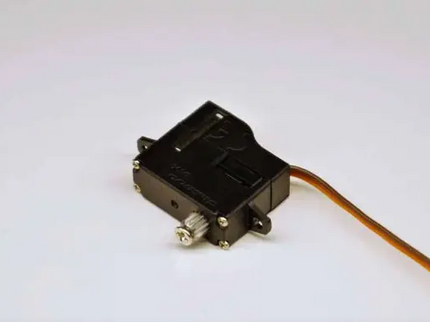

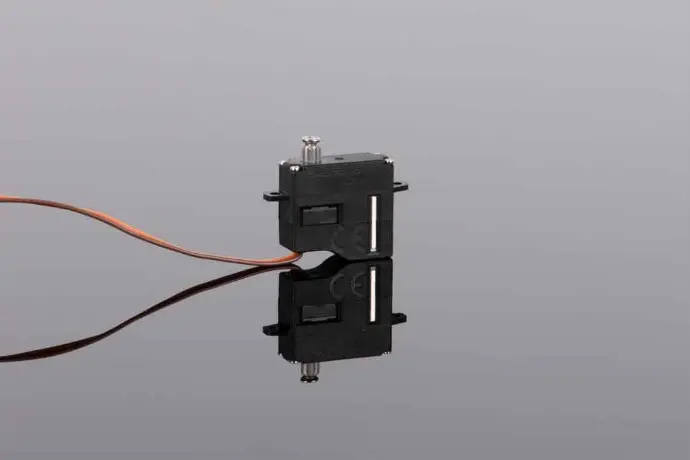

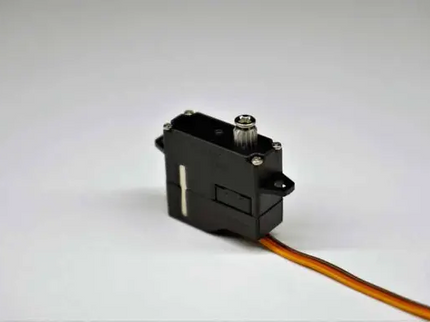

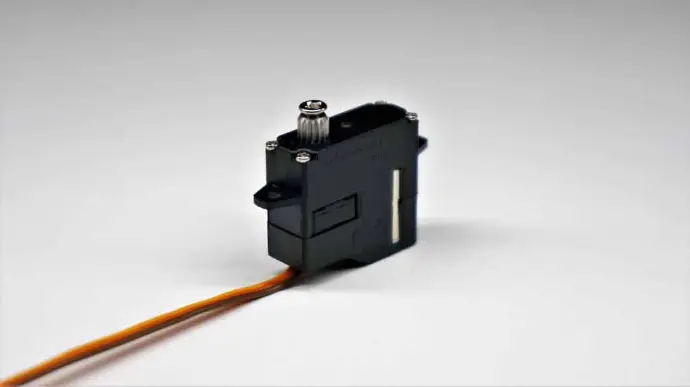

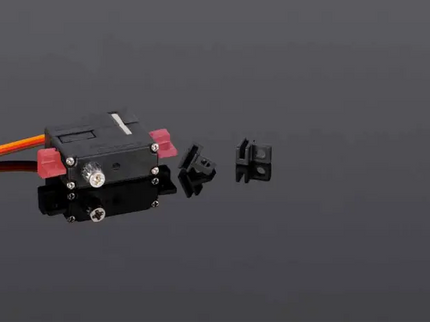

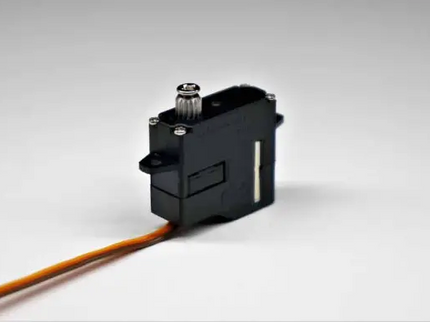

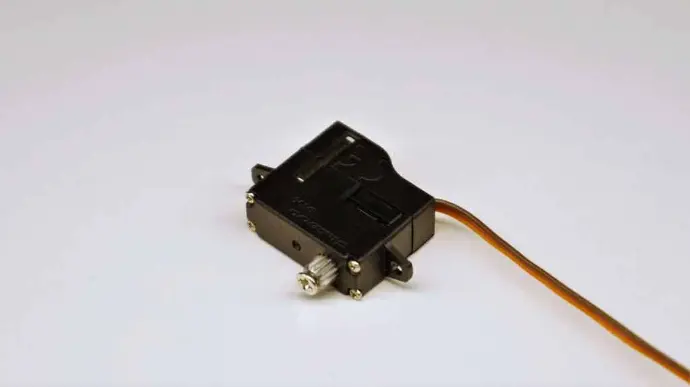

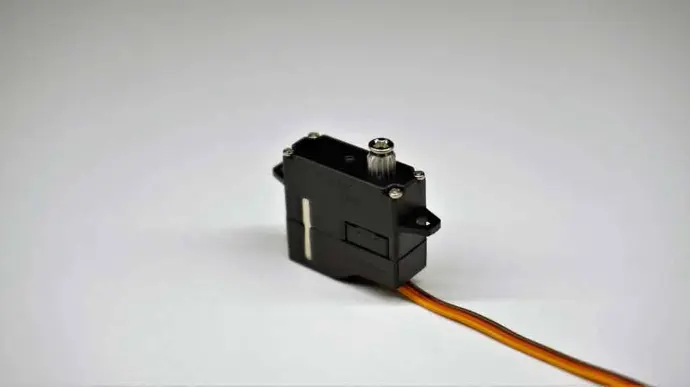

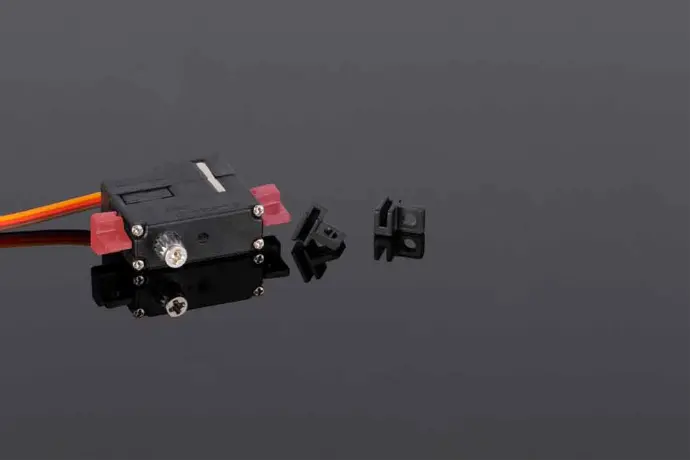

The DS06 micro servo is characterized by a multitude of features and an impressive weight of just 6
g, which makes it an outstanding product.
The high-quality hollow cup DC motor ensures powerful and extremely precise control. The use of
ultra-light and ultra-strong technopolymer for the fairing makes the DS06 extremely robust and
reliable in any application situation.
Whether in model airplanes, micro RC cars, drones, robots or other small applications - the DS06 is
the ideal budget solution.
The DS06 micro servo is characterized by a multitude of features and an impressive weight of just 6
g, which makes it an outstanding product.
The high-quality hollow cup DC motor ensures powerful and extremely precise control. The use of
ultra-light and ultra-strong technopolymer for the fairing makes the DS06 extremely robust and
reliable in any application situation.
Whether in model airplanes, micro RC cars, drones, robots or other small applications - the DS06 is
the ideal budget solution.
Specifications
Dimensions: 0.78 x 0.29 x 0.74 in (20 x 7.4 x 18.7 mm)
Weight: 0.21 oz (6.1 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 3.3 – 9.0V
Output Shaft Spline: 15T, 4mm
Position sensor: Potentiometer
Motor: Hollow cup DC
Ball Bearing: 2 x Ball Bearing
Working Frequency: 1520µs/20KHz
Pulse Range: 900µs-2100µs
Programmable: Yes
Case Material: Plastic
Gear Set Material: Metal gear
Holding Torque
Holding Torque @ 3.5V: 12.49 oz·in (0.9 kg·cm)
Holding Torque @ 6.0V: 22.91 oz·in (1.65 kg·cm)
Holding Torque @ 8.4V: 27.77 oz·in (2.0 kg·cm)
No-load Speed
No-load Speed @ 3.8V: 0.12sec/60°
No-load Speed @ 6.0V: 0.08sec/60°
No-load Speed @ 8.4V: 0.07sec/60°
Max Current
Max Current @ 3.5V: 0.30 A
Max Current @ 6.0V: 0.58 A
Max Current @ 8.4V: 0.67 A

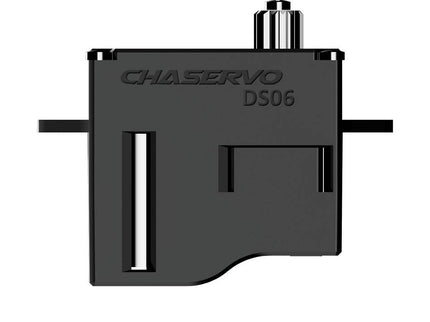

CHASERVO DS06 (2.0KG 8.4V) Servo
£29.90Incl. VAT
