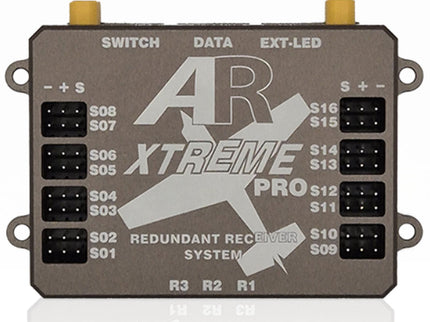

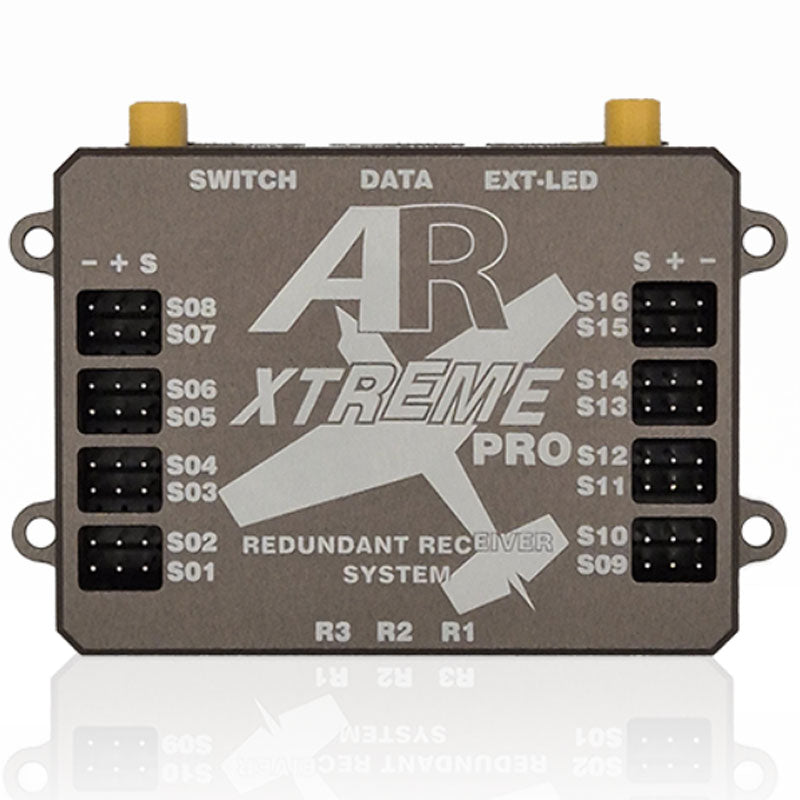

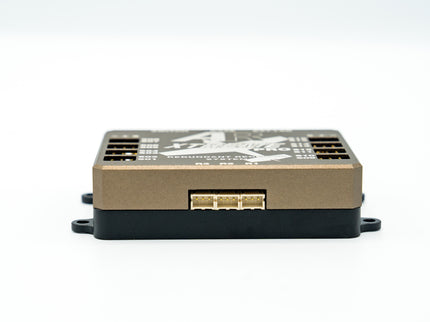

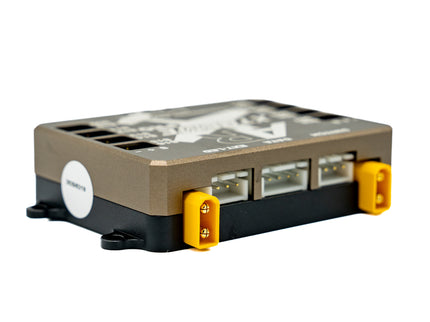

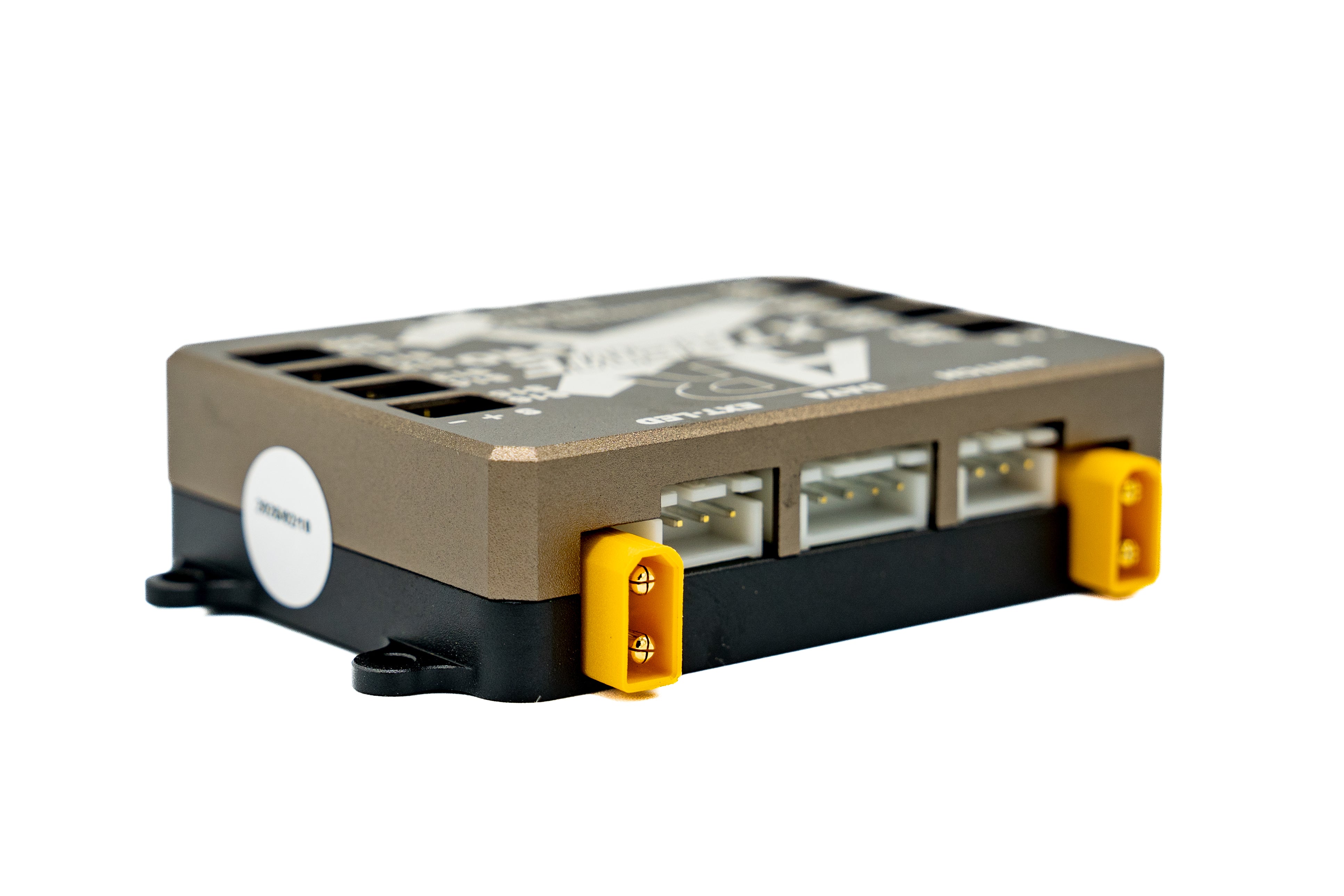

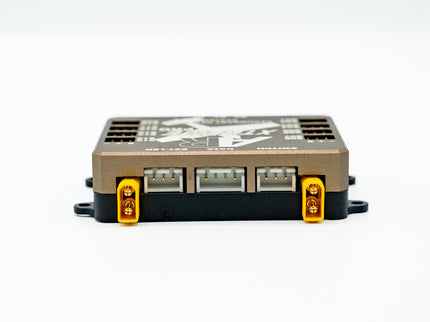

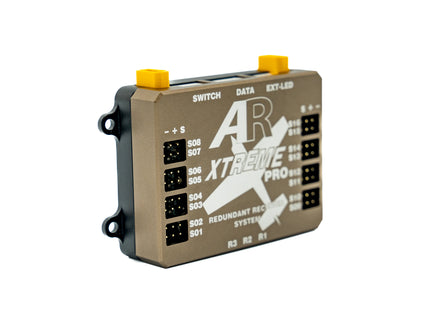

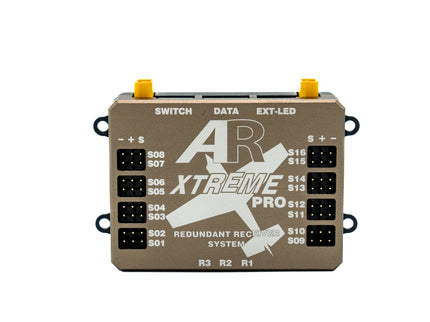

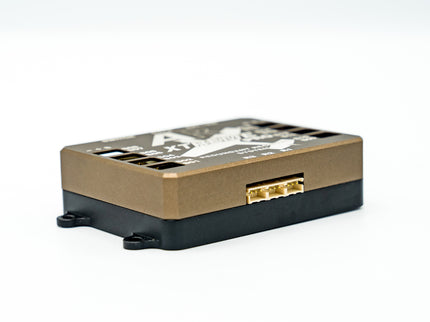

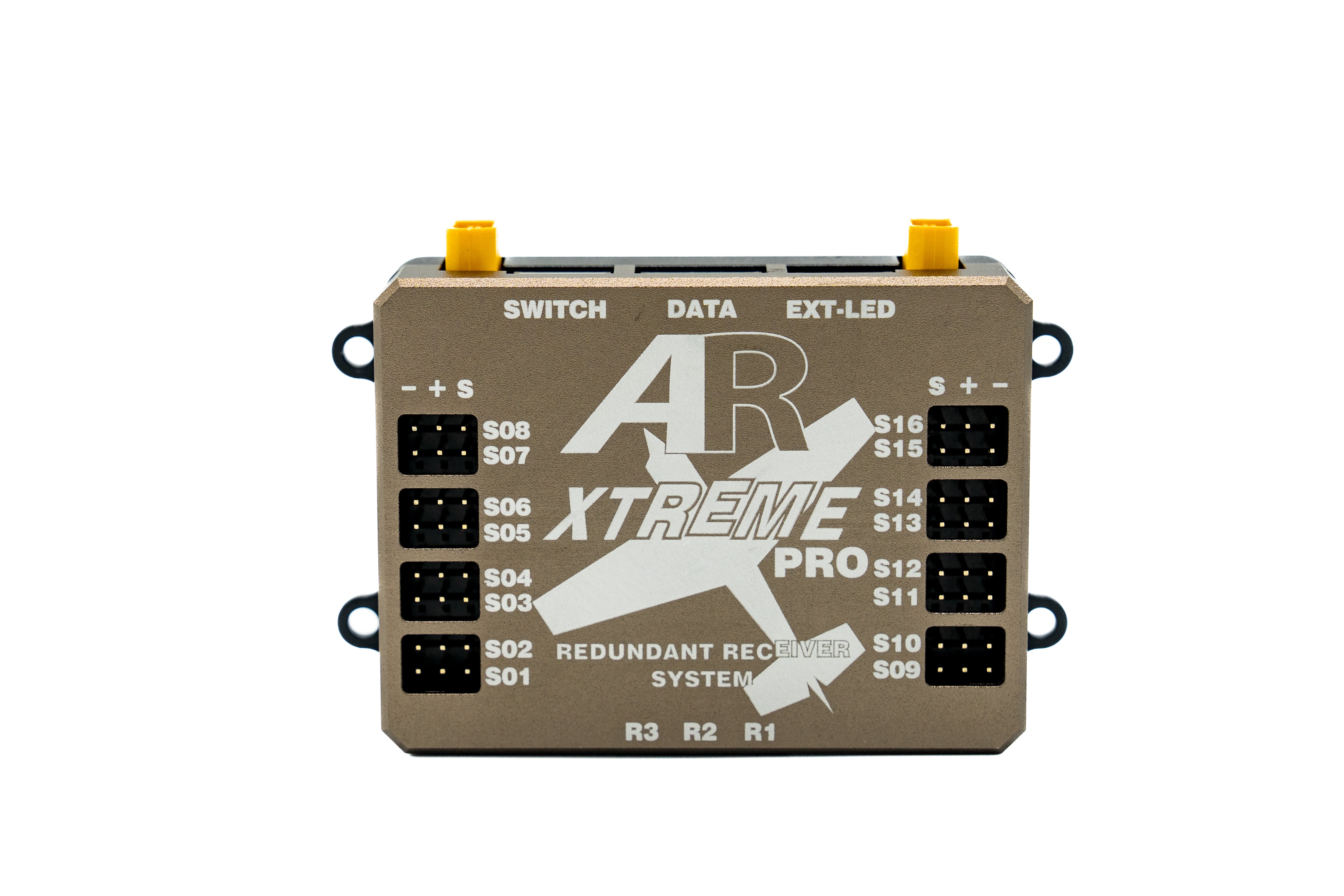

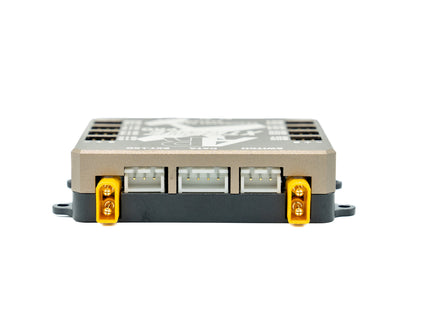

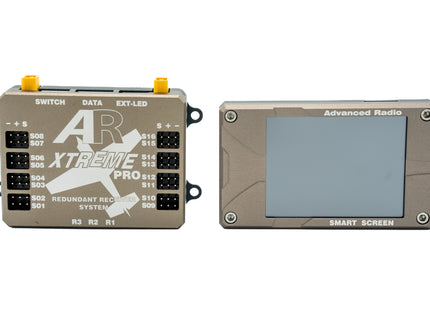

Unleash next-level control, reliability, and power delivery with the AR Xtreme Pro, the ultimate high-performance servo distribution and gyro system designed for extreme 3D, IMAC, and giant-scale aircraft.

Equipped with dual receiver inputs, dual battery redundancy, and 16 fully assignable outputs, the Xtreme Pro ensures complete flexibility and failsafe control. Built for today's high-powered digital servos, it features 15-point servo matching, servo reversing, and sub-trim adjustments per channel, giving you absolute precision across elevators, flaps, rudders, or multi-engine setups.

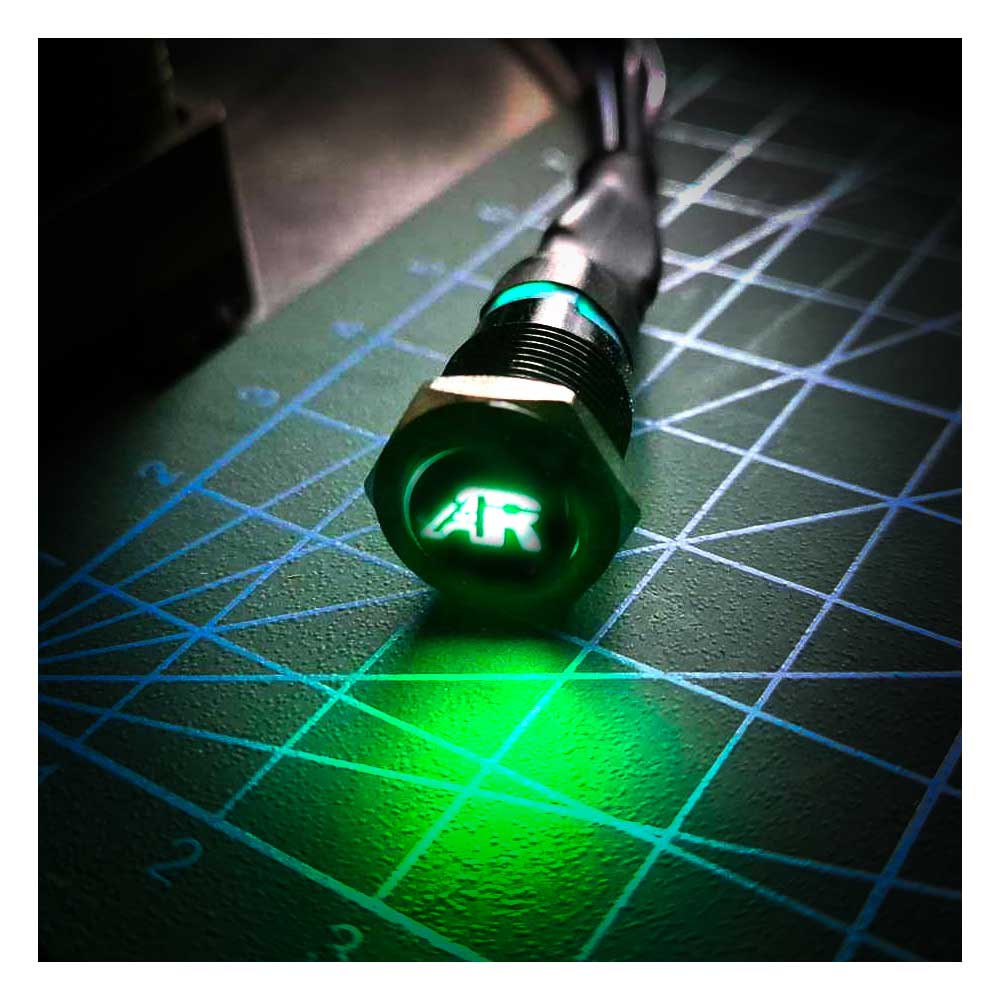

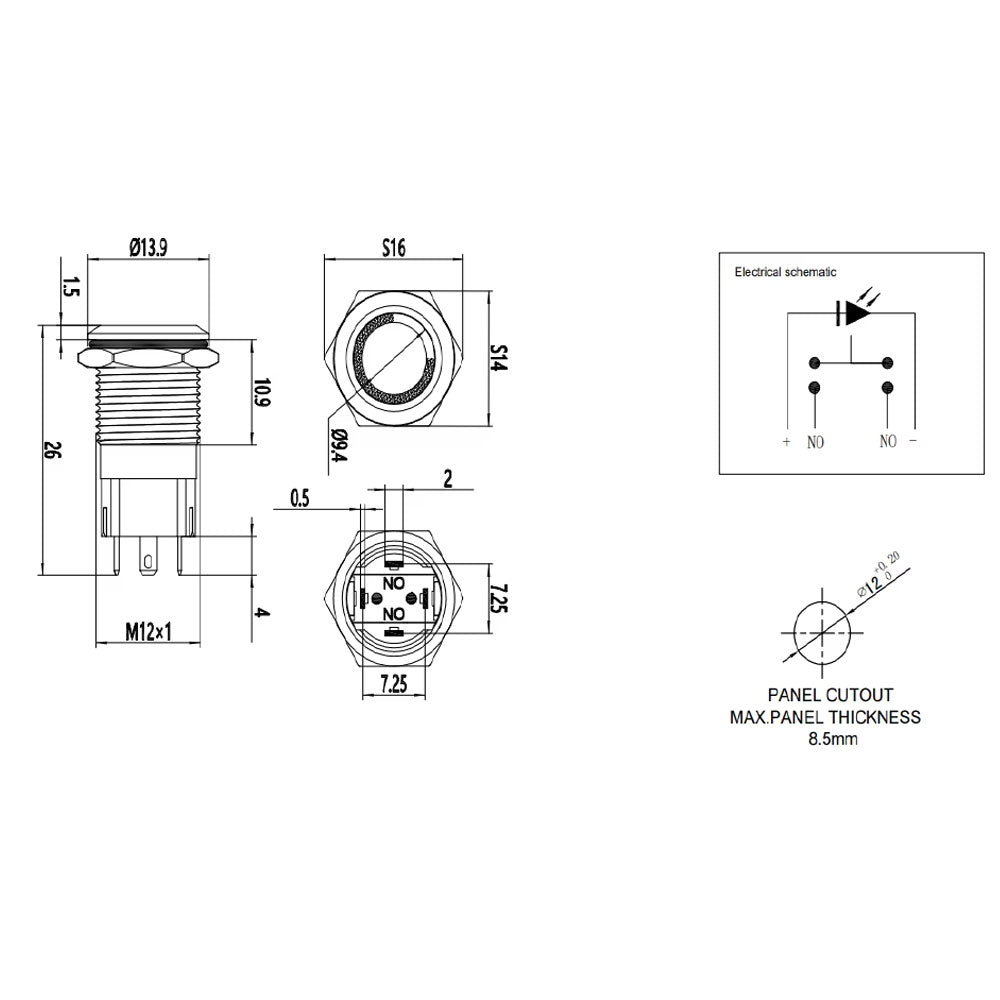

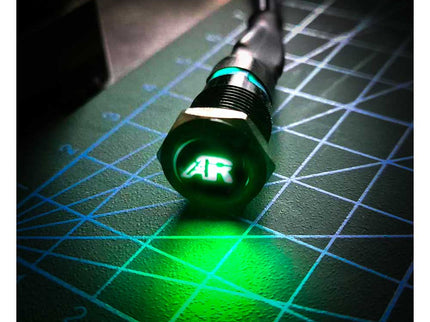

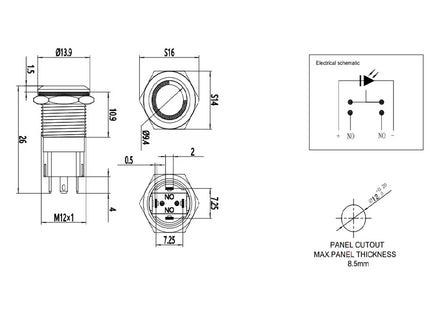

The included Push Button Switch Actuator with LED provides secure, clear, and effortless power control — a professional-grade fail-safe power switch perfect for large models.

With support for S.Bus2, SRXL2, XBus, EXBus, HoTT, Spektrum, and more, the Xtreme Pro is compatible with Futaba, Jeti, Core, JR, Graupner, FrSky and other major brands — and offers built-in telemetry, auto protocol switching, and intelligent receiver failover via its proprietary RRS system.

You can even personalize your start-up screen for exclusivity, visibility, and quick model identification.

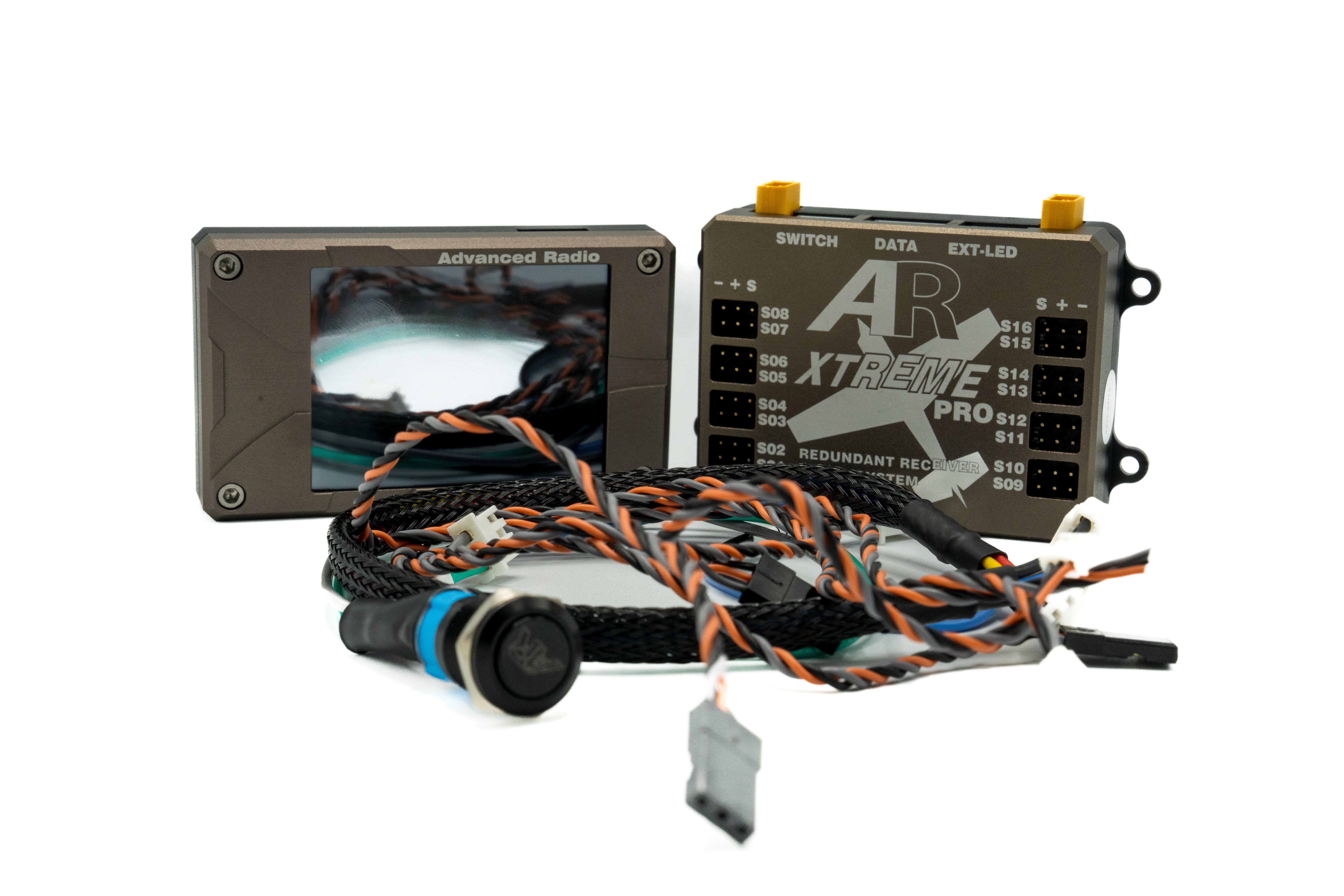

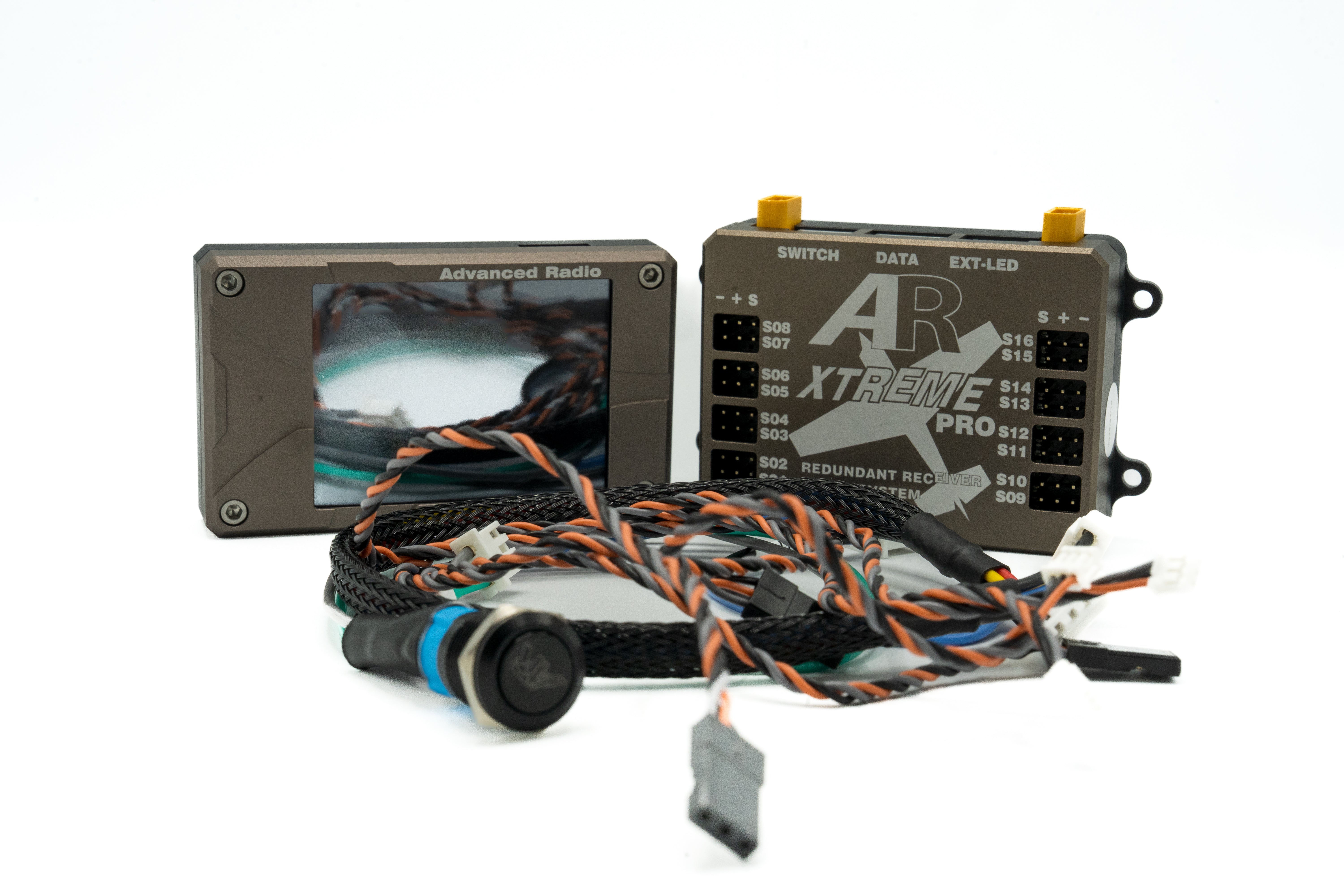

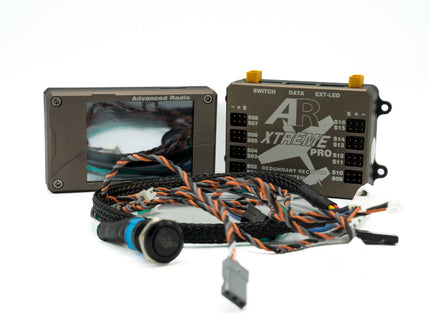

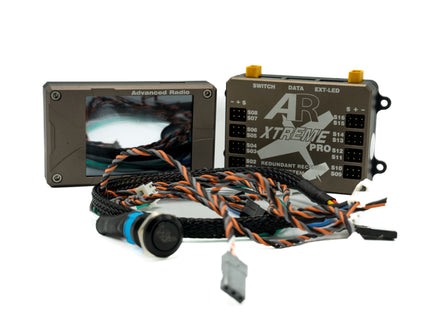

What’s Included:

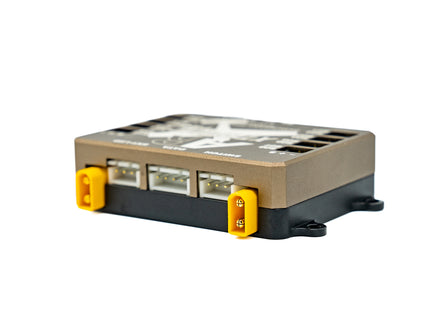

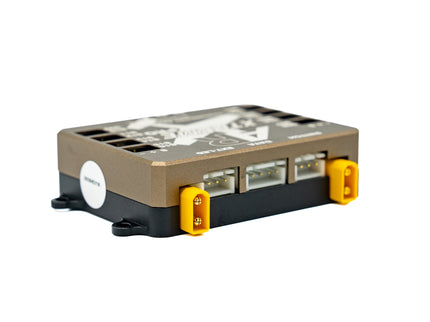

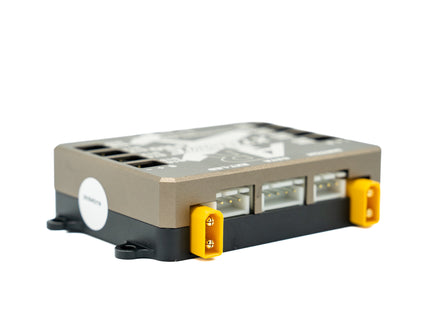

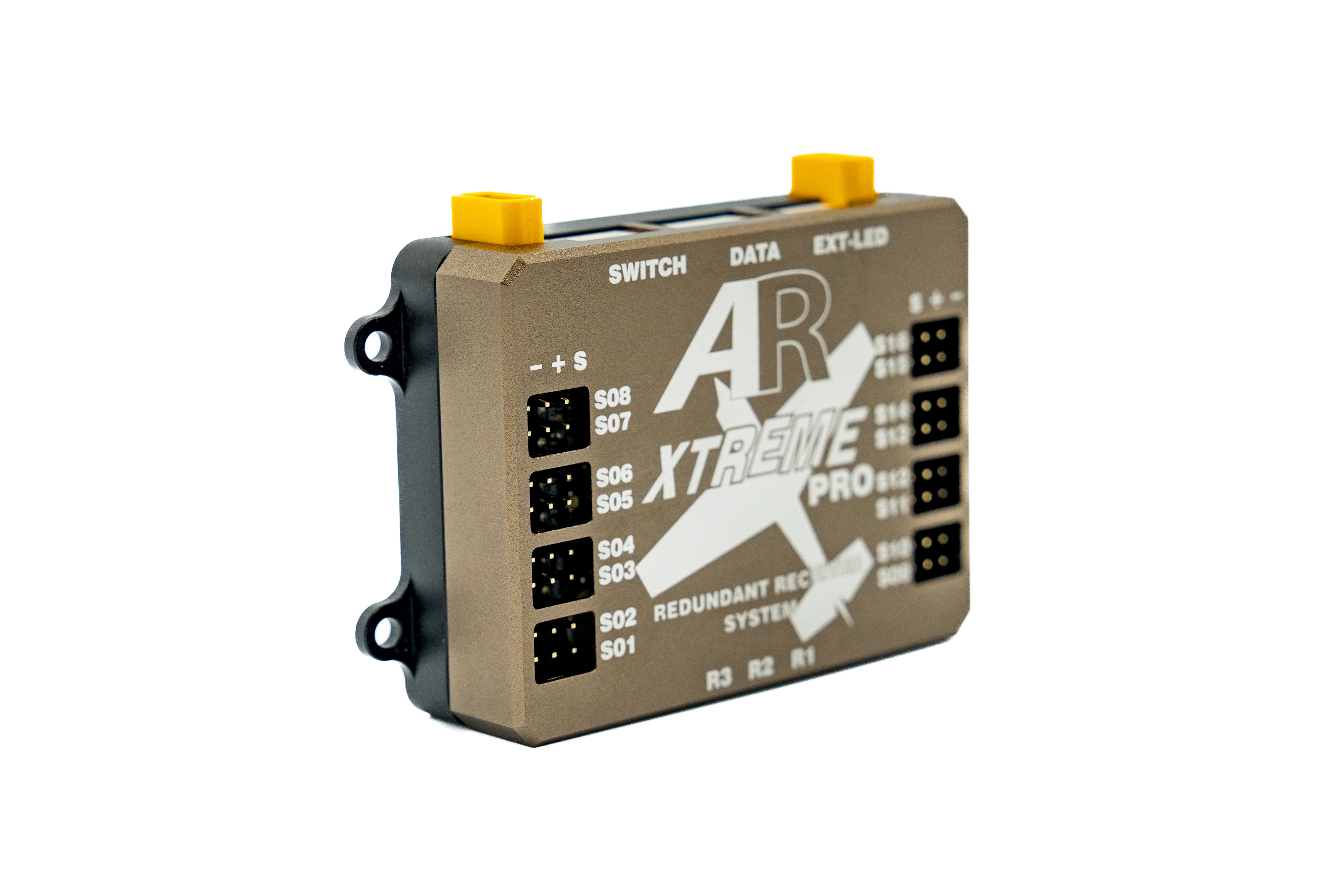

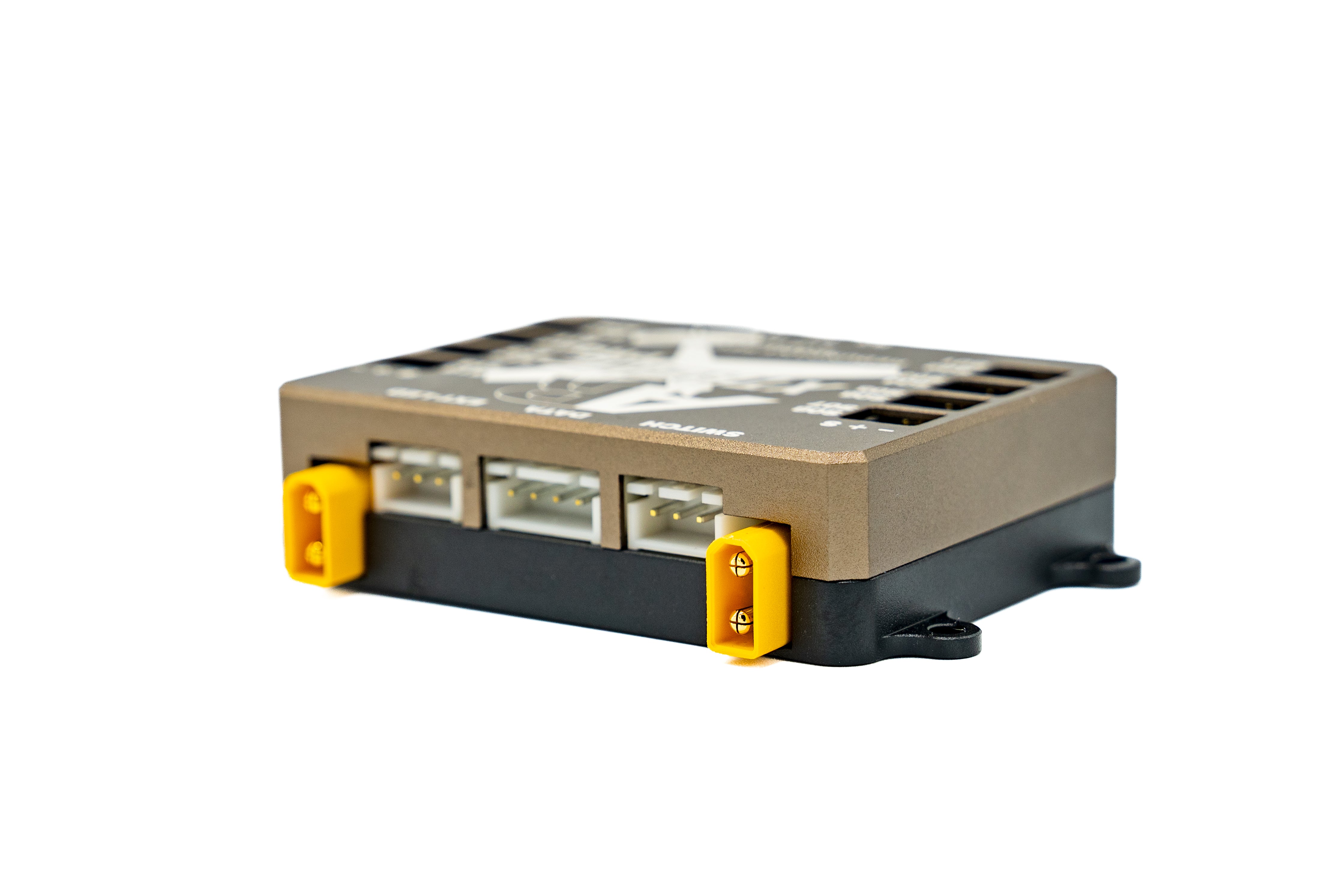

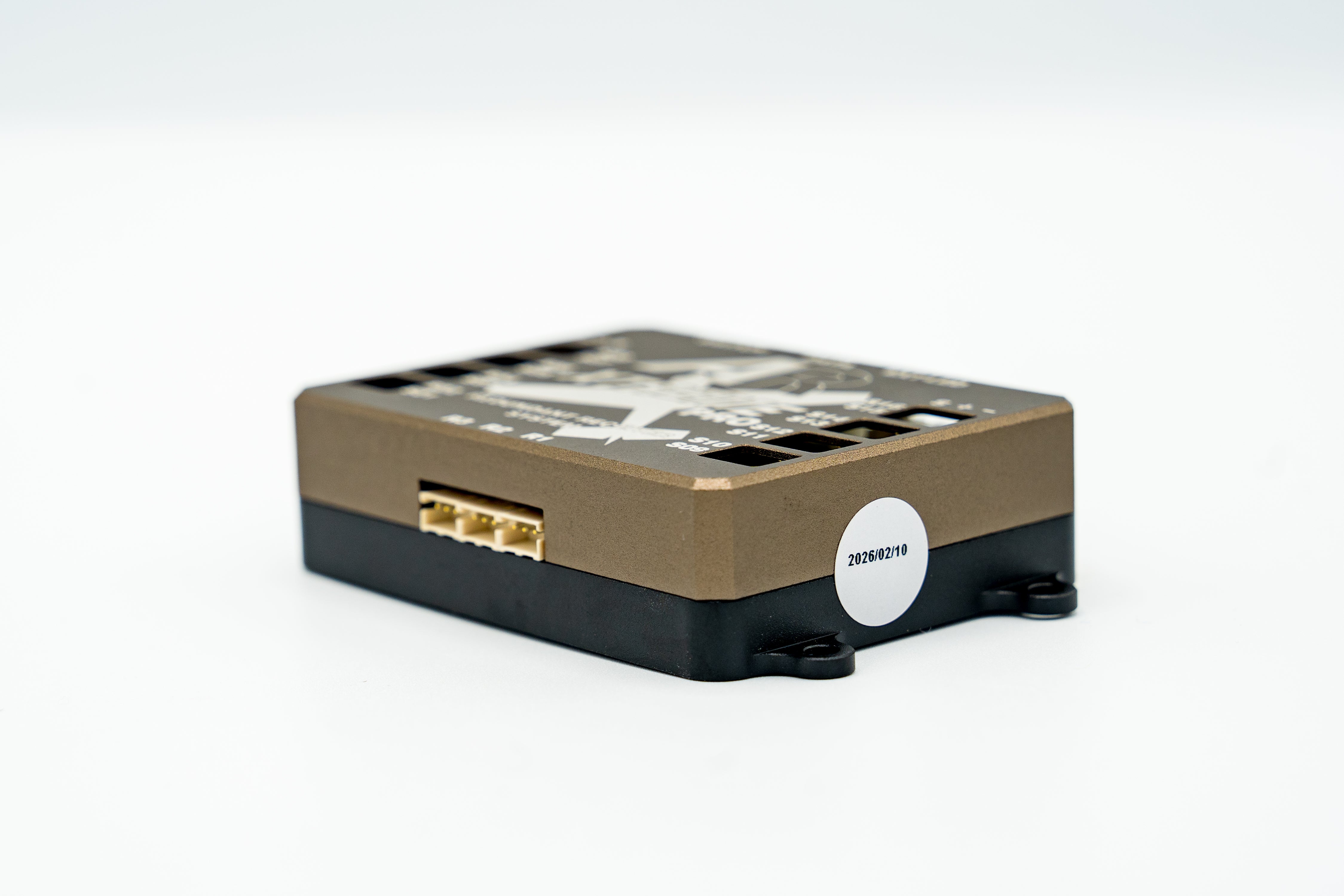

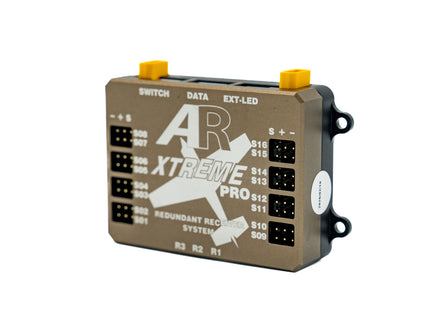

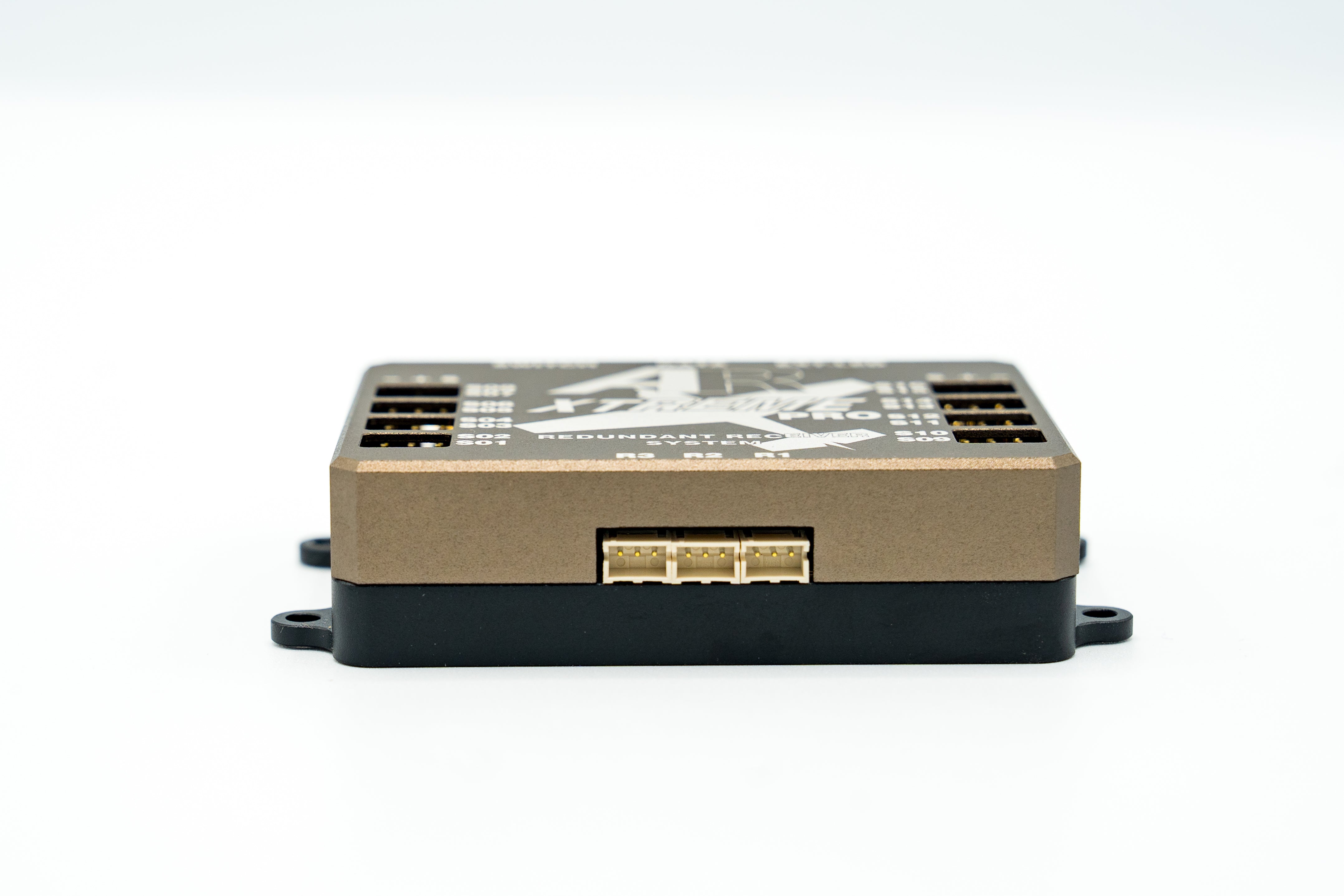

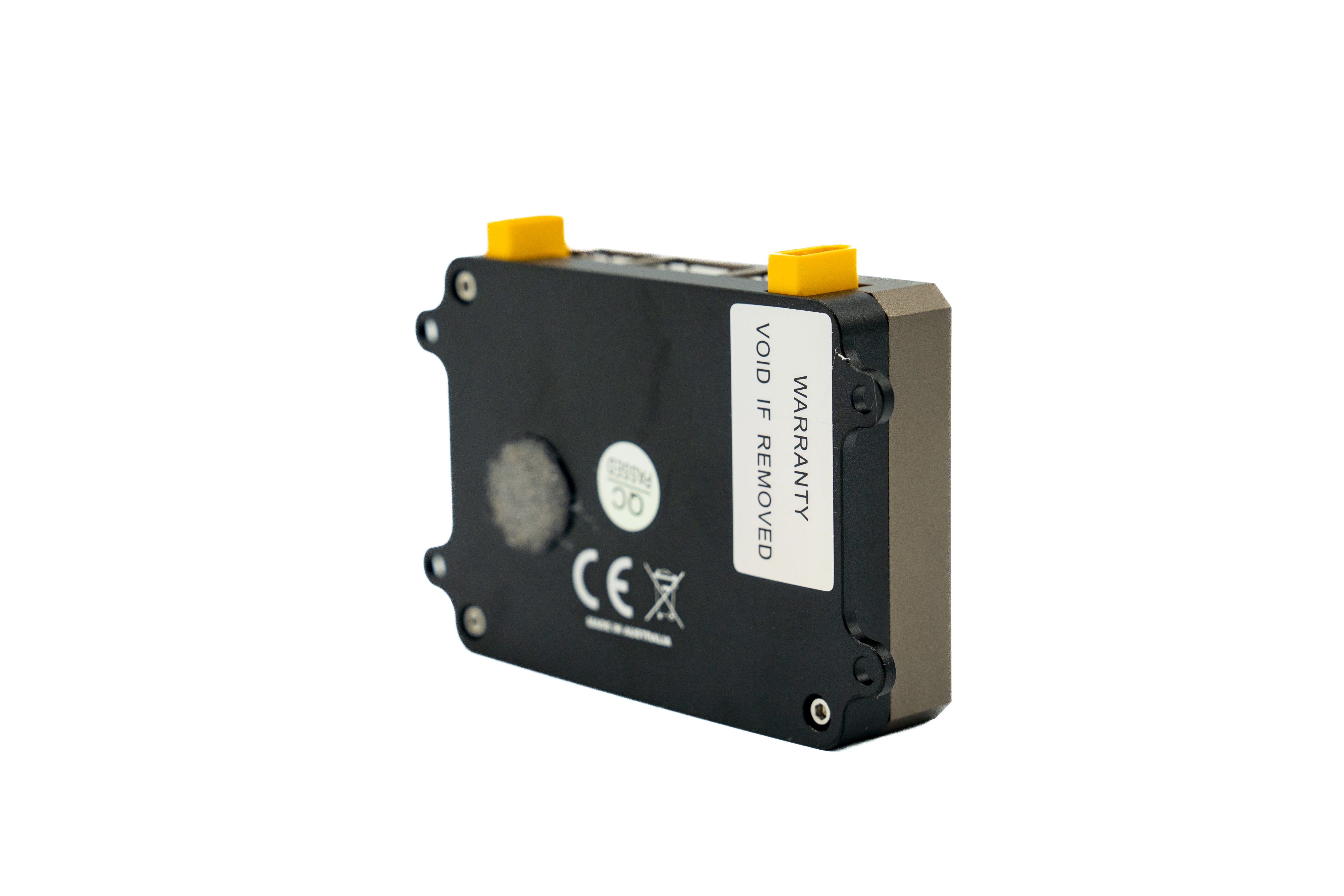

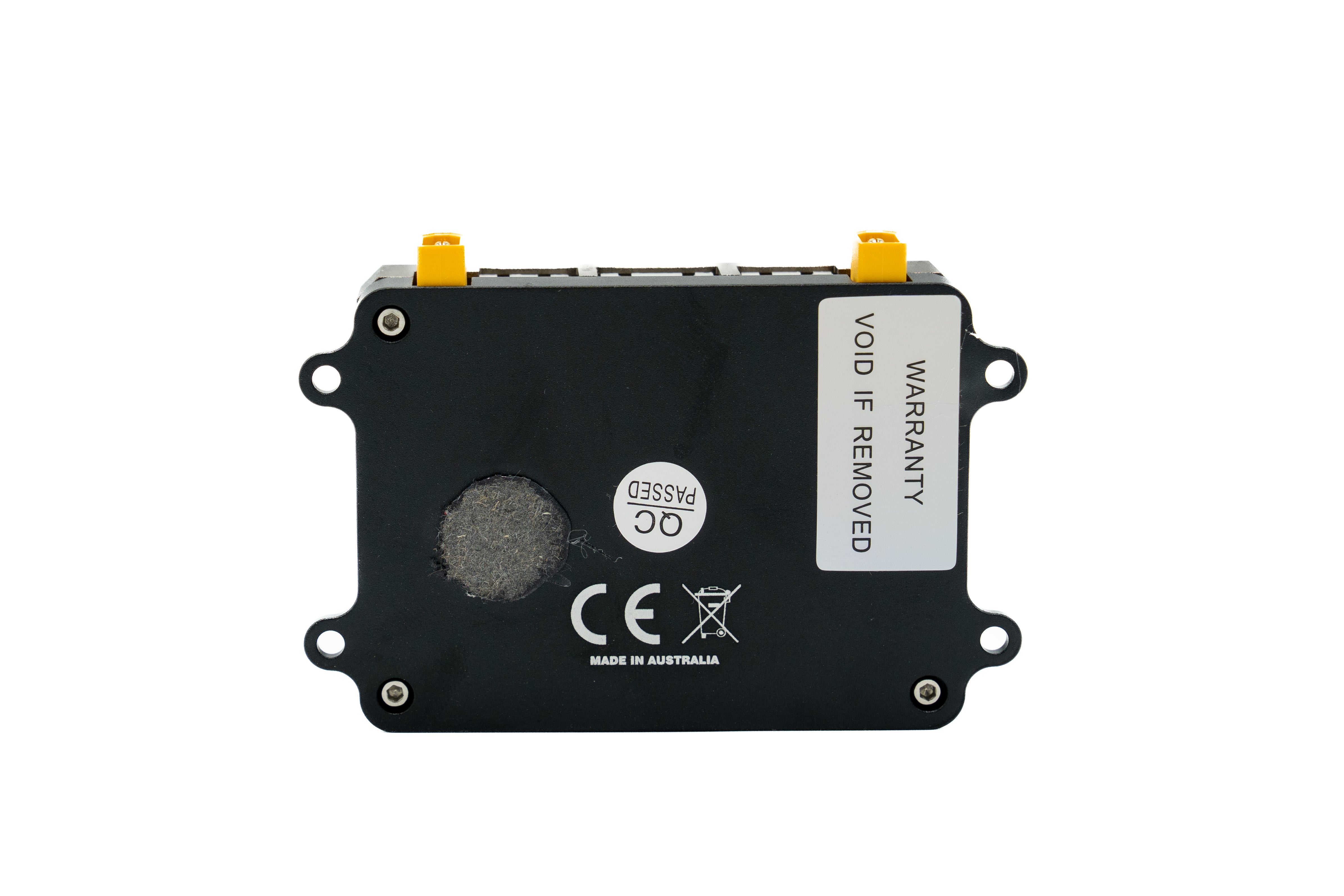

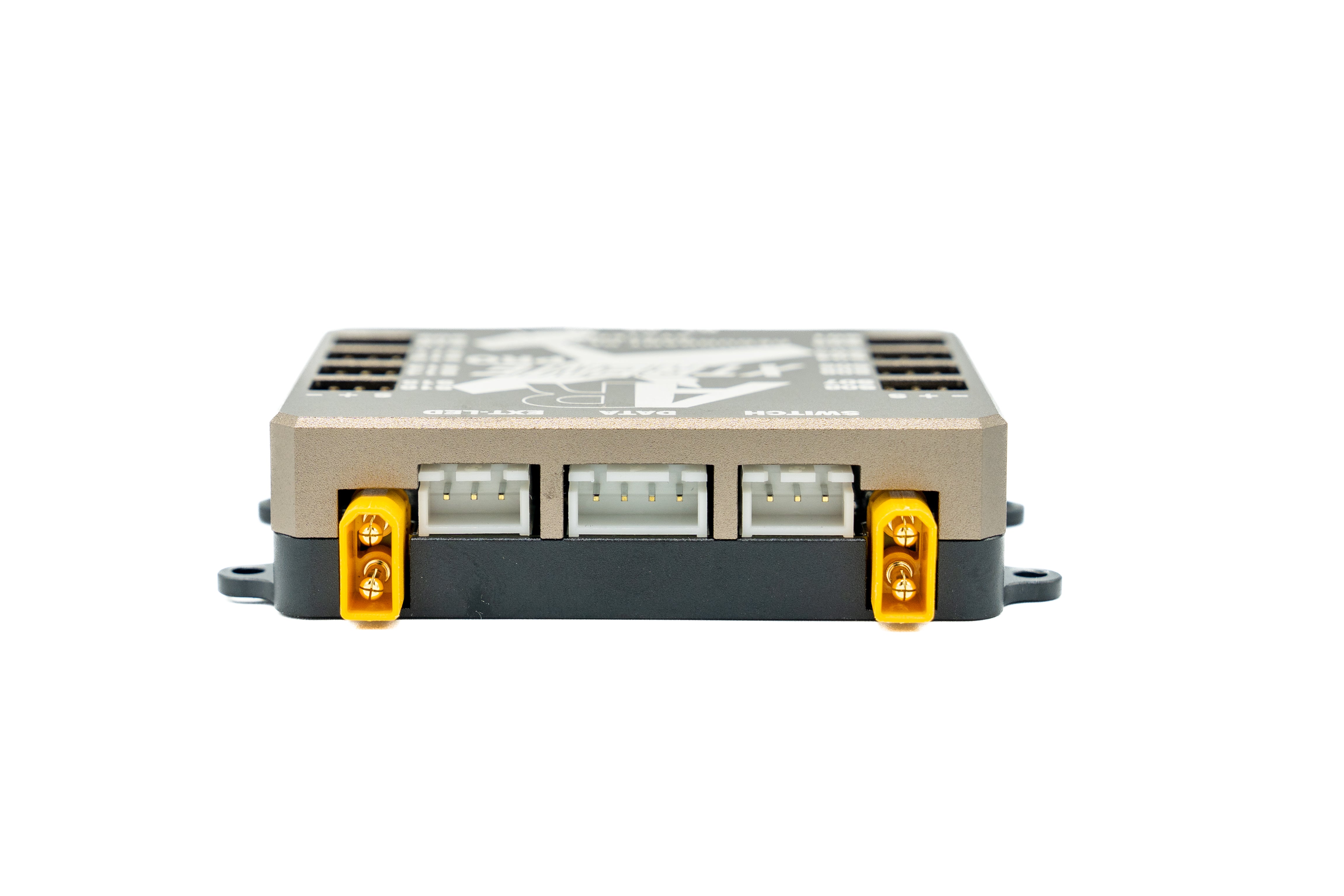

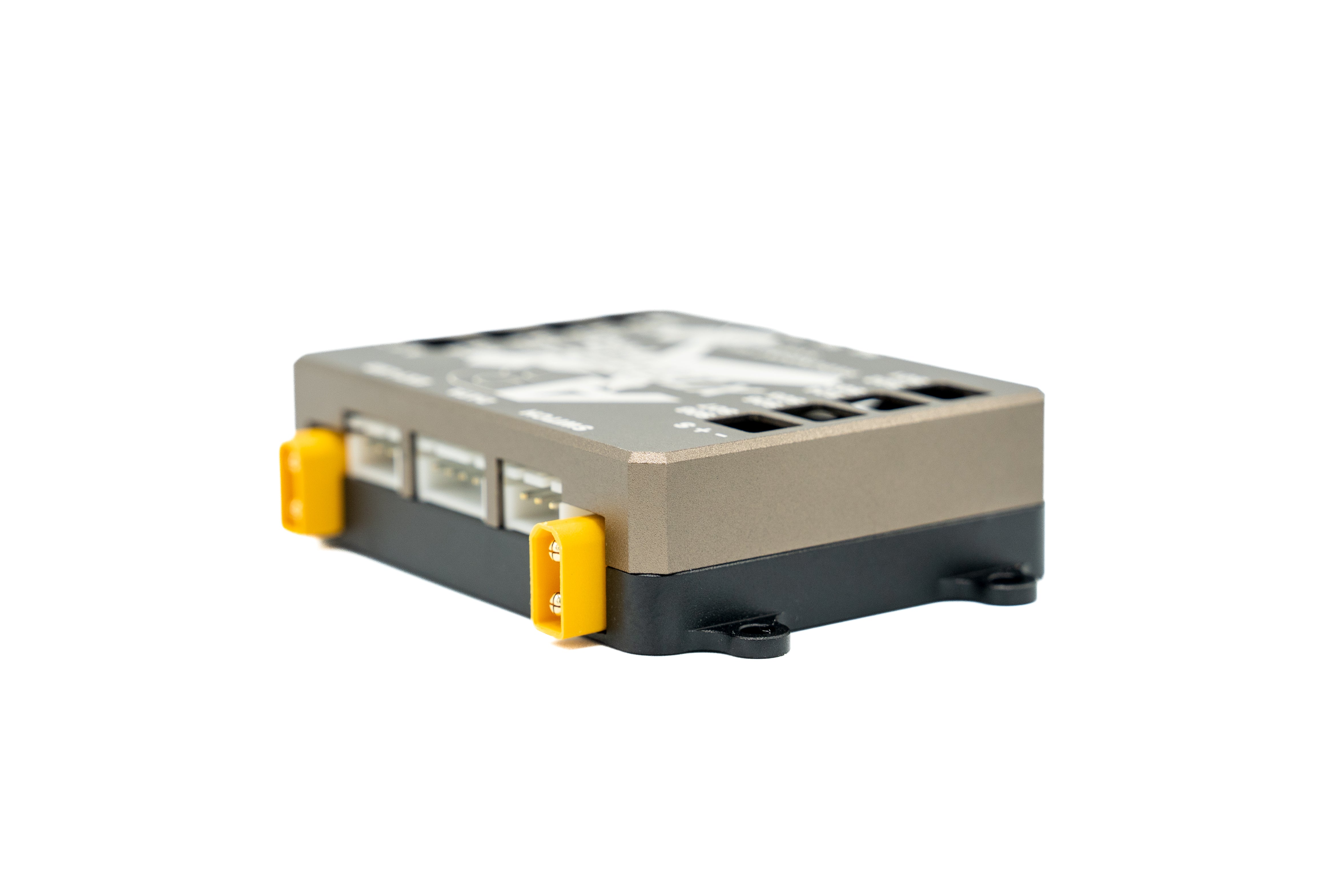

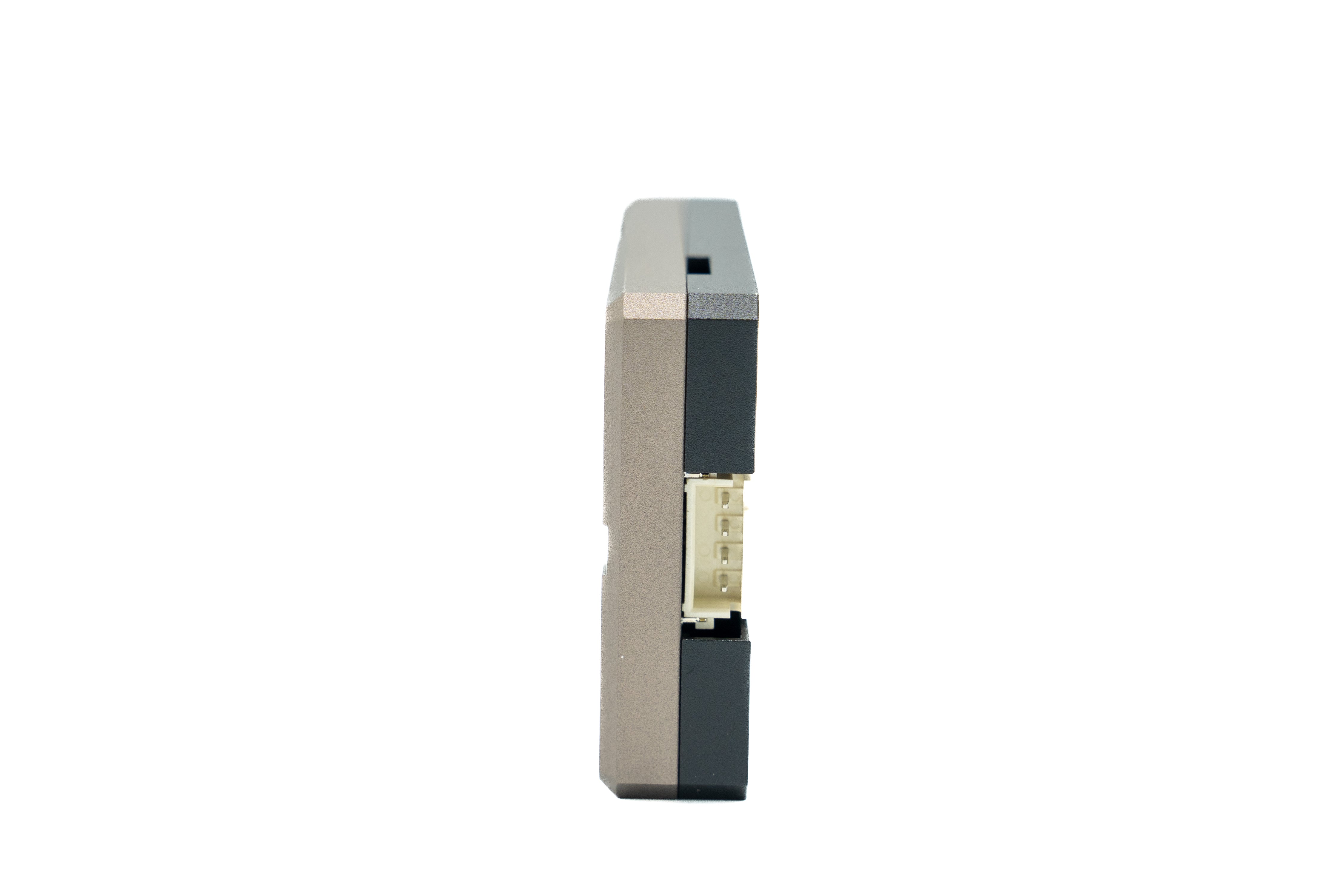

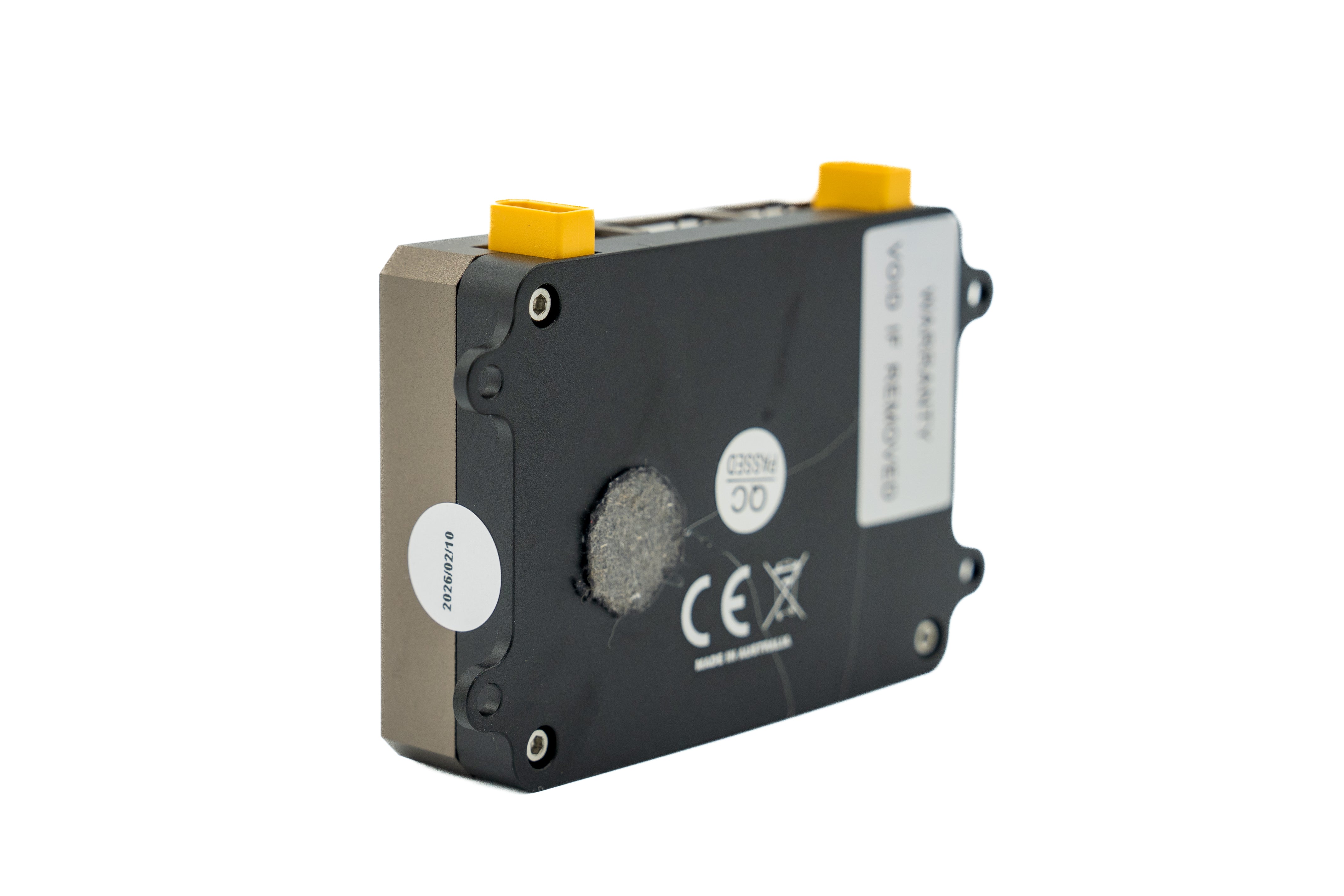

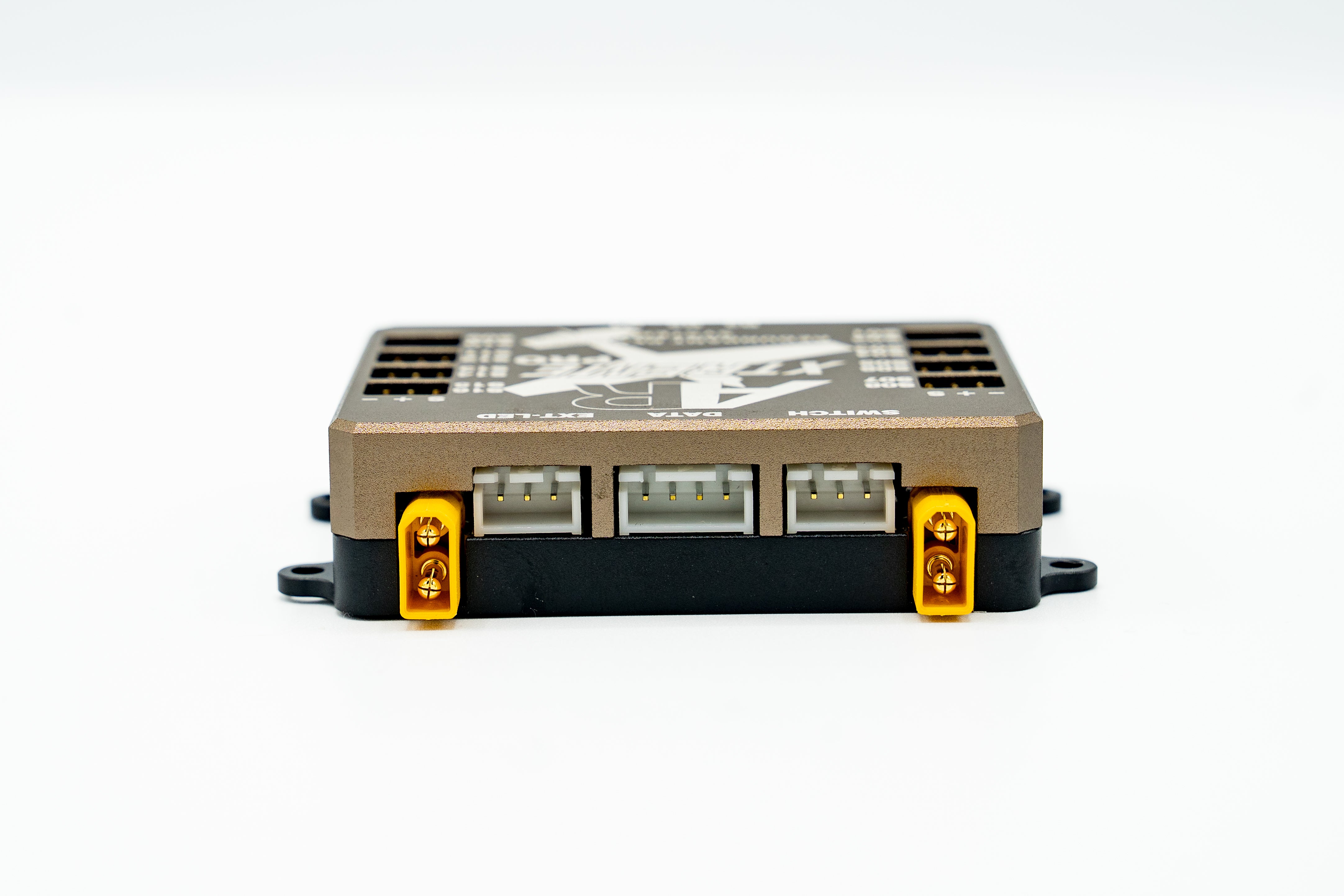

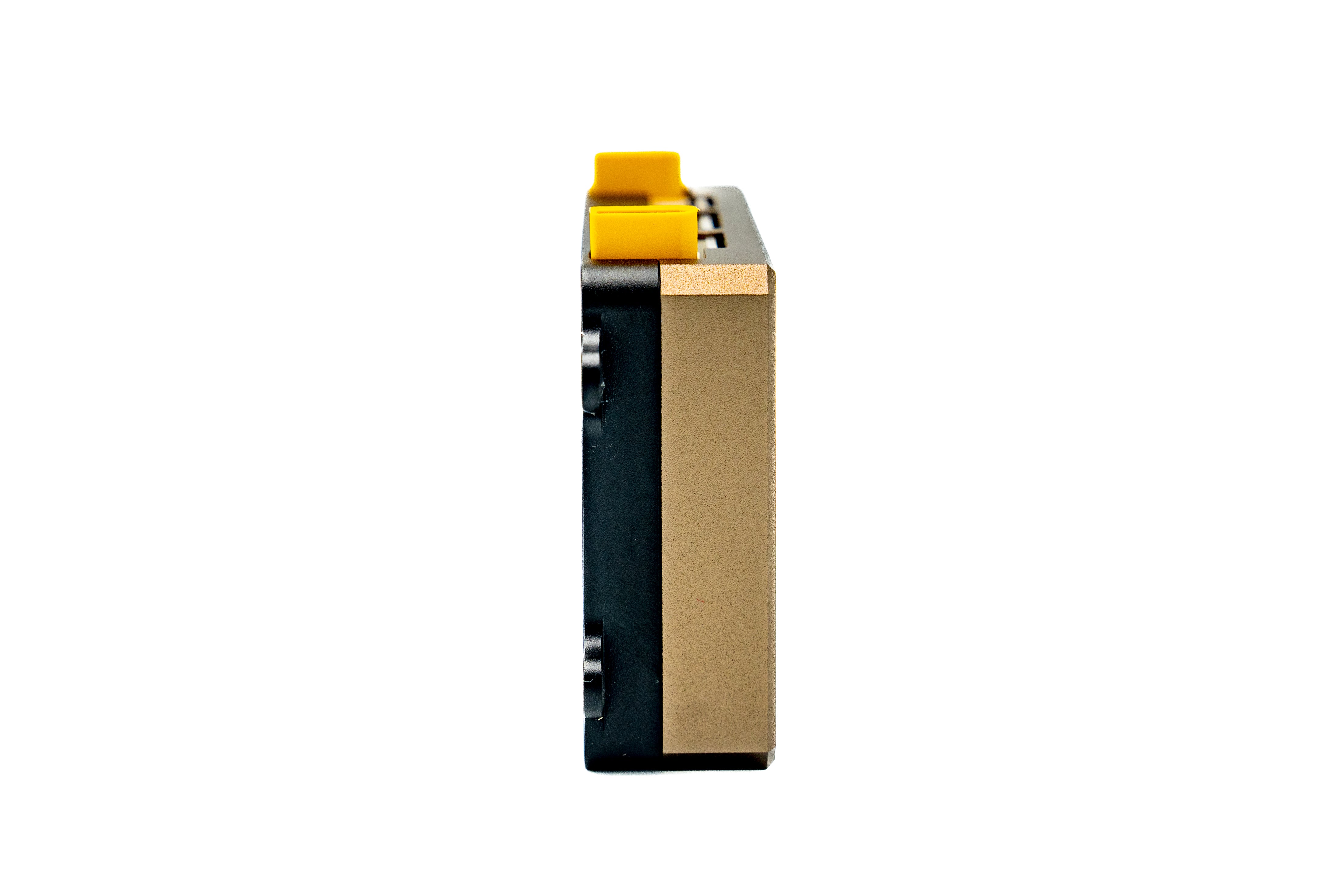

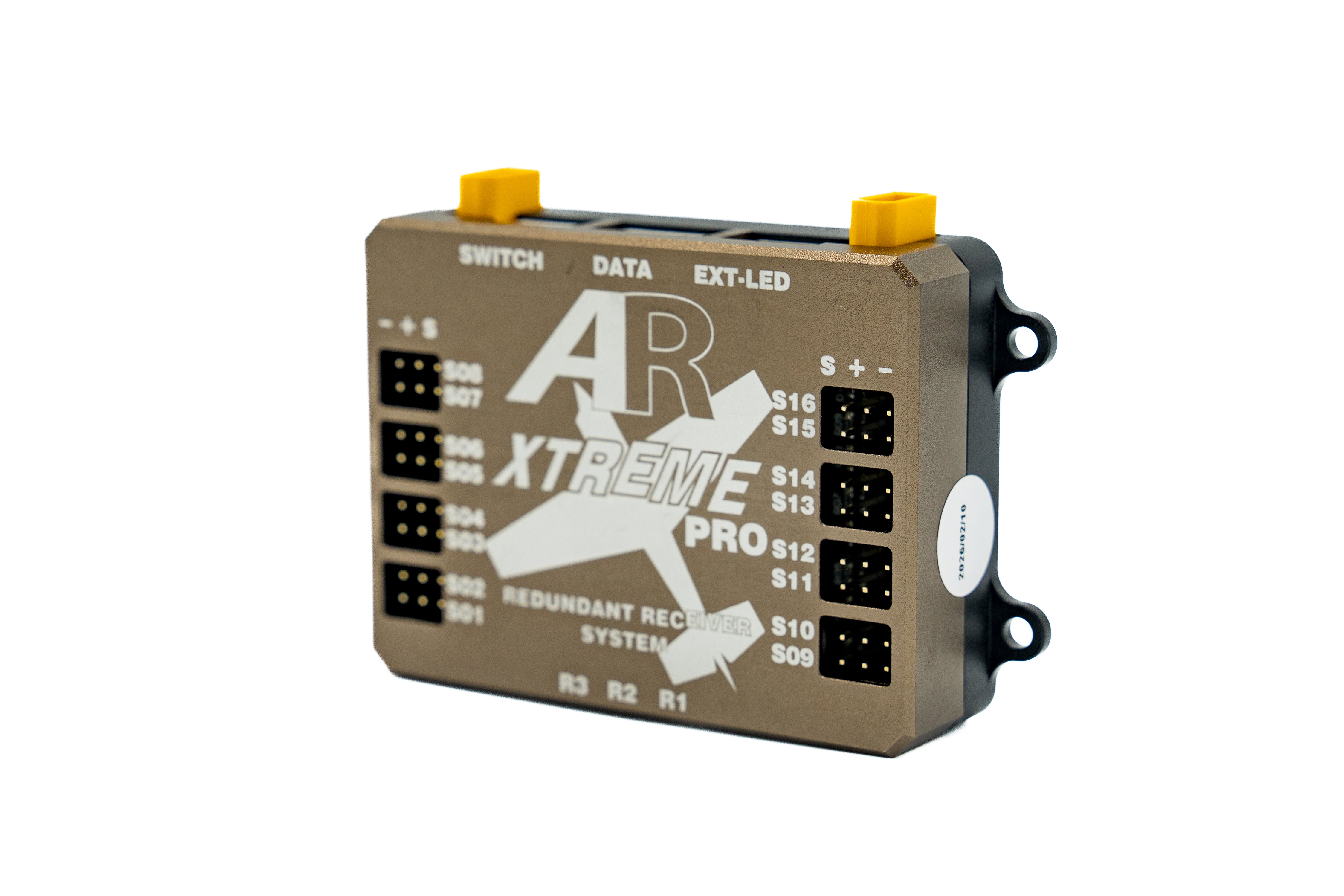

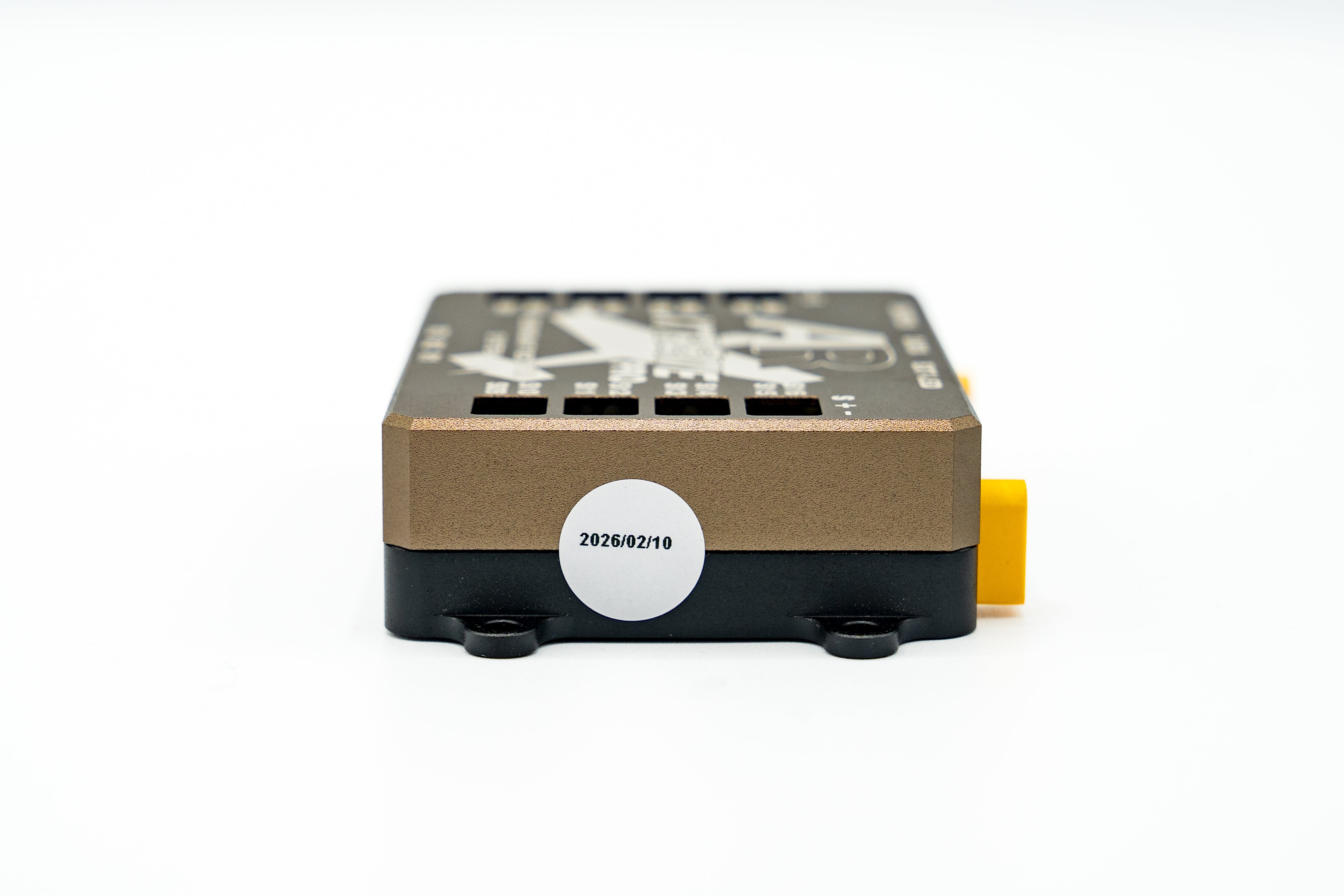

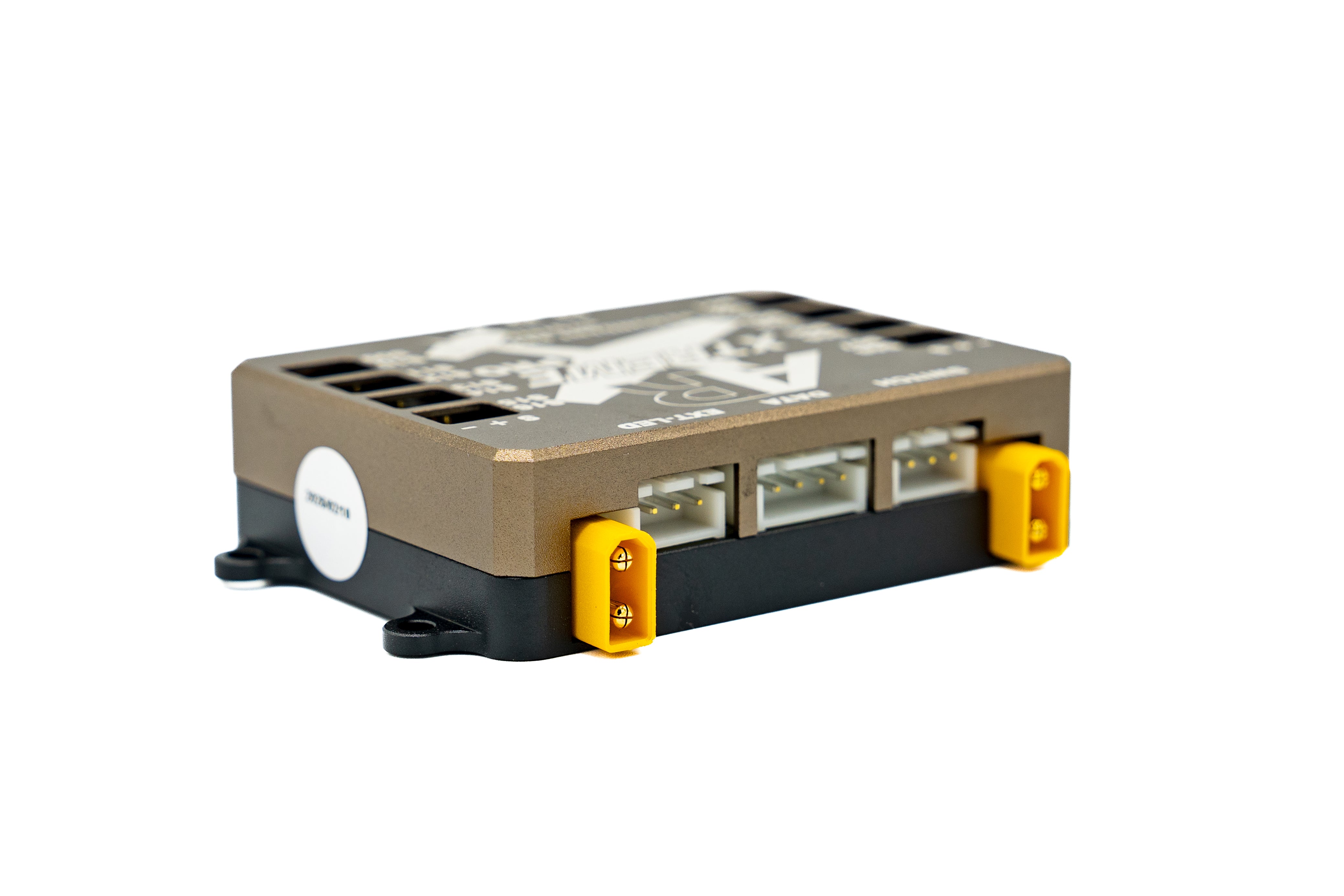

• 1 × AR Xtreme Pro Power & Distribution System

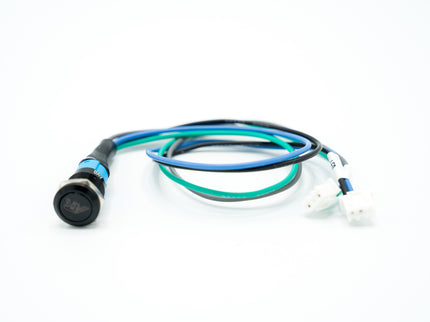

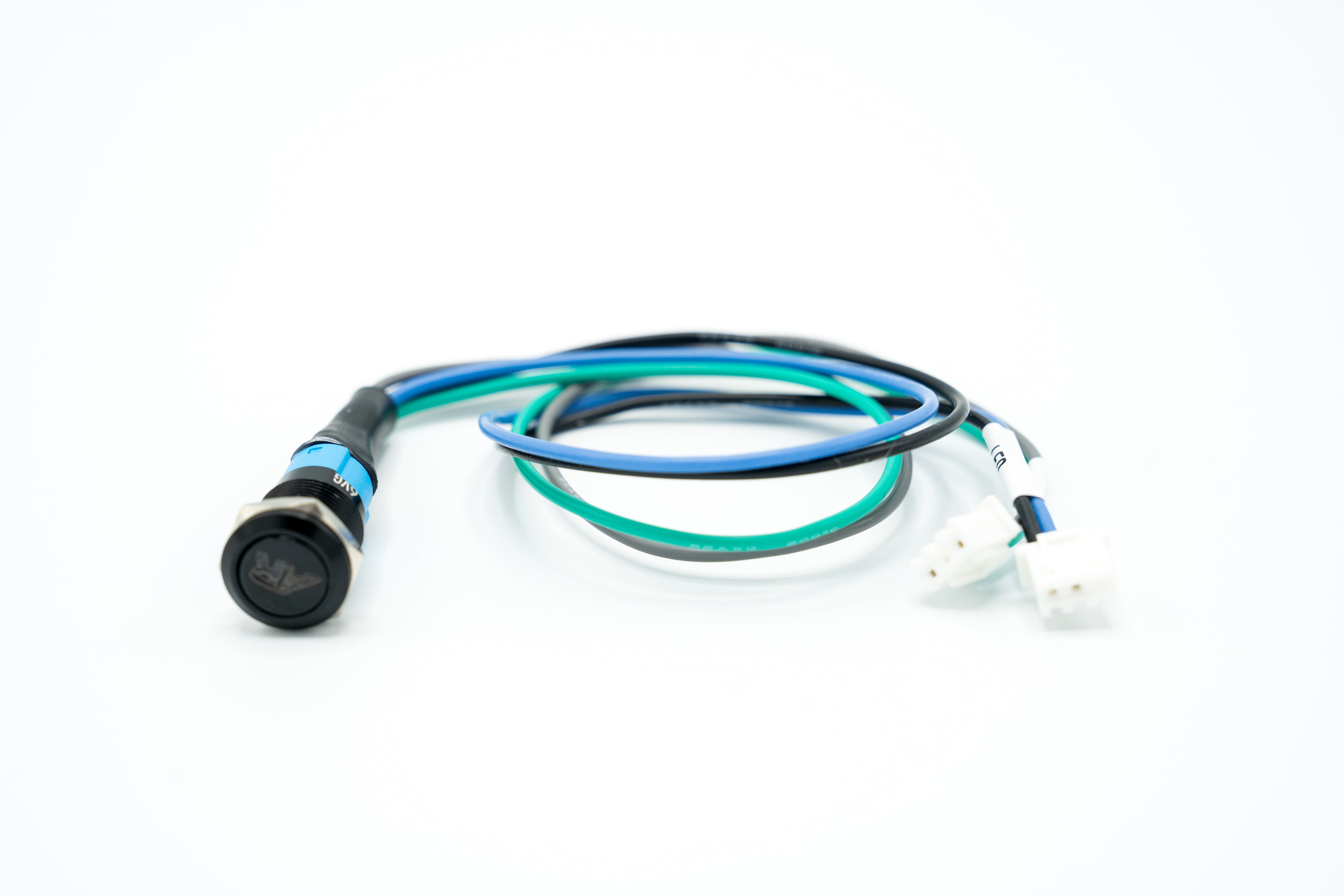

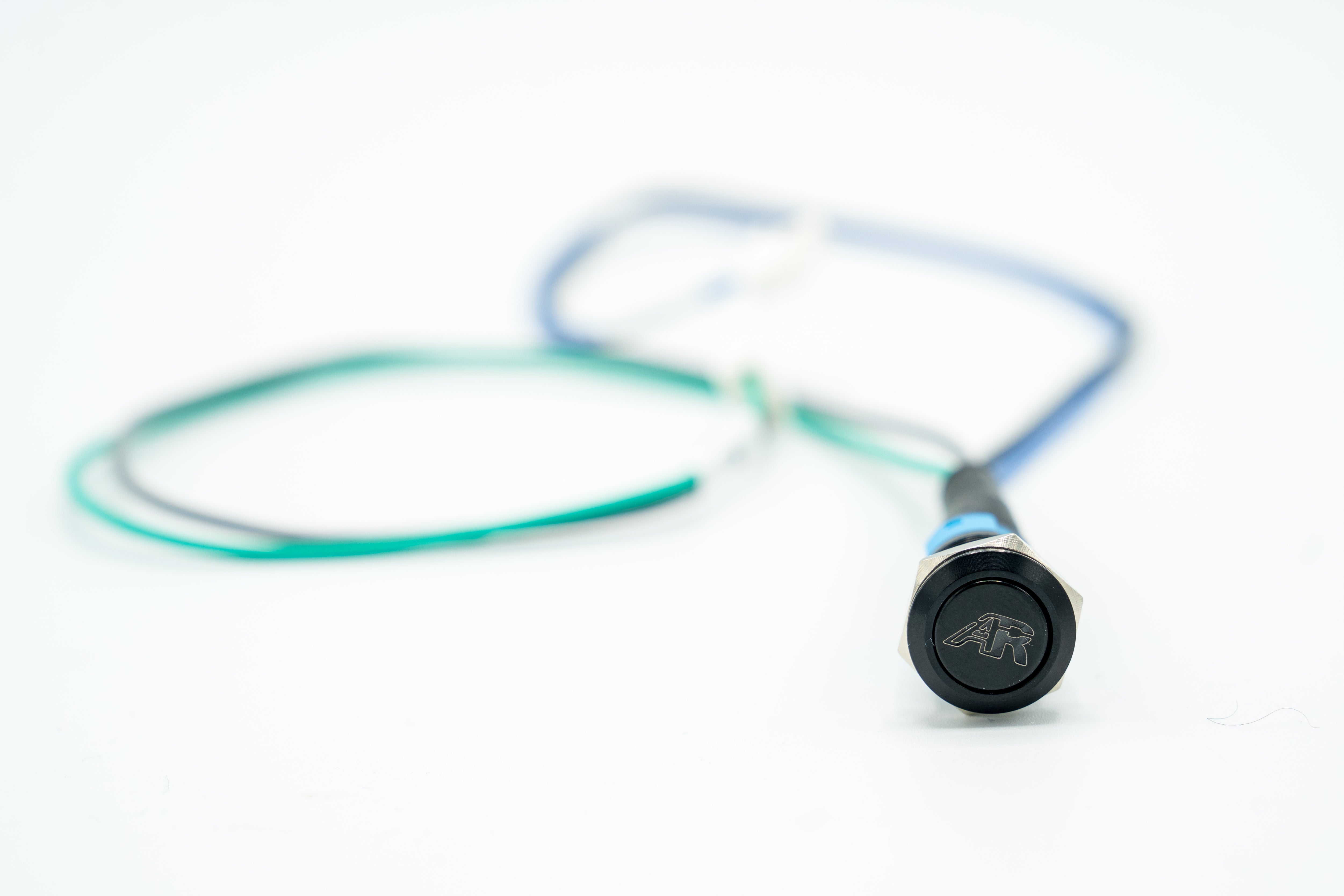

• 1 × Push Button Switch Actuator with LED

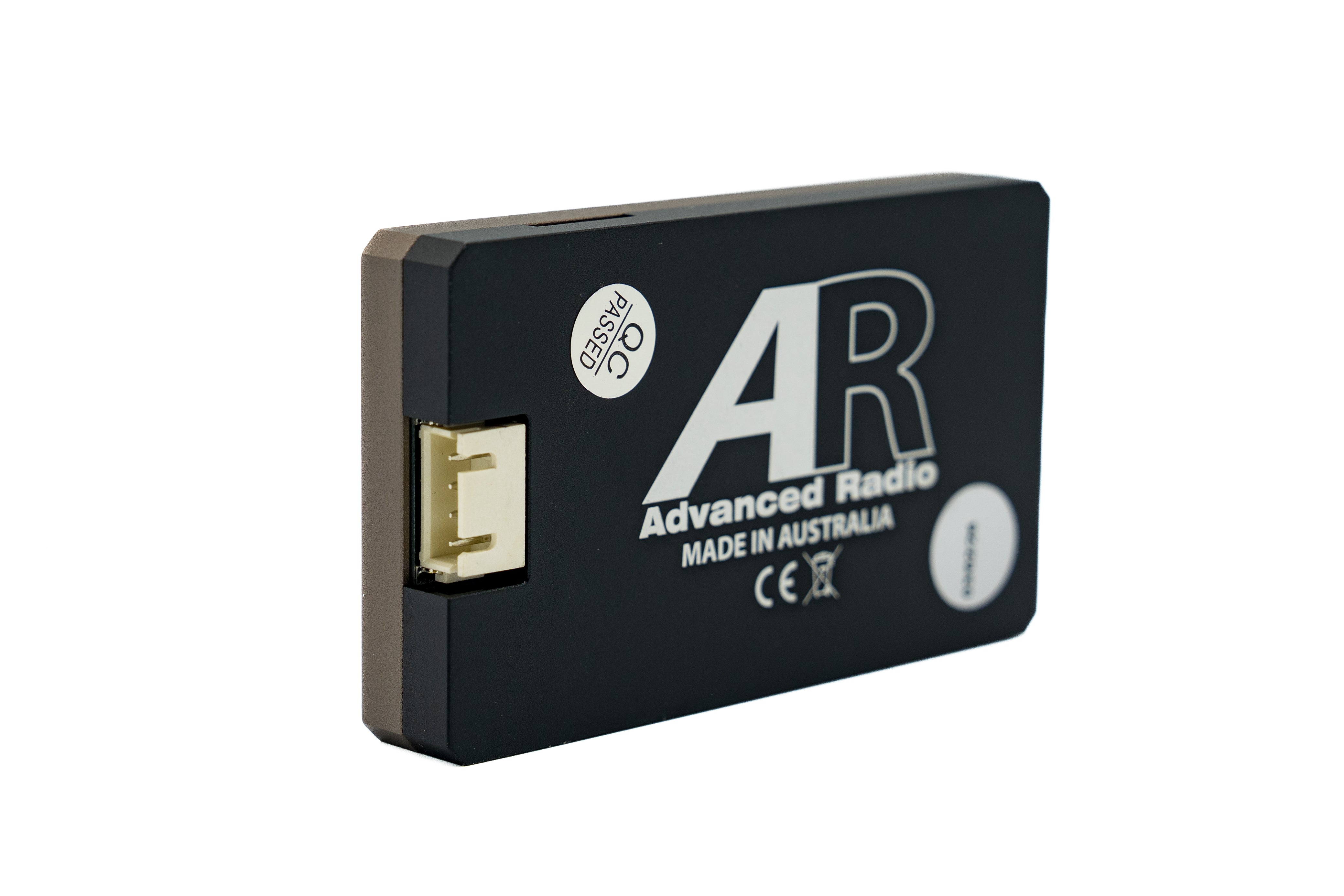

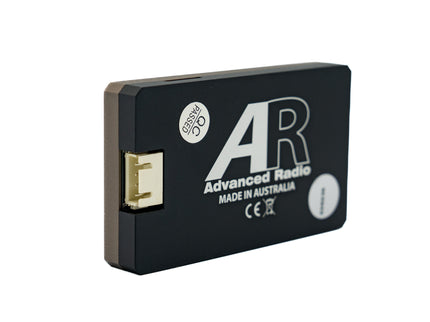

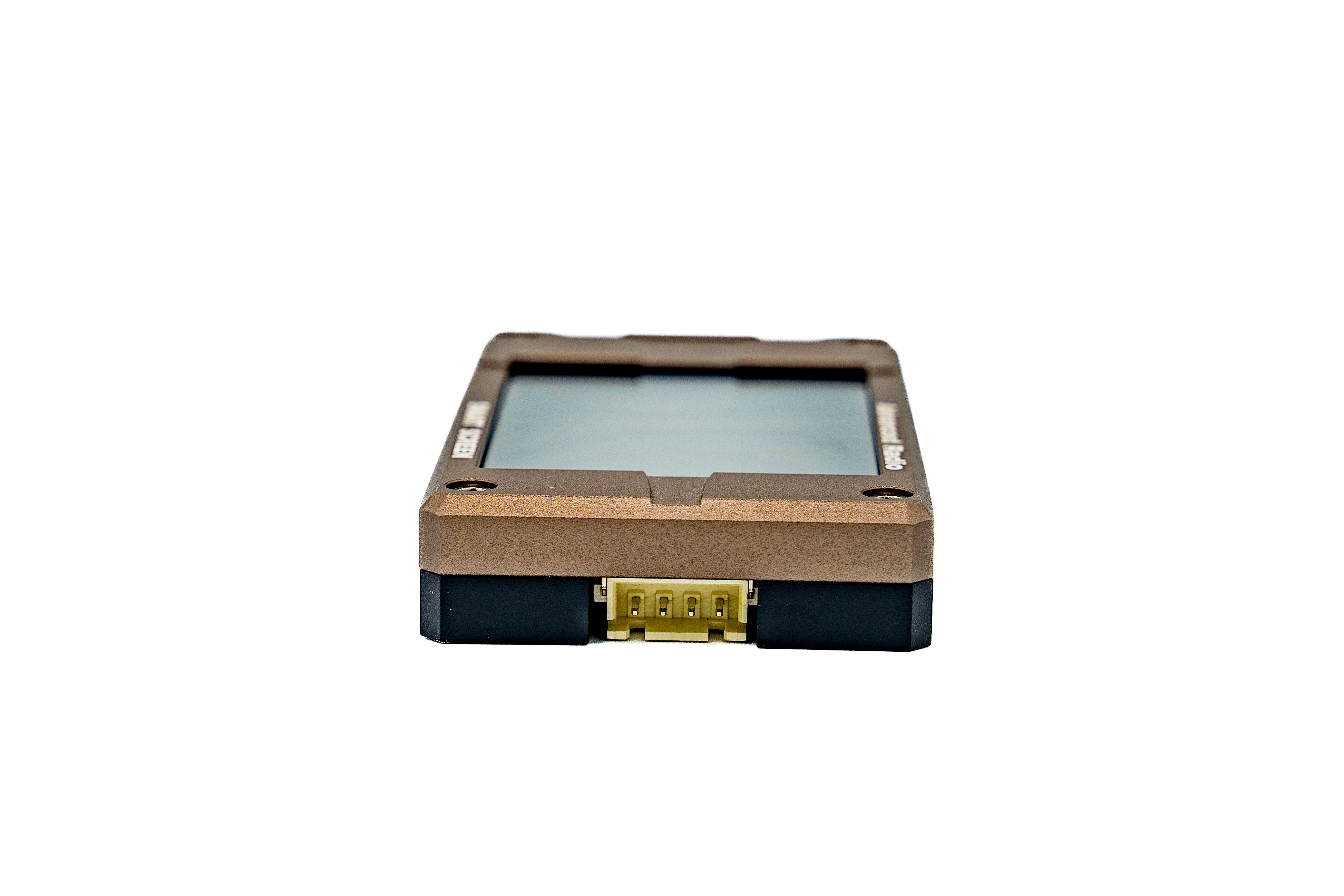

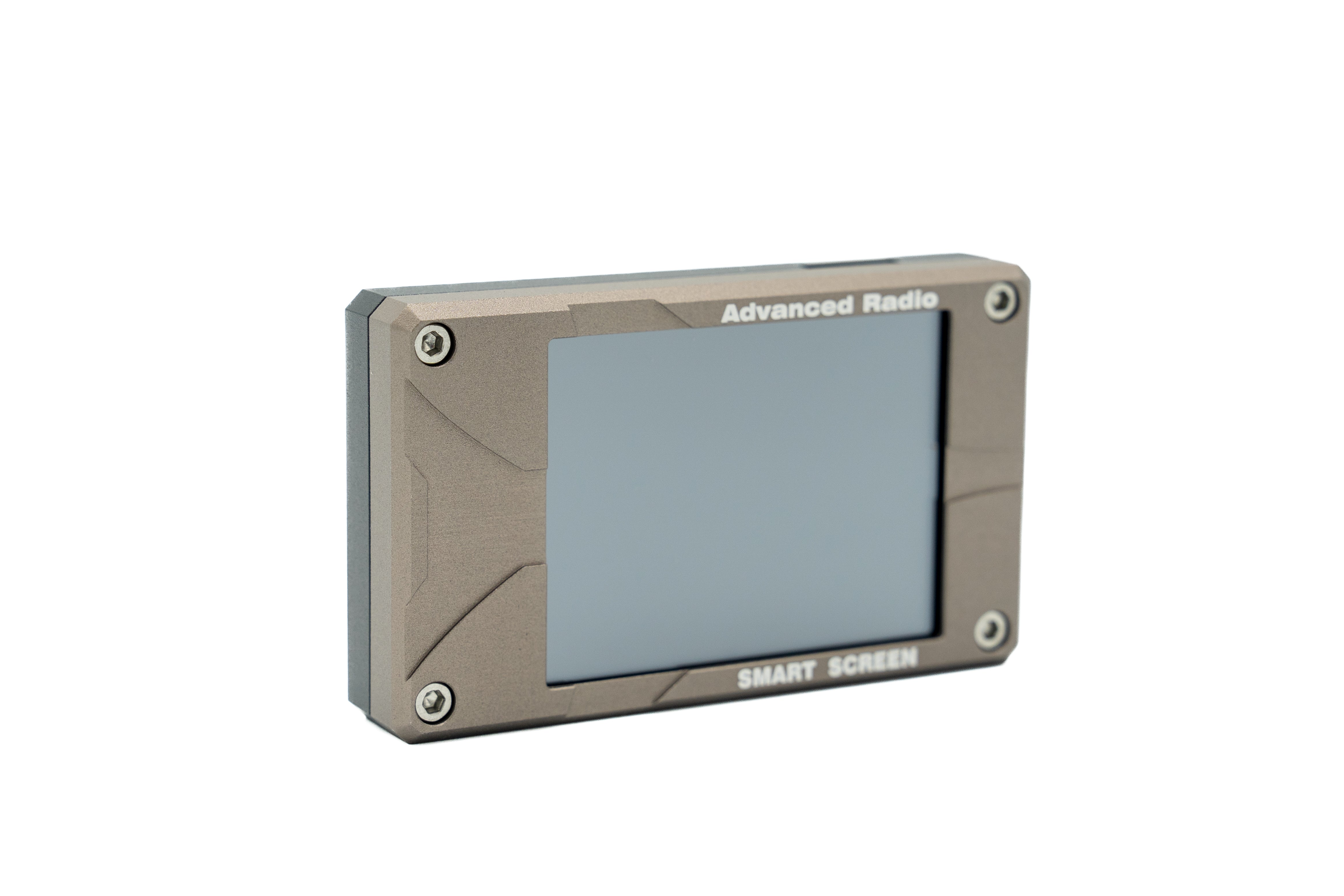

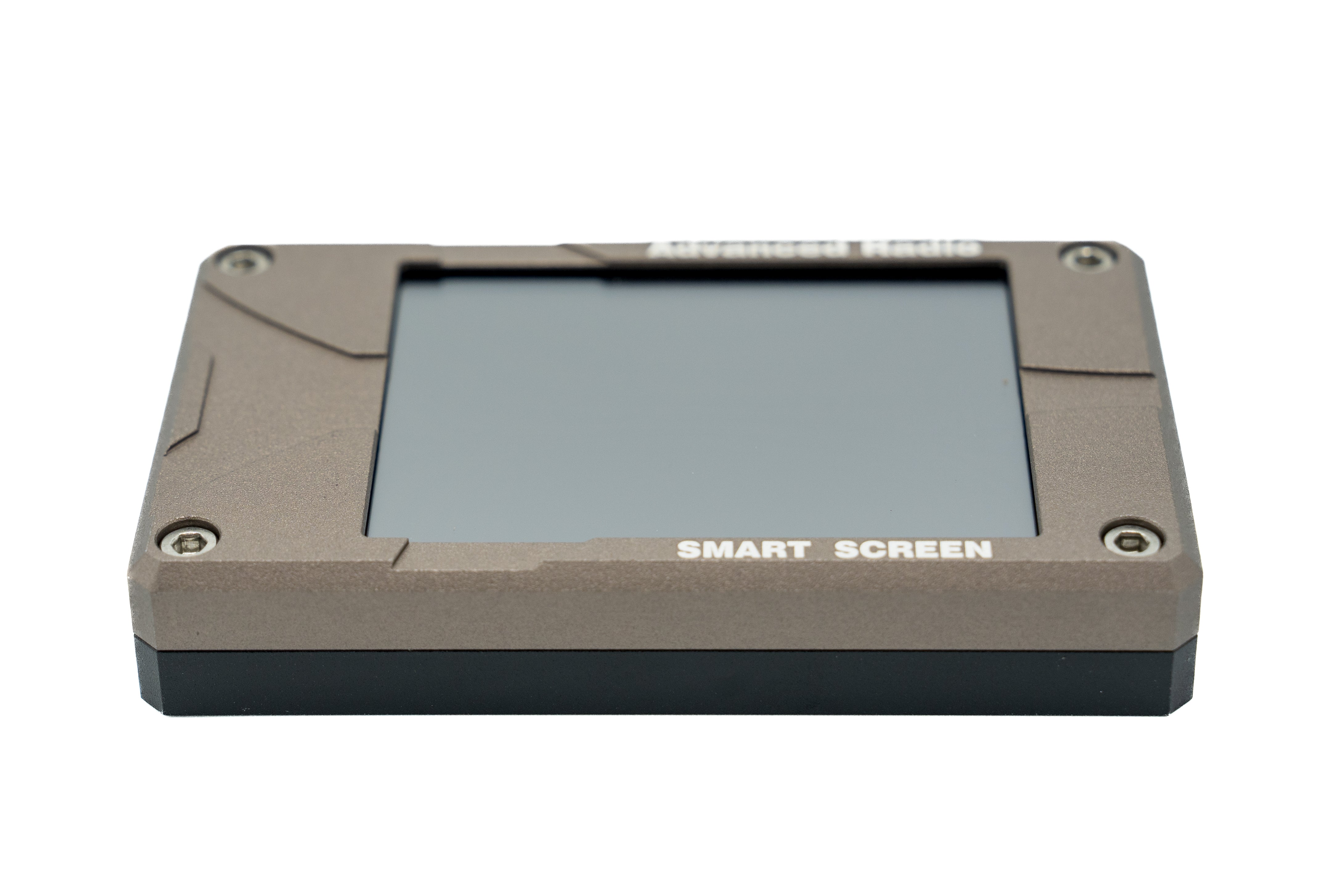

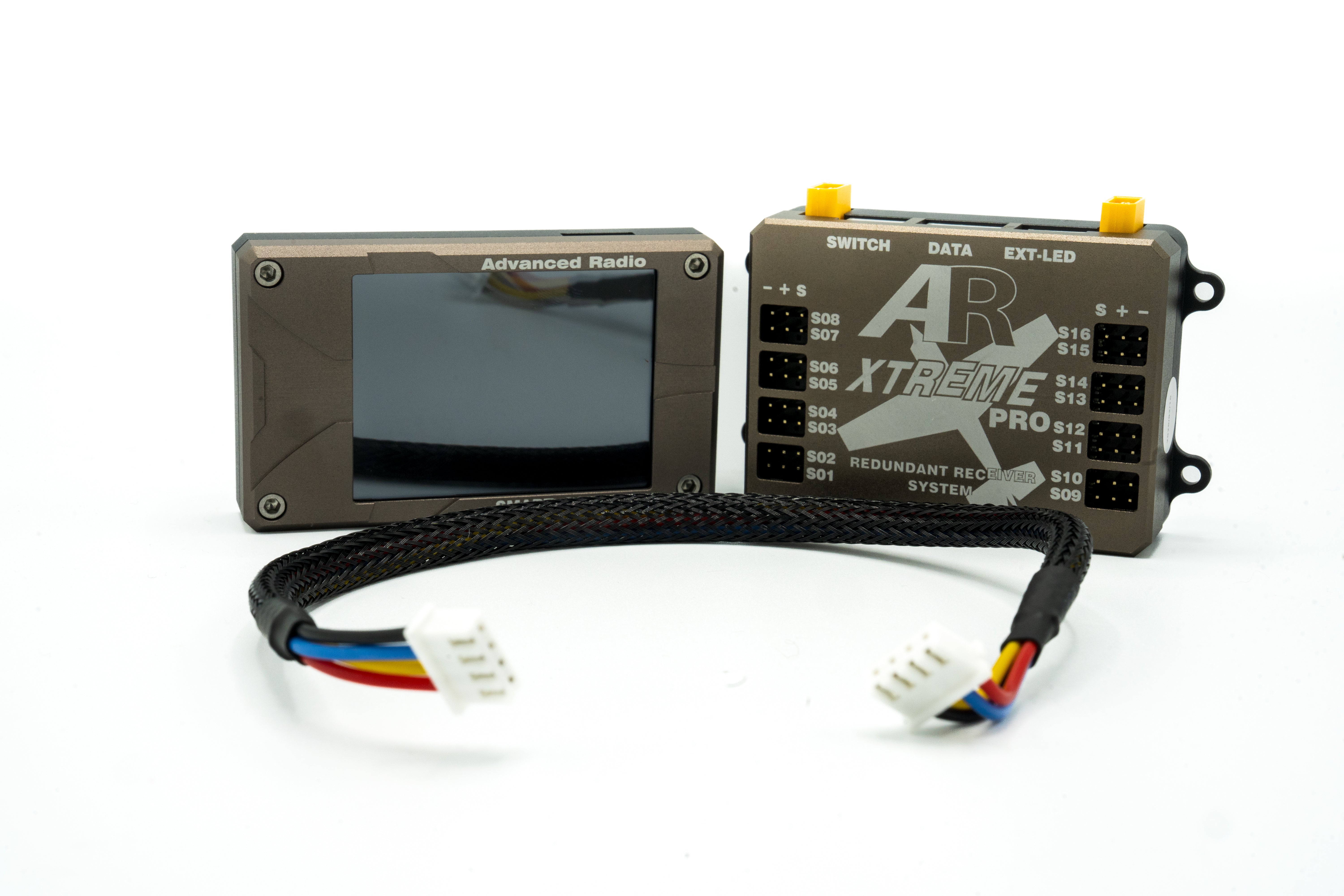

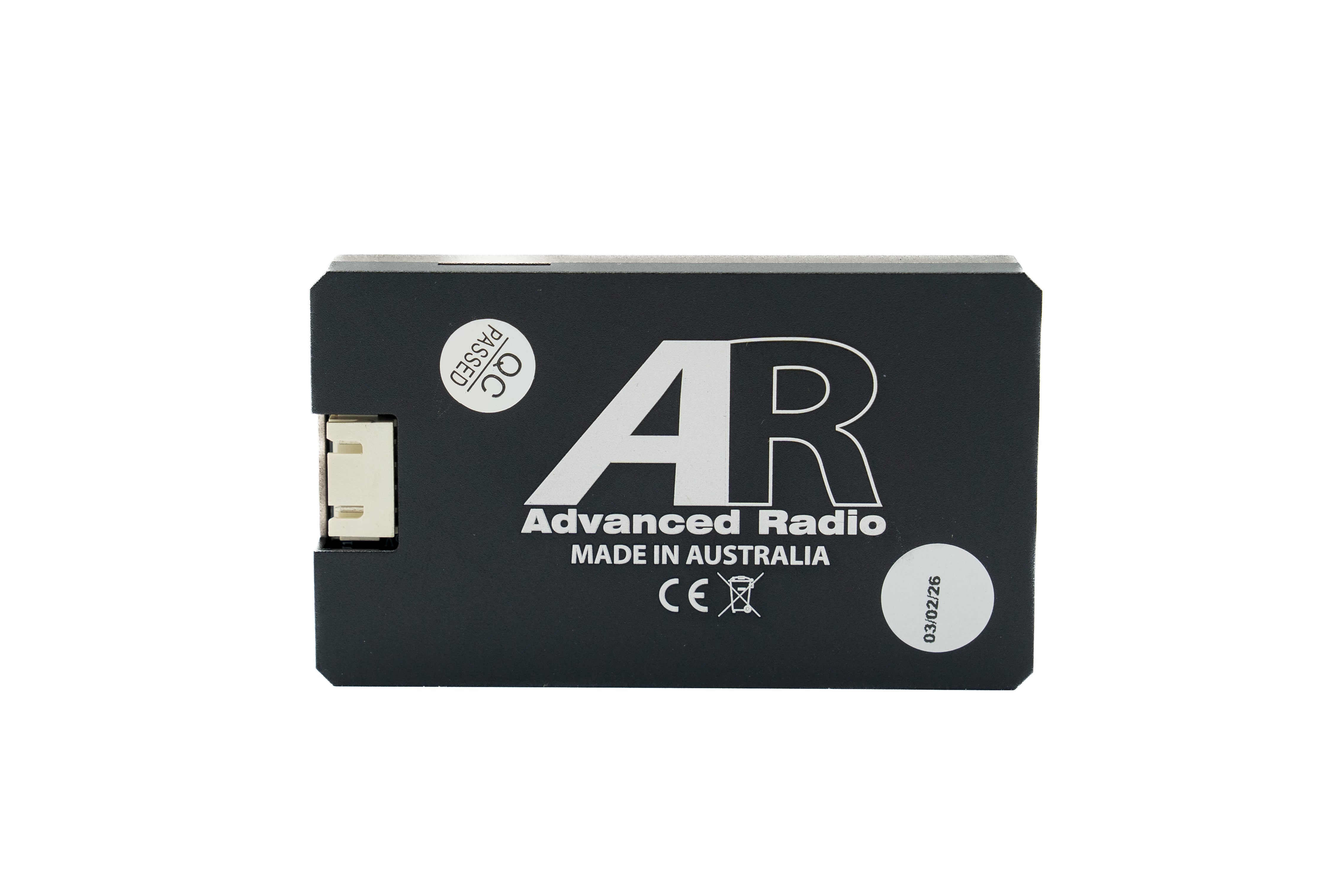

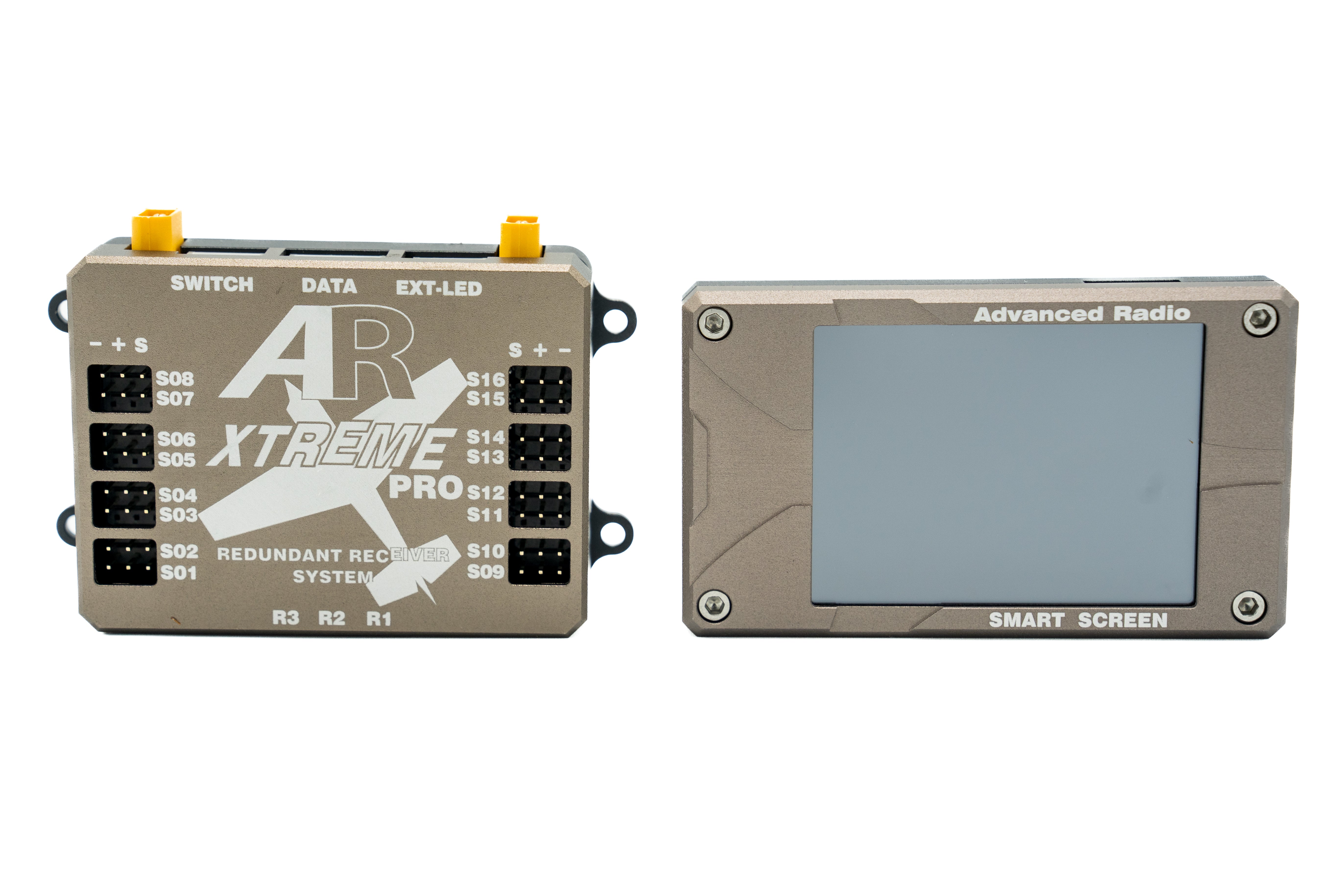

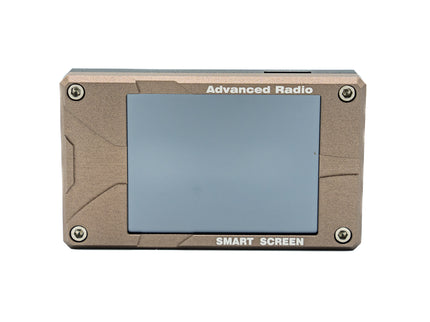

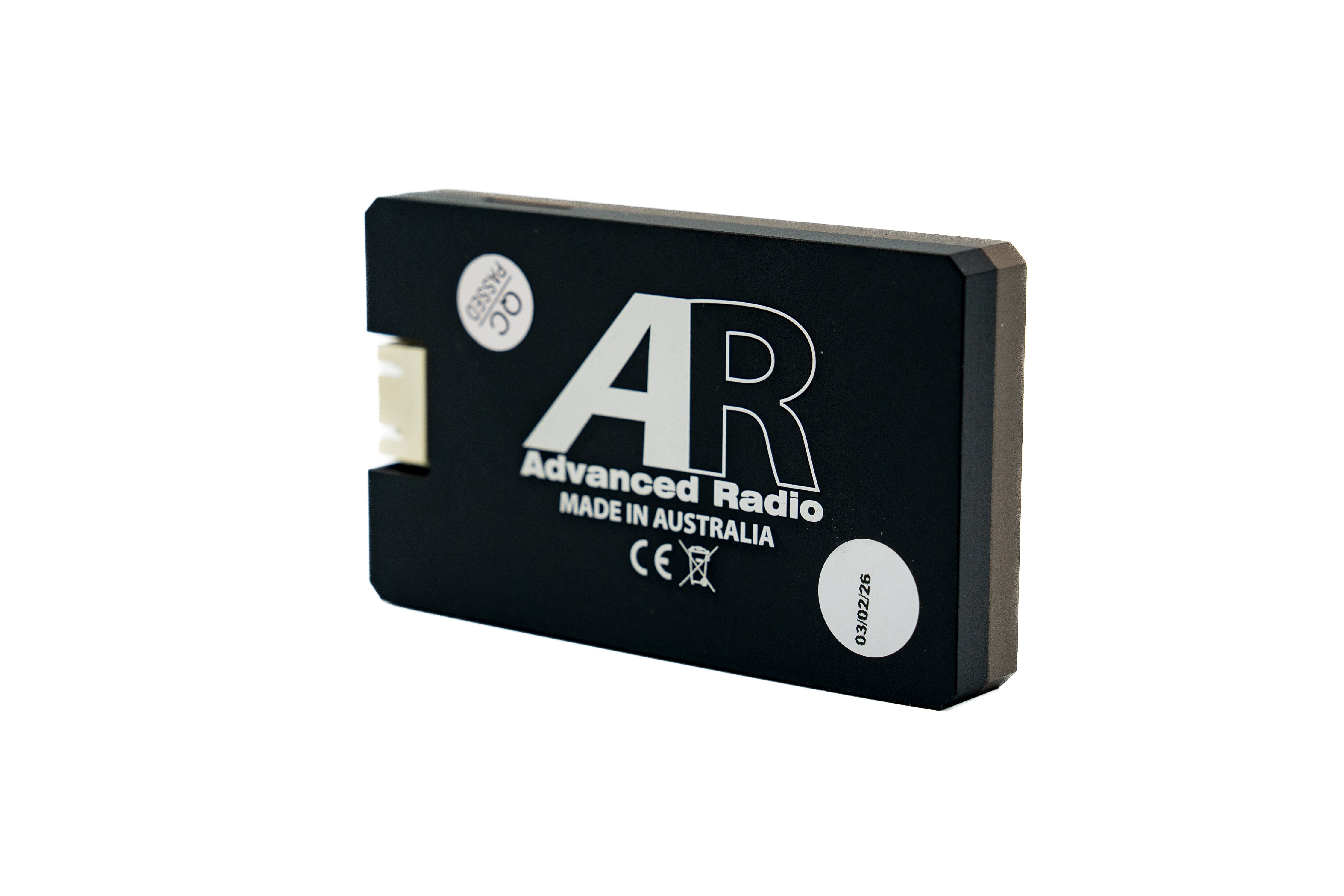

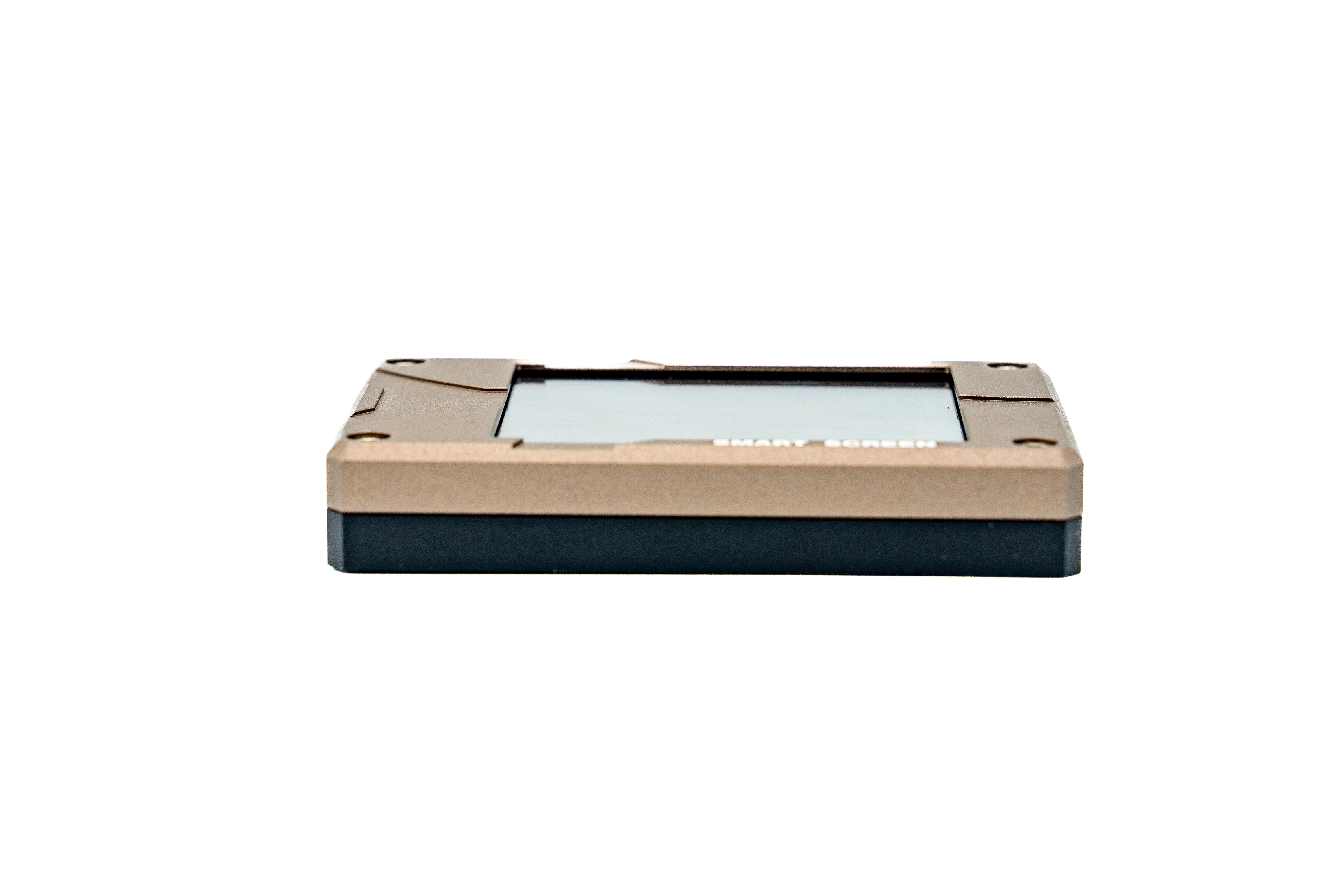

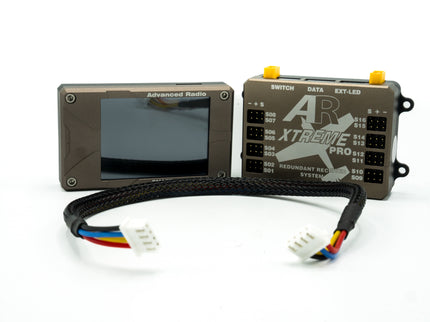

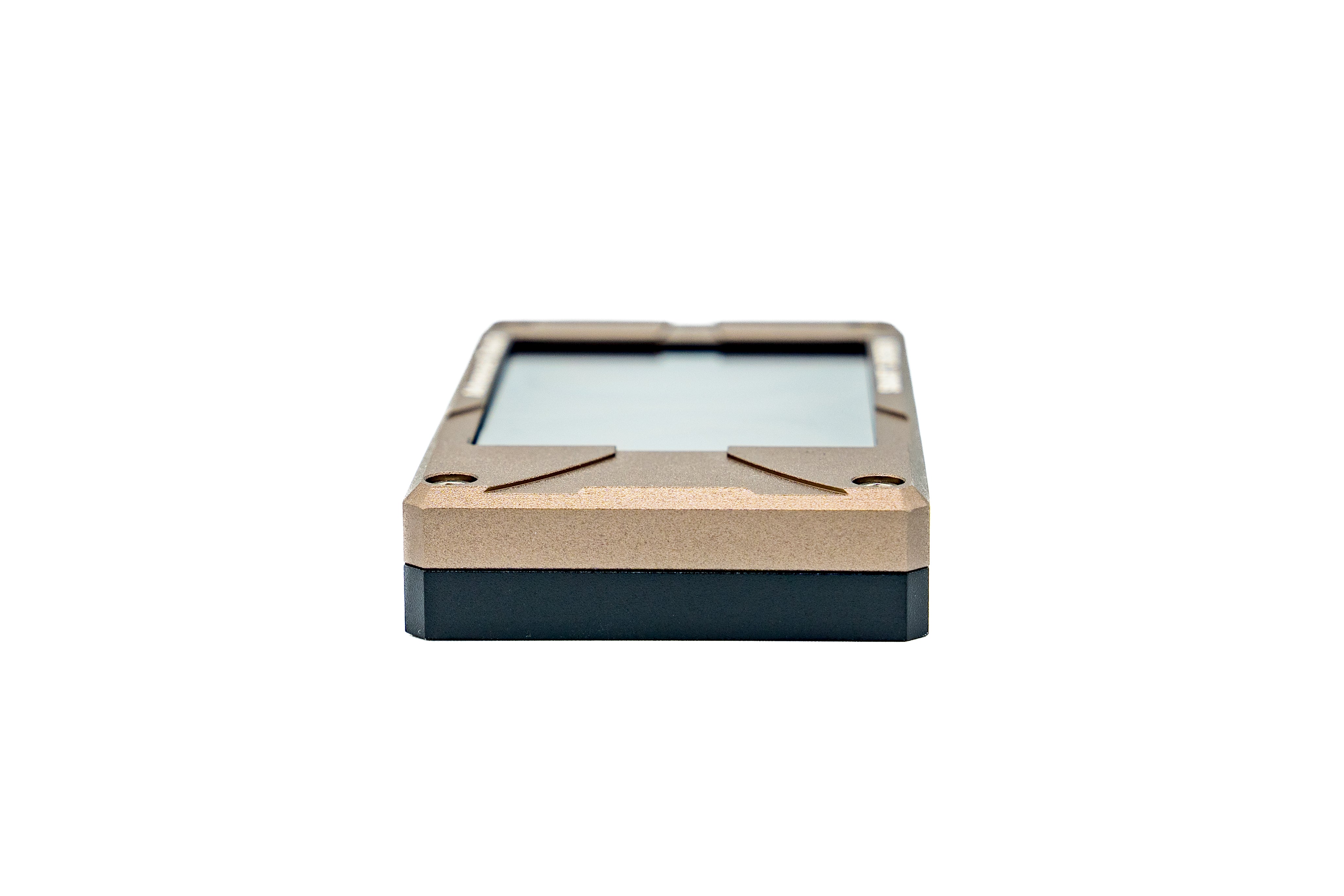

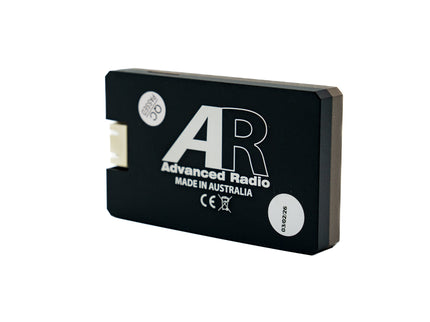

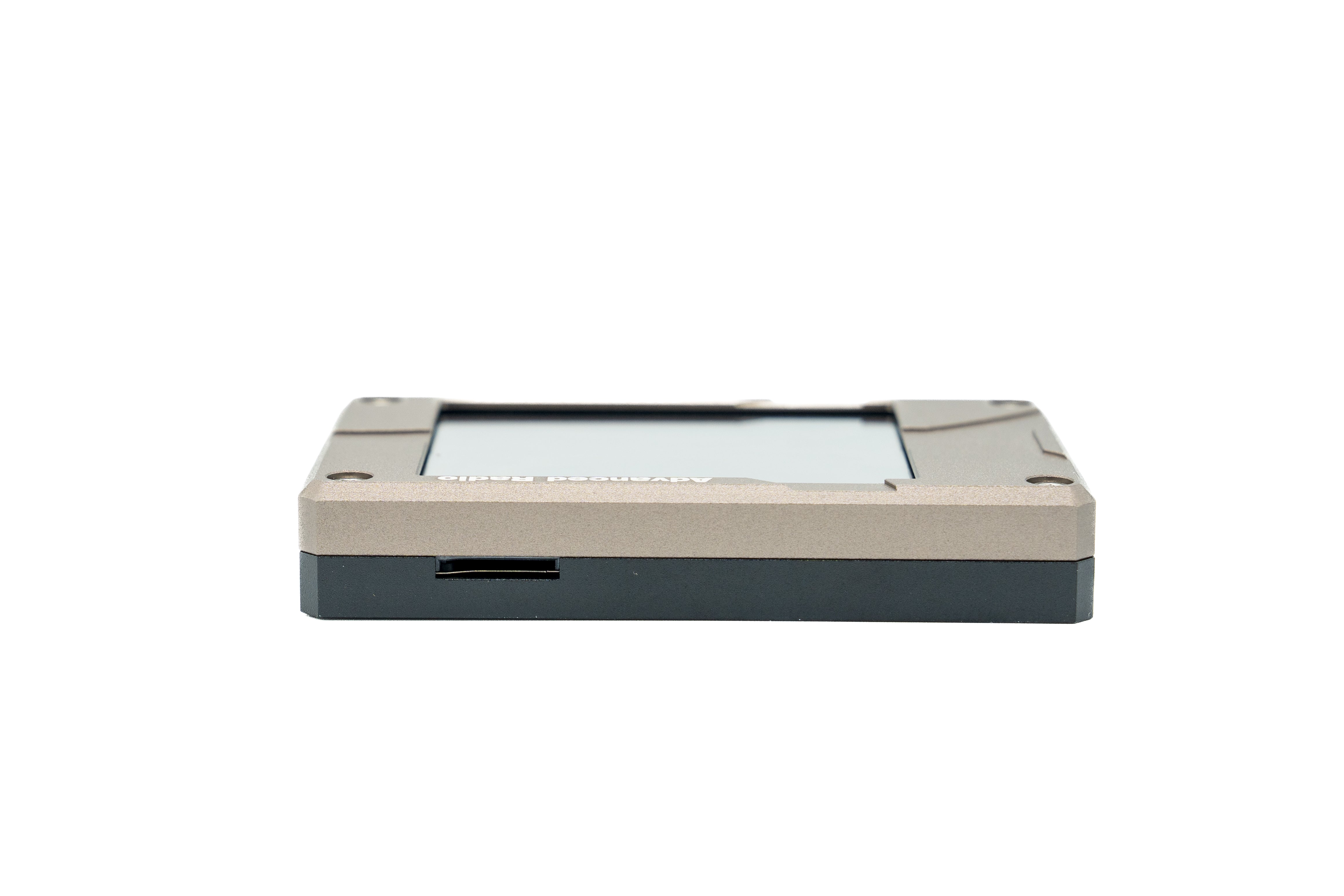

• 1 × 2.4” Colour Touchscreen Smart Display

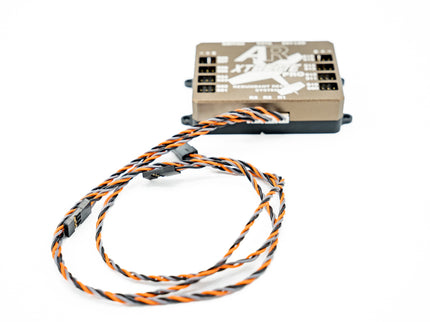

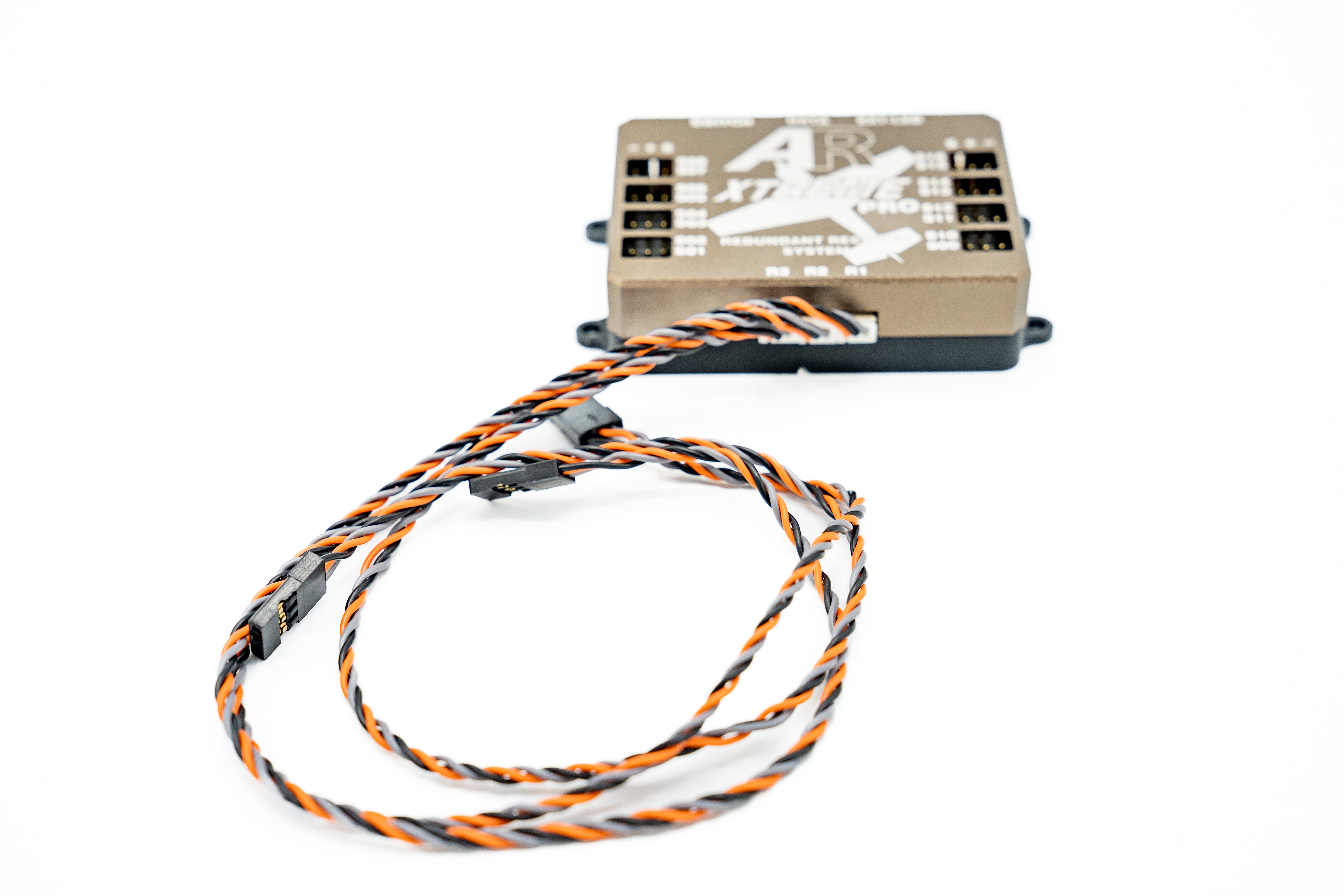

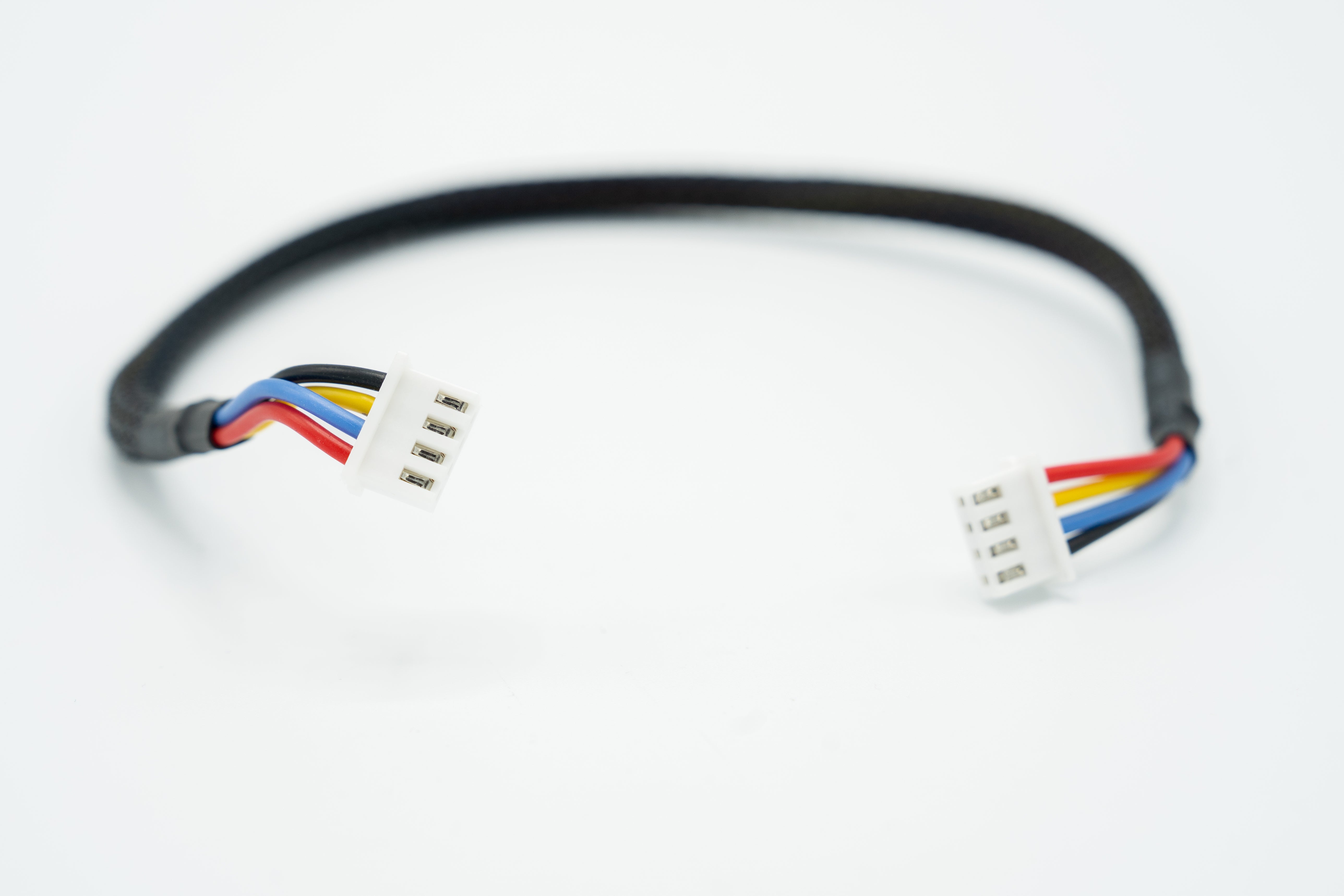

• Required connection cables

Key Features:

• 16 Freely Assignable Outputs – Fully programmable and matchable

• Receiver Redundancy – Dual RX input with failover switching

• 15-Point Servo Matching – Ultra-precise servo sync

• Push Button LED Switch – Secure, easy power activation

• Telemetry Ready – Real-time voltage, current, capacity reporting

• Auto Protocol Switching – Fast setup across major brands

• Works with Single or Dual Batteries – With diode redundancy

• Sub-Trim & Servo Reversing on All Outputs

• Multi-Protocol Support – S.Bus2, SRXL2, XBus, HoTT, EXBus, Spektrum

• Multi-Match Technology – Assign channels freely

• Secure Start-Up Personalization – Custom boot screen option

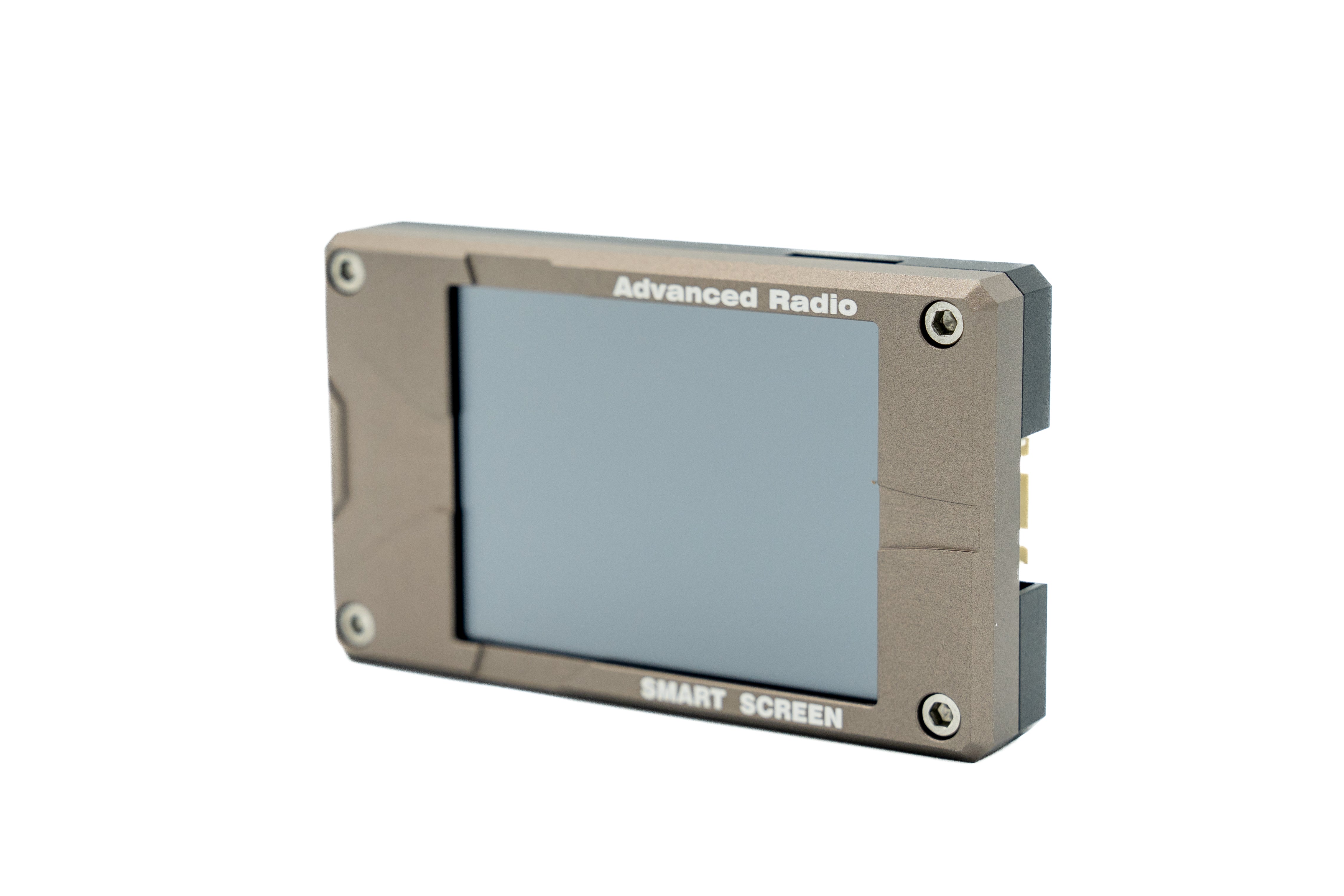

• Vibrant 2.4" Colour Touchscreen – Simplifies programming and monitoring

• High-Power Ready – Handles modern digital servos with ease

Technical Specifications:

• Outputs: 16 programmable channels

• Input Channels: 16

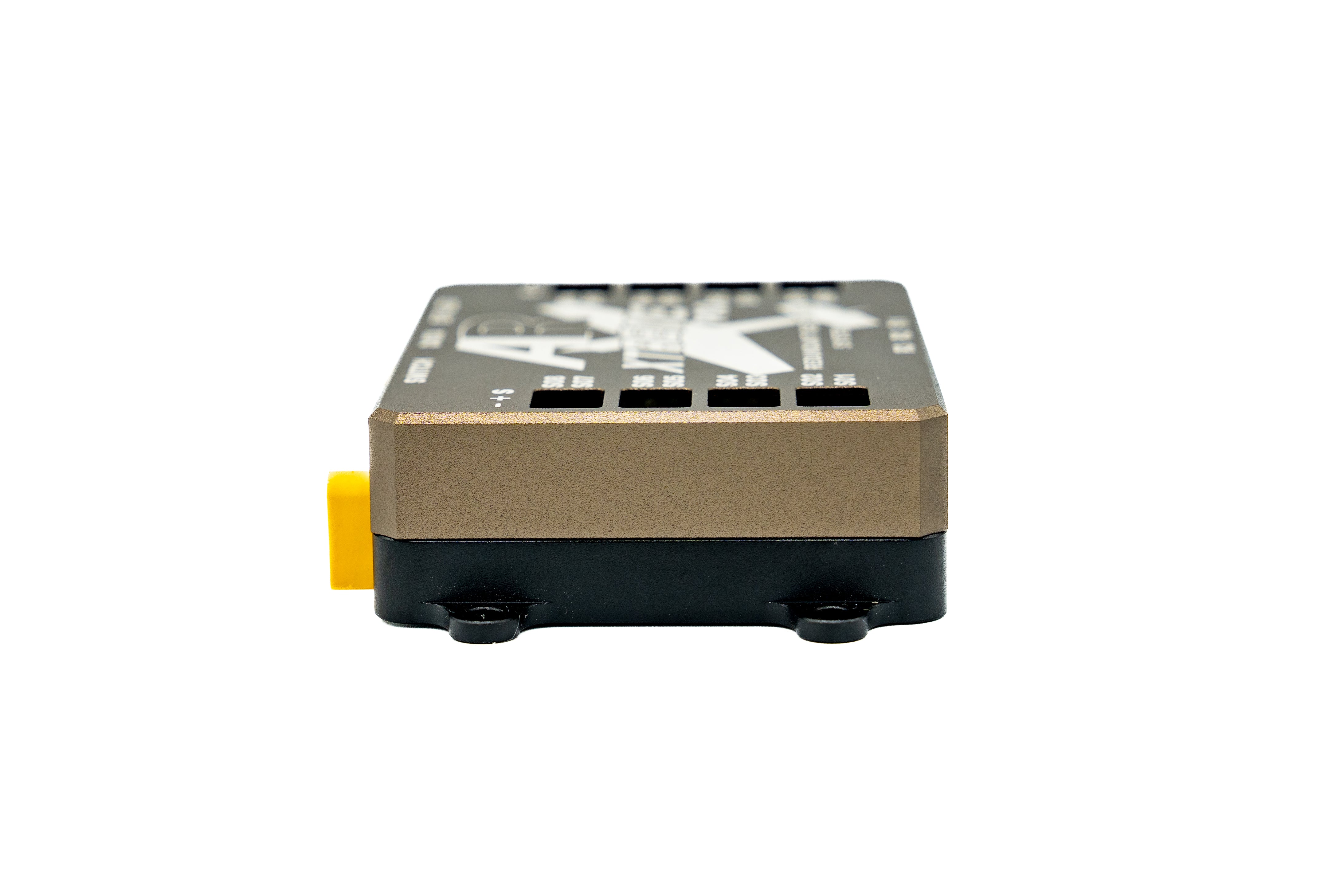

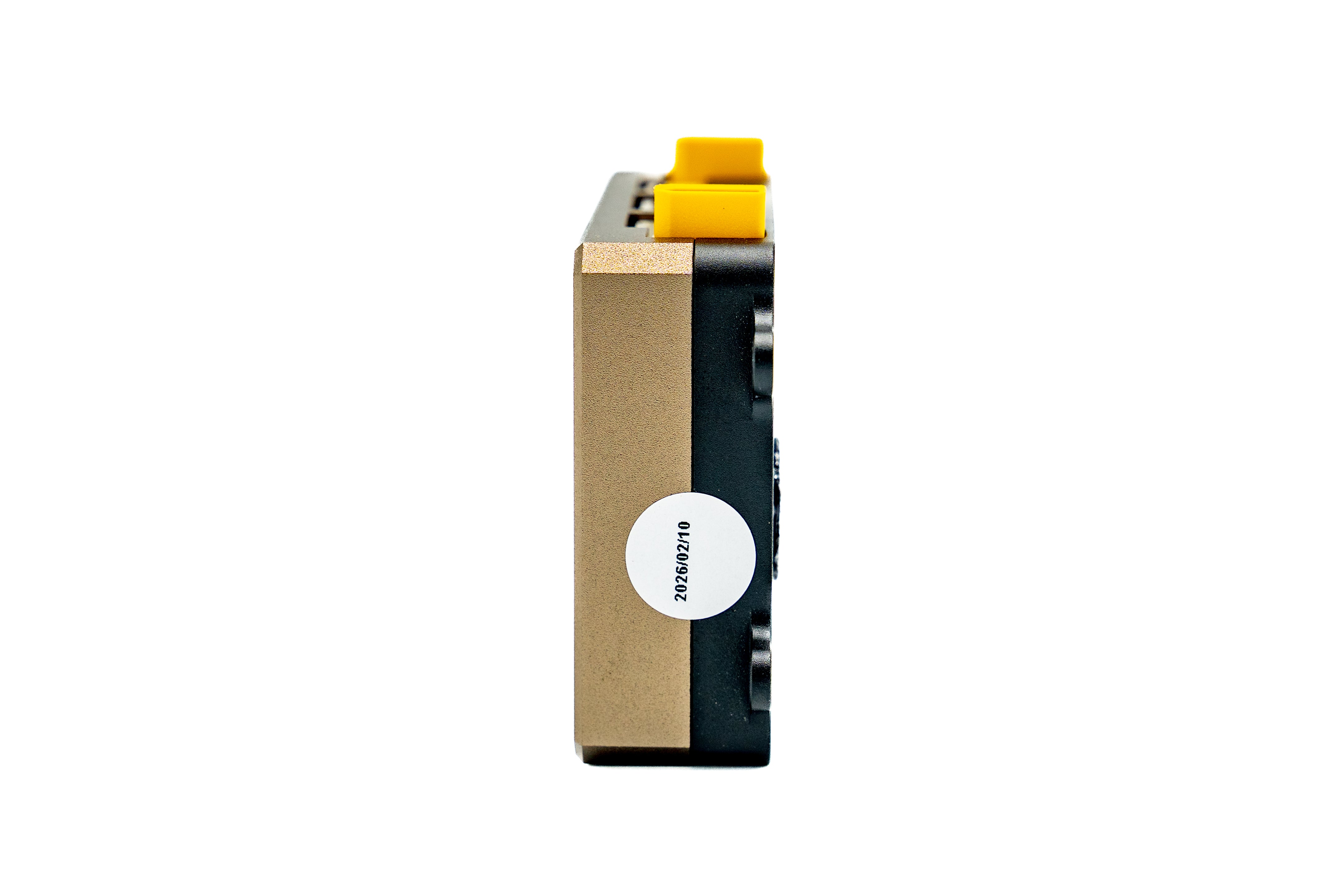

• Dimensions (Unit): 66mm × 49mm × 18.5mm (2.59” × 1.92” × 0.47”)

• Weight (Unit): 59g (without screen)

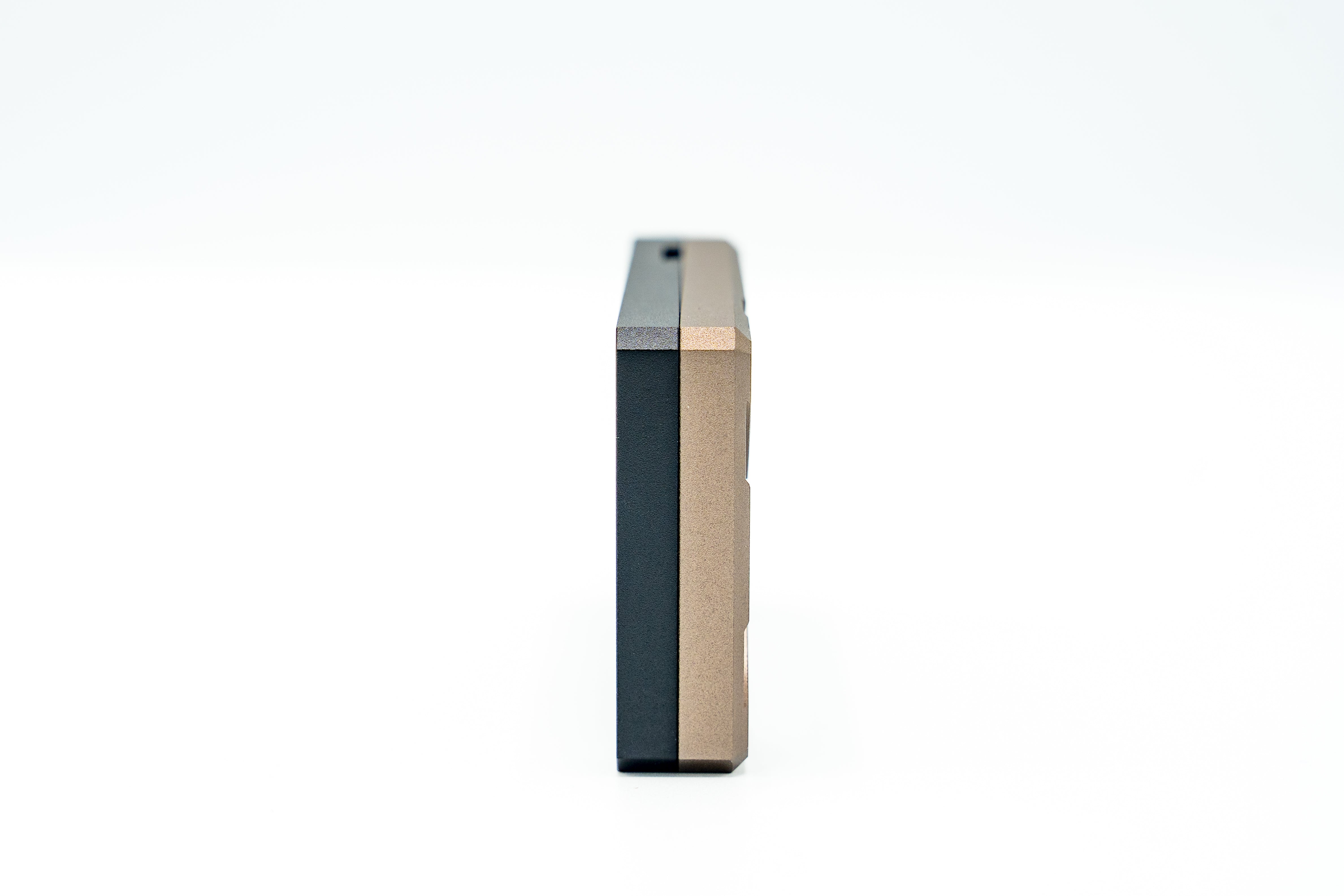

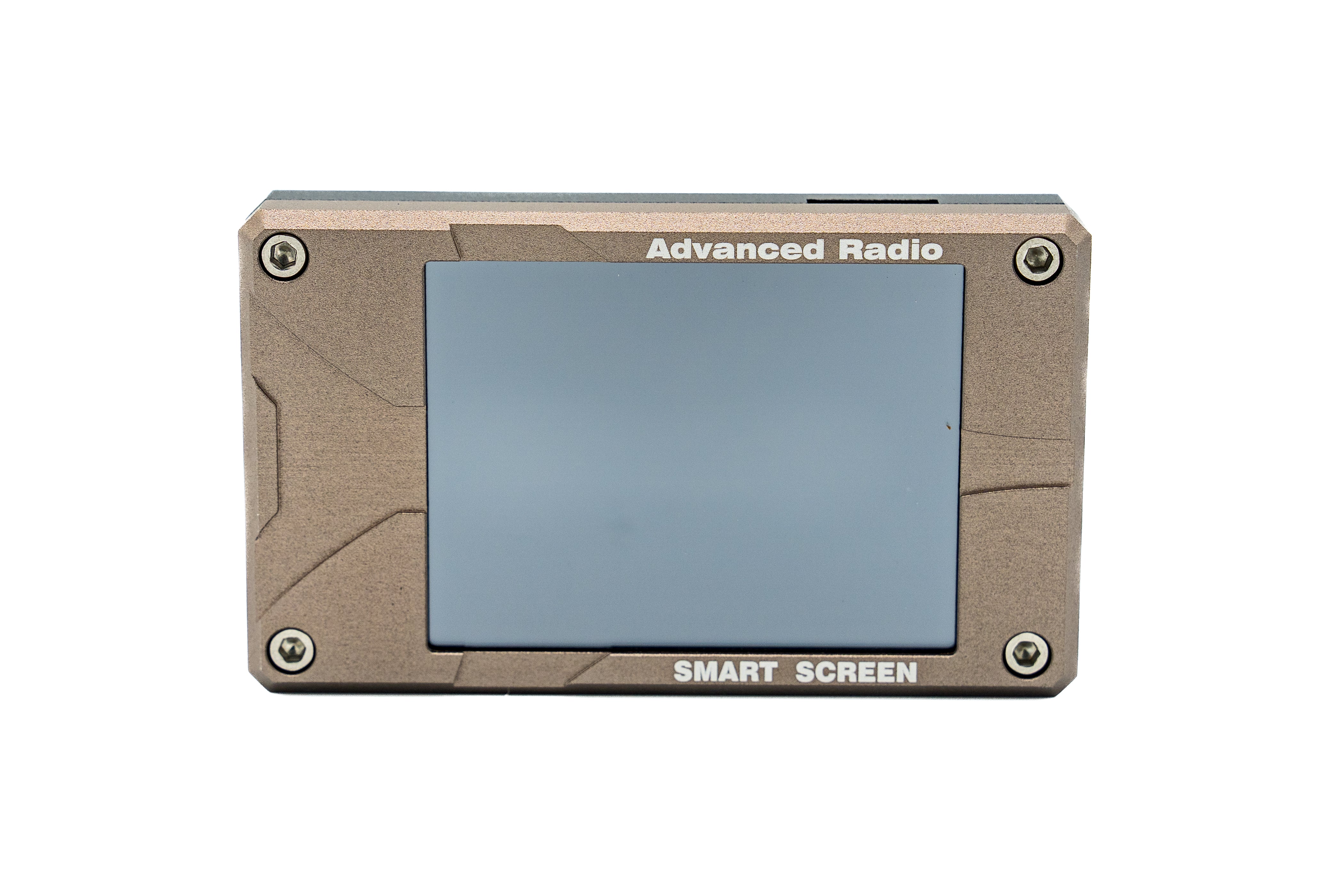

• Screen Dimensions: 86mm × 50mm × 12mm (3.4” × 2.0” × 0.5”)

• Touchscreen: 2.4” full-color, 64k colour

• Battery Chemistries Supported: LiFe, LiPo, Li-Ion

• Protocols Supported: S.Bus, S.Bus2, SRXL2, EXBus, HoTT, JR XBus, Spektrum, FrSky, CORE

View the Xtreme Pro Users Guide PDF file
