Description
The 411:
- Wing Span - 73"
- Length - 68.5"
- Height - 20"
- Wing Area
- Double Taper Wing (1027 sq in)
- Straight Leading Edge Wing (1019 sq in)
- AUW (dry) - 10.5 lbs.
- Gas Power
- Engine - 30cc - 40cc
- Fuel Tank - 12oz - 14oz
- Propeller - 20x8 / 20x9
- Electric Power
- Motor - 2400+ Watt 8S/12S
- ESC - 100amp
- LiPo - 8S 4400mAh / 12S 3300mAh
- Propeller - 20x10
- Radio - Recommended 5 channel with 4 high torque servos, 1 high speed throttle servo
- IMAC Legal!
Recommended CG Range and Control Throws
- The center of gravity (CG) range for the 73" Raven is located 1" in front of the wing tube (+/- 1/2")
- Aileron Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 30 deg. (40% Exp)
- High Rates - 45 deg. (50% Exp)
- Elevator Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 30 deg. (40% Exp)
- High Rates - 45 deg. (50% Exp)
- Rudder Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 30 deg. (40% Exp)
- High Rates - Max Throw (50% Exp)
What's in the box:
- NEW - Carbon-Kevlar plywood construction!
- NEW - Carbon-Kevlar reinforced landing gear mount!
- NEW - Carbon-Kevlar reinforced firewall!
- Carbon fiber main landing gear
- Carbon fiber tail gear
- Carbon fiber main wing tube
- Pre-hinged, glued and sealed aileron control surfaces
- Pre-hinged rudder and elevator
- G10 fiberglass control horns
- Ultralight foam wheels
- Heavy duty steel axles
- Quick install, durable fiberglass wheel pants
- Pre-run rudder pull-pull wires (pushrod also included for push-pull option)
- Extra hardware bag with spare parts
- Optional SFGs included
- Foil main wingbag
- Removable rudder
- Canister muffler tunnel with mounts
- Pre-drilled & rubber lined landing gear cuffs
- Firewall drilling templates for common engines
- High quality ball links & turnbuckles for all control surfaces
- Velcro for fuel tank or battery restraint
- All airframe components covered in genuine Ultracote, available in 2 color schemes
- Red Scheme (True Red HANU866, White HANU870, Silver HANU881, Charcoal Pearl HANU846)
- Lime Scheme (Apple Green HANU903, White HANU870, Silver HANU881, Charcoal Pearl HANU846)
NOTE: This product is shipped in two separate boxes.
The main box measures 61"L x 21"W x 11"H (27 lbs. total), The cowl box measures 12"L x 11"W x 11"H (3 lbs. total).
AJ flies this airframe with the following equipment:
- AJ5230-20P/205KV 12S
- Falcon 20x10 prop
- Jeti Mezon 120 or Castle Ice 100 ESC
- (2) Thunder Power 6S 3300 mAh Elite 55C LiPo main packs
- Castle Pro BEC
- Thunder Power 2S 2100 mAh G8 Pro-lite+ 25C
- Futaba 9177 servos on Elevator/Rudder
- Futaba 9452 servoc on Ailerons
Also needed to complete:
- Servo Extensions
- (2) x 6" extensions for ailerons
- (1) x 12" extension for throttle/ESC
- (1) x 24" extension for elevators
- Aluminum Servo Arms
- (2) x 1.5" single arms for ailerons
- (1) x 1.5" single arm for elevators
- (1) x 2.5" double arm for pull/pull rudder
- 3" Spinner Gas / Electric
- Fuel Tank - single 14oz (410 ml)

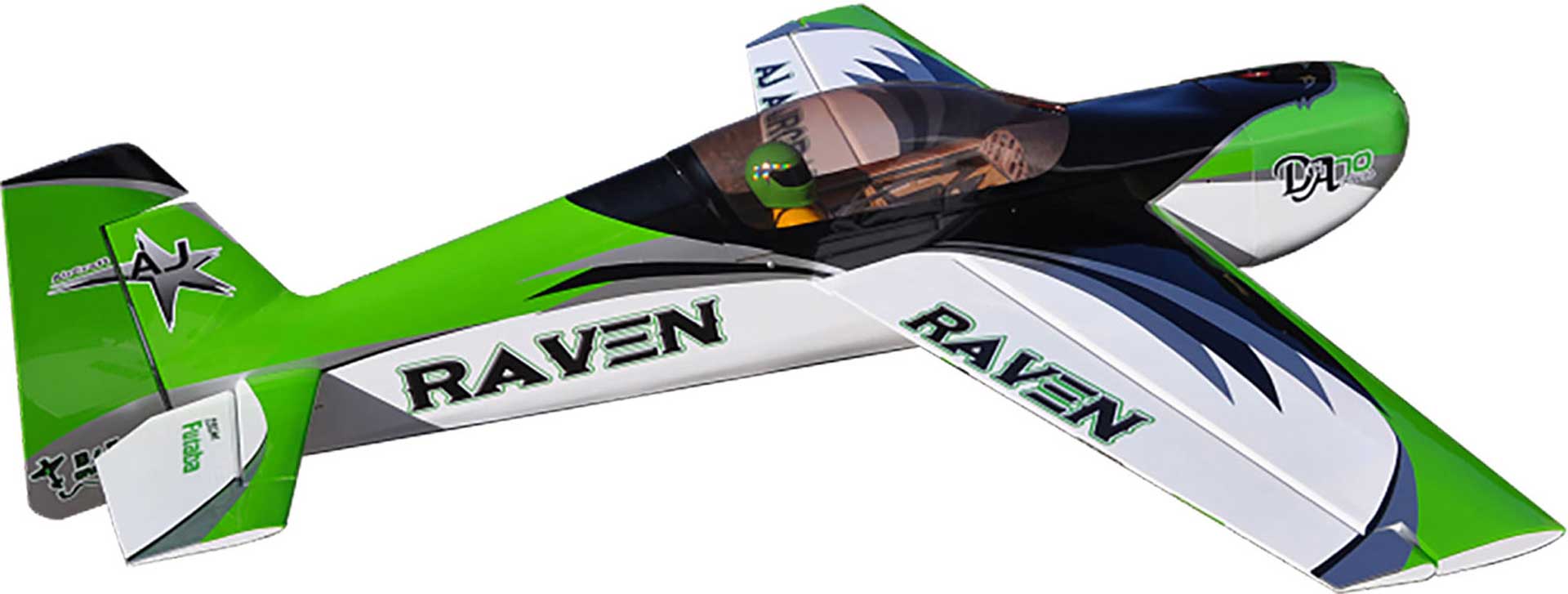

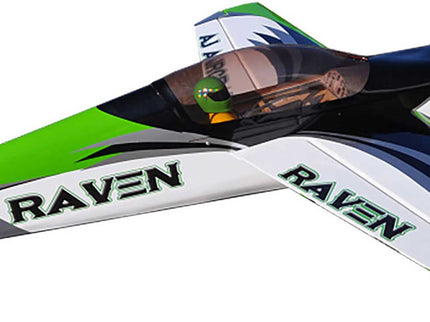

AJ Aircraft 73" Raven Green - SOLD OUT
£919.98Incl. VAT
