Description
The 411:
- Wing Span - 51"
- Length - 51"
- Height - 14"
- Wing Area - 540 sq.in.
- AUW (dry) - 4-4.5lb
- Electric Power - 850-1250 watt motor, 60 Amp ESC, 4S/5S/6S LiPo
- Radio - 5 channel with 4 high torque mini servos
Recommended CG Range and Control Throws
- The center of gravity (CG) range for the 51" AJ Slick 540 is located 1/2" in front of the wing tube. (+/- 1/2")
- Aileron Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 30 deg. (40% Exp)
- High Rates - 45 deg. (50% Exp)
- Elevator Control Throws
- Low Rates - 20 deg. (30% Exp)
- Mid Rates - 30 deg. (40% Exp)
- High Rates - 45 deg. (50% Exp)
- Rudder Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 30 deg. (40% Exp)
- High Rates - Max Throw (50% Exp)
What's in the box:
- NEW - Carbon-Kevlar plywood construction!
- NEW - Carbon-Kevlar reinforced landing gear mount!
- NEW - Carbon-Kevlar reinforced firewall!
- Carbon fiber main gear
- Carbon fiber tail gear
- Carbon fiber wing tube
- Pre-hinged control surfaces
- G10 fiberglass control horns
- Ultralight foam wheels
- Heavy duty steel axles
- Quick install, pre-drilled wheel pants
- Pre-run rudder pull-pull wires (pushrod also included for push-pull option)
- High quality ball links & pushrods for all control surfaces
- Extra hardware bag for spares
- Velcro for battery restraint
- Optional SFGs included
- All airframe components covered in genuine Ultracote (White HANU870, True Red HANU866, Midnight Blue HANU885, Cub Yellow HANU884)
NOTE: This product is shipped in a single box measuring 44"L x 16"W x 8"H (10 lbs. total).
AJ flies this airframe with the following equipment:
- Power by AJ Aircraft
- AJ3910-24P/770KV
- AJ3910-24P/660KV
- AJ3910-24P/550KV
- Castle Talon 60 ESC
- Falcon 14x7, 15x6
- (4) x MKS HV69 servos
- Thunder Power 6s 1800 mAH Rampage 70C Lipo
Also needed to complete:
- (2) x 6" aileron extensions
- (1) x 12" ESC extension
- (1) x 18" elevator extensions
- 2" or 50mm vented spinner
- (4) X HITEC 5087

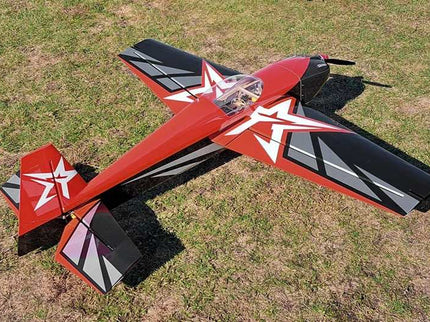

Download the 51" AJ Slick 540 Instruction ManualAJ Aircraft 51" AJ Slick
