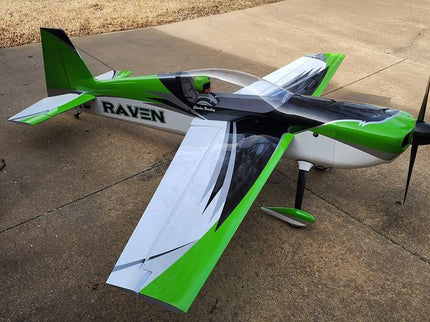

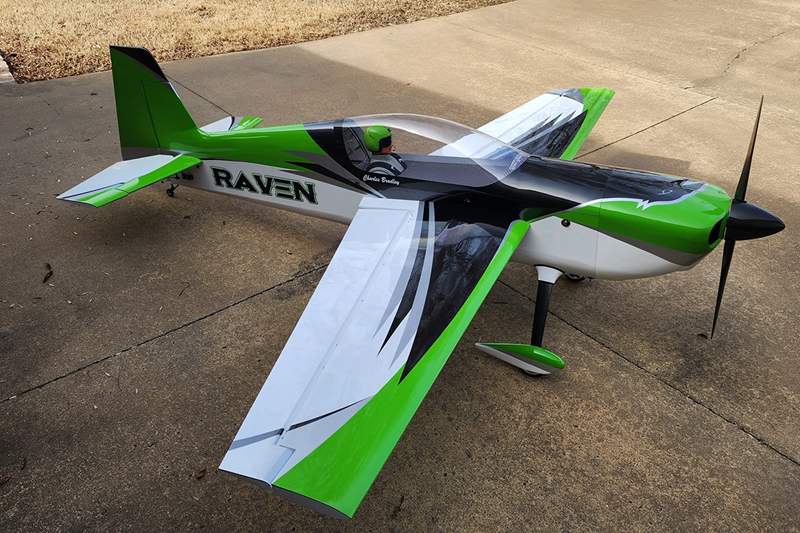

AJ Aircraft 106" Raven Green
£2,164.99Incl. VAT
Fast, reliable Worldwide shipping
Trusted by pilots since 1993
Reviews 0 reviews
Share with your friends
Share WhatsApp
Deel
X Pin it
Messenger Email
Description
The 411:
- Wing Span - 106"
- Length - 100"
- Height - 27"
- Wing Area - SLE 2,095 sq-in, DT 2104 sq-in
- AUW (dry) - 27-28 lbs.
- Gas Power - 120cc
- Radio - 9 channel with 8 high torque servos (400 oz./in minimum) & 1 throttle servo
- IMAC Legal!
Recommended CG Range and Control Throws
- The center of gravity (CG) range for the 106" Raven is located 1-1/2" in front of the wing tube (+/- 1/2")
- Aileron Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 35 deg. (40% Exp)
- High Rates - 45 deg. (50% Exp)
- Elevator Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 35 deg. (40% Exp)
- High Rates - 45 deg. (50% Exp)
- Rudder Control Throws
- Low Rates - 15 deg. (30% Exp)
- Mid Rates - 35 deg. (40% Exp)
- High Rates - Max Throw (50% Exp)
What's in the box:
- Carbon-Kevlar plywood construction!
- Carbon-Kevlar reinforced landing gear mount!
- Carbon-Kevlar reinforced firewall!
- Durable, lightweight one piece cowl design!
- Canopy complete with cockpit!
- Pre-hinged, glued and sealed ailerons & elevators
- Carbon fiber main landing gear
- Carbon fiber main wing tube
- Dual carbon fiber stab tubes
- Removable horizontal stabs & rudder
- G10 fiberglass control horns
- Aluminum standoffs for gas engines
- Full-length canister tunnel
- Heavy duty foam wheels with aluminum hubs
- Heavy duty steel axles
- Heavy duty pre-drilled wheel pants
- Pre-drilled & rubber lined landing gear cuffs
- Firewall drilling templates for common engines
- Pre-run rudder pull-pull wires
- High quality ball links & turnbuckles for all connections
- Extra hardware bag for spares
- Velcro for fuel tank or battery restraint
- All airframe components covered in genuine Ultracote (White HANU870, True Red HANU866, Cub Yellow HANU884)
NOTE: This product is shipped in two separate boxes.
AJ flies this airframe with the following equipment:
Also needed to complete:
- Servo Extensions
- Aluminum Servo Arms
