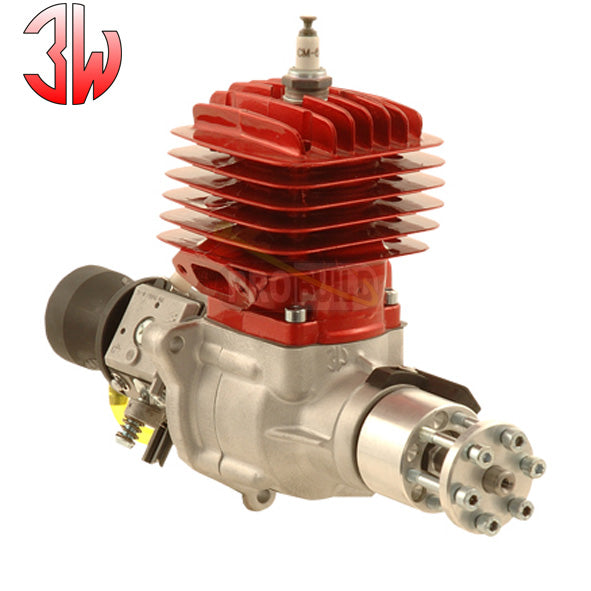

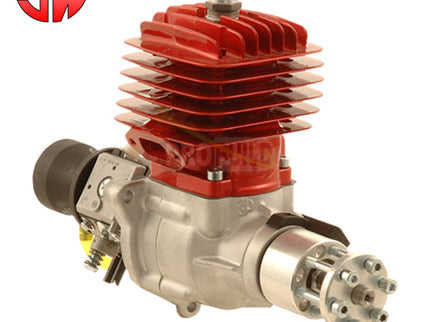

3W-28i CS

Suitable for 3D-flying of our XTRA and VOTEC ‚Äì FUNS or other Funflyer with a maximum take off weight of 6,0 kg. Using a optimum propeller a static thrust of 8,0 kg can be achived. This engine can be used for a wide range of models. The high power output makes it comparable with higher capacity engines. 3W-CS-Serie ( Competition Series ) is characterized by better performance, throttle response and more power and torque. Selected parts are used for these engines. This results in a higher performance level. Transfer ports of the cylinder and crankcase are modified as well as the exhaust port.

The micro processor controlled igniton allows to easy start  the engine. The programmed timing curve is laid out for the engines and guarantees a good running characteristic in all RPM ‚Äì ranges. An out put signal to monitor RPM is standard as well as a LED showing the status of the ignition. The voltage range of the standard ignition : 4,8V ‚Äì 8,4V ( 2 cell LIPO battery ). Operating Voltage : 6,0 V.

Techn. specifications
