Xpwr 22cc Motor

Xpwr 22cc Motor
Out Of Stock
Xpwr 22cc Motor
Xpwr 22CC MotorProduct InformationXpwr 22cc- For over a decade, the Extreme Flight Torque 4016T/500 ... Read More
from
£159.99
Ex Tax: £133.33
  • Stock: Out Of Stock
  • Brand: Extreme Flight
  • Model: EF-XPWR-22CC
  • Weight: 1.00kg
  • Dimensions: 20.00cm x 20.00cm x 10.00cm
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

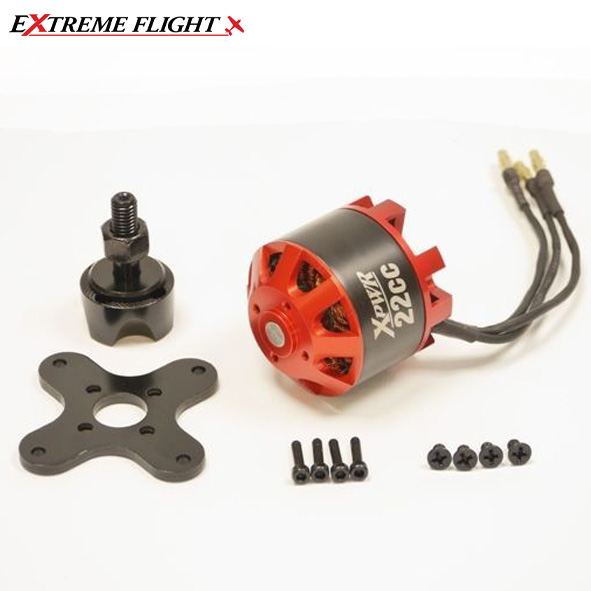

Xpwr 22CC Motor


Product Information


Xpwr 22cc- For over a decade, the Extreme Flight Torque 4016T/500 brushless outrunner has been the industry standard for reliability, longevity and superior power for 5-6 pound aerobatic aircraft and sport aircraft and warbirds weighing up to 9 pounds. Now in 2020 Extreme Flight is excited to introduce the successor to the 4016, the brand new Xpwr 22! With improved air inlets and exits, the Xpwr 22 runs cooler while providing even more power than the venerable 4016. The Xpwr 22 uses the same mounting bolt pattern as the 4016 making motor swaps fast and easy. This improved design is ready to take the next generation of Extreme Flight models well into the future!


Specifications

Weight: 334 grams (including radial mount and prop adapter)
Length: 65mm (from rear of radial mount to front face of prop adapter)
Diameter: 49mm
KV: 500
Max Current: 80 Amp
Prop Shaft: 6mm
Pole Count: 14
Recommended Props: 16x7, 16x8, 17x6 wood or lightweight carbon electric props. We highly recommend the Falcon Wood Electric series. Please avoid the heavier APC props in this size.


Download the Xpwr motor manual here (Right-Click & Save As)
