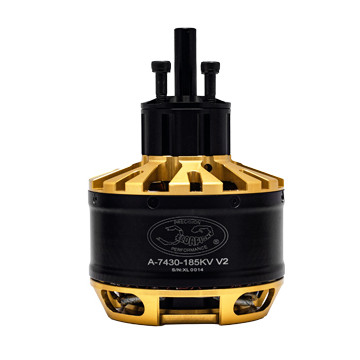

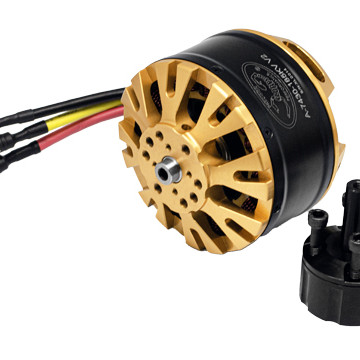

Name: Scorpion A-7430-185kv (V2) (12s / 70cc-85cc / 7500w)
Brand: Scorpion
Price: 614.99 GBP
Availability: InStock

Scorpion A-7430-185kv (V2) (12s / 70cc-85cc / 7500w)

Product DescriptionThe Scorpion A - Series line of motors was designed to be the most optimal and pr... Read More

0 reviews • Write a review

from

£614.99

Ex Tax: £512.49

Stock: In Stock
Brand: Scorpion
Model: A_7430_185
Weight: 2.00kg
Dimensions: 21.00cm x 12.00cm x 10.00cm

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

From Same Category
Same Brand

Quickview

Scorpion A-3017 PNP Combo (4s / 30E-32E/ 962w)

£259.99

Ex Tax:£216.66

Out Of Stock Add to Wish List Compare this Product

Quickview

Scorpion A-3017 PNP Combo (6s / 30E-32E/ 962w)

£259.99

Ex Tax:£216.66

Add to Cart Add to Wish List Compare this Product

Quickview

Scorpion A-3017-560kv (30e/48")

£134.99

Ex Tax:£112.49

Add to Cart Add to Wish List Compare this Product

Quickview

Scorpion A-3017-600kv (30e/48")

£134.99

Ex Tax:£112.49

Add to Cart Add to Wish List Compare this Product

Quickview

Scorpion A-3017-920kv (30e/48")

£134.99

Ex Tax:£112.49

Out Of Stock Add to Wish List Compare this Product

Quickview

Scorpion A-4220 V2 PNP Combo (6s/70E+/2553w)

£389.99

Ex Tax:£324.99

Add to Cart Add to Wish List Compare this Product

Quickview

Scorpion A-4220-540kv V2 (15-20cc) (50-70E/60")

£199.99

Ex Tax:£166.66

Add to Cart Add to Wish List Compare this Product

Quickview

Scorpion A-4225 V2 PNP Combo (6s/90E+/20cc-25cc+/3108w)

£479.99

Ex Tax:£399.99

Add to Cart Add to Wish List Compare this Product

Tags: scorpion , a-7430-185kv , (v2) , (12s , 70cc-85cc , 7500w) , electric , motors

Product Description

The Scorpion A - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane. We have achieved incredible performance through incredible efficiency. By optimizing the magnets in the rotor, and using the best quality 0.2mm thickness silicon steel stator sheets, and single strand enamel coated copper wire windings rated above 250C+, the performance and efficiency results are unlike anything we have seen before! Combined with a robust design which has been tested extensively by our world class team pilots for longevity and reliability, we feel this motor checks and exceeds all measurable categories!

The A-7430 was designed specifically for airplanes requiring a 70cc-85cc equivalent gas engine, or other airframes requiring up to 7500w of power.

Recommended Prop Selection :

For 12s - 25x12E / 26x12E // 85cc performance

Recommended ESC : Tribunus II+ 14-200A ESC SBEC

NOTE: Due to the large size of airframes in this class, normally the battery wires must be extended. Running to long of battery cables WILL damage ESC and void your warranty. Precautions. If you model has long battery cables, precautions should be taken. We recommend the use of the Scorpion 1880uF Capacitor / PDB Board

Tutorial / WARNING about using ESC's with a Power Supply, or Long Battery Cables

NOTE: Due to the large size of airframes in this class, attaining proper ESC cooling can be difficult. The ESC MUST have direct access to airflow using baffles directing air directly to the ESC. Simply adding a hole in the cowl is not suitable, and air must be carried directly to the ESC via baffling.

Acrobatic Weight Range -: 10kg - 22.72kg (22.0lbs - 50lbs)

Sport / UAV (single engine) Weight Range : - 16.14kg - 48.43kg (35.52lbs -106.56lbs)

Specifications

Motor Kv	185 RPM / Volt
Weight (Motor only)	1255.0g (44.27 oz)
Weight (including mount + Prop mount accessories)	1462.0g (51.57 oz)
Motor Body Dimensions	86.80mm x 70.4mm (+20.0mm Prop Spacer) (3.42" x 2.77" (+0.79" prop spacer))
External Shaft Diameter	10mm
Continuous Current	120A
Continuous Power	5328 Watts
Peak Current*	169A
Peak Power*	7500 Watts
Max Rated Lipo Cell**	12s
Stator Diameter	74.0 mm (2.91 in)
Stator Thickness	30 mm (1.18 in)
No. of Stator Arms	24
Magnet Poles	28
Motor Wind	6T 4Y
Motor Wire	1.2mm dia
No-Load Current (IO/20V)	2.54A
Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling
Higher Cell Count possible with smaller prop usage

Weight including packaging

1750g
