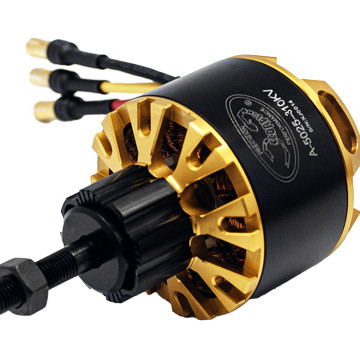

Scorpion A-5025-310kv (8s / 30cc-35cc / 4000w)
from
£334.99
Ex Tax: £279.16
- Stock: Out Of Stock
- Brand: Scorpion
- Model: A_5025_310
- Weight: 650.00g
- Dimensions: 21.00cm x 12.00cm x 10.00cm
pecifications
Motor Kv 310 RPM / Volt Weight (Motor only) 523.4g (18.46 oz) Weight (including Prop mount accessories) 548.40g (19.344 oz) Motor Body Dimensions 59.3 mm x 52.6mm (+ 18mm prop spacer) (2.33" x 2.07 (+0.70 prop spacer)) External Shaft Diameter 8mm Continuous Current 91A Continuous Power 2693 Watts Peak Current* 130A Peak Power* 3850 Watts Max Rated Lipo Cell** 8s Stator Diameter 50.0 mm (1.97 in) Stator Thickness 25 mm (.984 in) No. of Stator Arms 12 Magnet Poles 14 Motor Wind 6T/7T Delta Motor Wire 18-Strand x 0.33mm No-Load Current (IO/20V) 1.71 Amps Motor Internal Resistance 8.65mΩ *Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling* **Higher Cell Count possible with smaller prop usage**
| Motor Kv | 310 RPM / Volt |
| Weight (Motor only) | 523.4g (18.46 oz) |
| Weight (including Prop mount accessories) | 548.40g (19.344 oz) |
| Motor Body Dimensions | 59.3 mm x 52.6mm (+ 18mm prop spacer) (2.33" x 2.07 (+0.70 prop spacer)) |
| External Shaft Diameter | 8mm |
| Continuous Current | 91A |
| Continuous Power | 2693 Watts |
| Peak Current* | 130A |
| Peak Power* | 3850 Watts |
| Max Rated Lipo Cell** | 8s |
| Stator Diameter | 50.0 mm (1.97 in) |
| Stator Thickness | 25 mm (.984 in) |
| No. of Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor Wind | 6T/7T Delta |
| Motor Wire | 18-Strand x 0.33mm |
| No-Load Current (IO/20V) | 1.71 Amps |
| Motor Internal Resistance | 8.65mΩ |
| *Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling* | |
| **Higher Cell Count possible with smaller prop usage** | |
Performance Charts
Included in the Box
1 x A-5025 Motor
1 x Cross Mount
3 x 6mm Female Connectors
3 x Heat Shrink
1 x Hardware Accessory Bag
Weight including packaging
610g
