JR Propo RG411BL 4-Channel Park Flyer 2.4GHz DMSS Receiver w/Telemetry

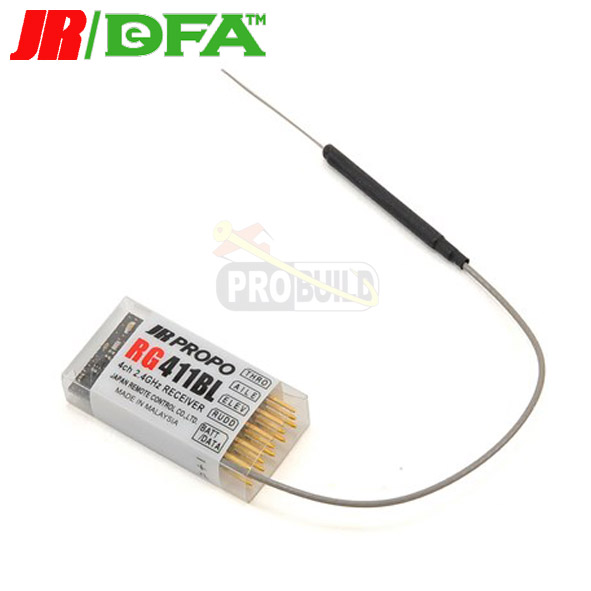

This is the JR RG411BL 4-Channel DMSS Shielded Antenna Park Flyer Receiver. The JR® RG411BL is a super micro size 4-channel DMSS receiver featuring a coaxial sleeve antenna suitable for use with a narrow carbon fuselage aircraft like a DLG glider, as well as small electric powered airplanes. JR Dual Modulation Spectrum System (DMSS) 2.4GHz protocol offers a secure radio link that combines DSSS and FHSS capabilities into a wide-band transmission system that includes high speed response and high resistance against RF noise. One benefit of DMSS is the JR Intelligent Output System (IOS), which automatically selects control signals that need to be transmitted at exactly the same time and delivers the data as one complete signal frame. IOS ensures there is no time delay when commanding servos used for critical functions.

To meet the unique needs of lightweight sport and competition RC aircraft the DMSS 4-channel RG411BL receiver features a lightweight poly-carbonate case design that includes integrated short range telemetry so that overall weight is kept to a minimum without diminishing control. DMSS receivers, like the RG411BL, are the lightest and smallest in their class and have the ability to work within a voltage range from 4.8–8.5 volts to give you a wide choice of power options. And they are compatible with all JR DMSS transmitters including the XG6, XG8 and XG11. Receiver input voltage telemetry is standard, and there is the option to add on other sensors (available separately) vital to the status of your aircraft such as RPM, temperature and altitude.

Features:

• DMSS system speed and security
• Low-profile, lightweight poly-carbonate case design
• Bi-directional coaxial sleeve antenna
• Integrated short range telemetry
• Failsafe support on all channels
• Compact end-pin design
• Status condition LEDs

Specifications:
Type: DLG glider or small electric powered airplanes
# of Channels: 4
Modulation: DMSS
Band: 2.4GHz
Length: 1.40 in (35.5mm)
Width: 0.71 in (18mm)
Height: 0.35 in (9mm)
Weight: 0.15 oz (3.5g)
Voltage Range: 4.5 - 8.5V
Antenna Length: 4.72 in (120mm)
