- Stock: Out Of Stock
- Brand: DLE Engines
- Model: DLE20
- Weight: 1.16kg

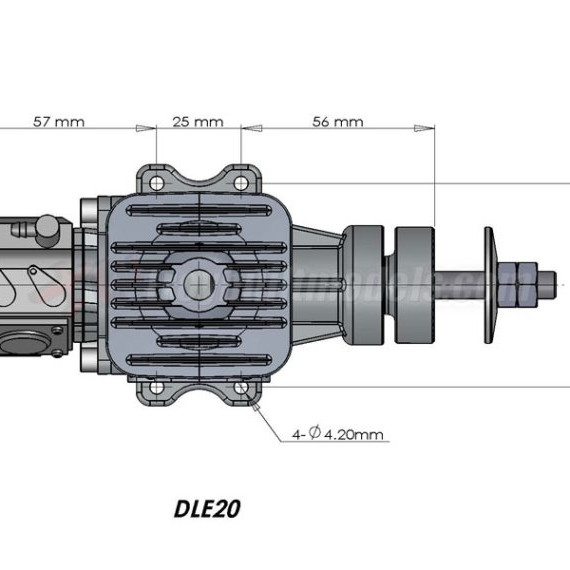

- Dimensions: 22.00cm x 20.20cm x 11.00cm

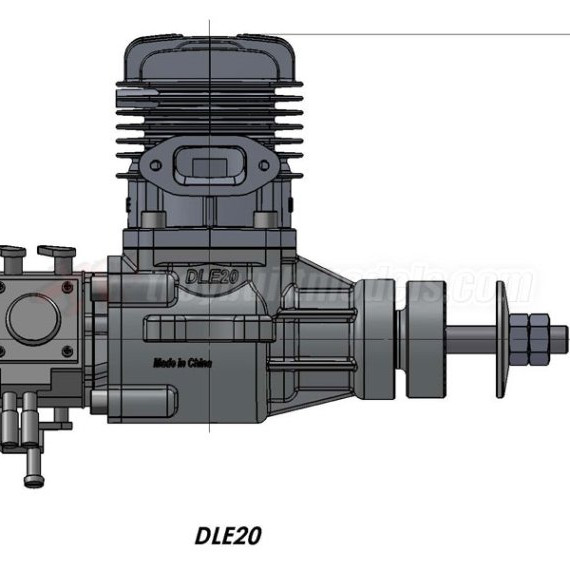

The DLE 20CC Petrol Engine is a high-performance gas engine designed to replace traditional glow power in RC aircraft. With a 20cc displacement, it fills the gap between small glow engines and larger gas engines, making it an ideal choice for those looking to upgrade. The DLE 20CC features a beam mount for quick and easy installation, and a rear pumper carb for simple adjustment. This engine offers excellent value with a generous package that includes electronic ignition for easy starting, a muffler, spark plug, gasket, and other essential components. Capable of producing 2.5 horsepower at 9,000 RPM, it's perfect for high-performance RC flying. The engine runs on unleaded gasoline mixed with 2-cycle oil and is compatible with a variety of propellers.
Specifications:
Stock Number: DLEG0020
Displacement: 20 cc (1.22 cu in)
Bore: 1.3 in (32 mm)
Stroke: 1.0 in (25 mm)
Weight: 28.9 oz (820 g)
RPM Range: 1,750-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller

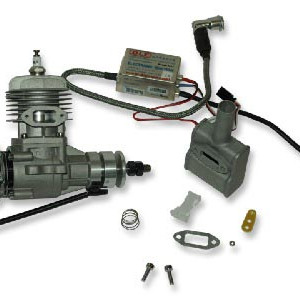

Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
Suggested Propellers: 14x10, 15x8, 16x6, 16x8, 17x6
Suggested Break-in Prop: n/a
Technical Data:
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo or LiFe use requires voltage regulator.)
Compression Ratio: 10.5:1
Gas/Oil Mix: 30:1 (Use mineral oil for break-in, then switch to synthetic once fully run in.)
Replacement Spark Plug: NGK CM6 or equivalent
Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
