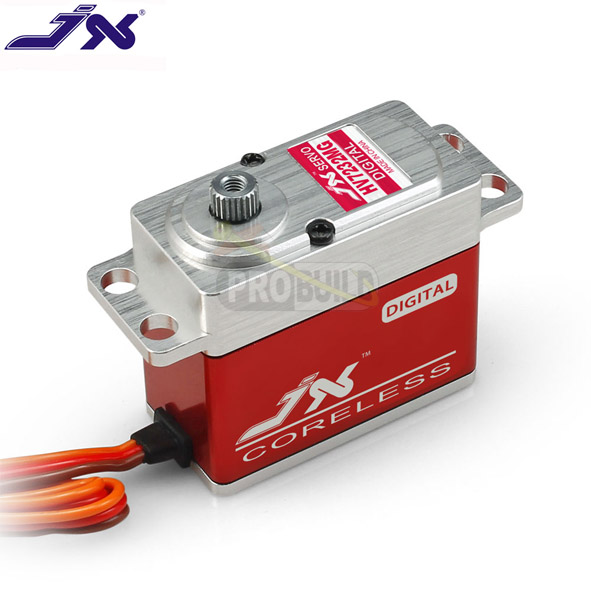

Name: JX HV7232MG 32KG Servo
Brand: JX Servo
Price: 59.99 GBP
Availability: InStock

JX HV7232MG 32KG Servo

JX HV7246MG Features:High Performance Digital High Voltage Coreless Standard ServoHigh-Precision Tai... Read More

0 reviews • Write a review

from

£59.99

Ex Tax: £49.99

Stock: In Stock
Brand: JX Servo
Model: PDI-HV7232MG
Weight: 115.00g
Dimensions: 10.00cm x 7.00cm x 4.00cm

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

From Same Category
Same Brand

Quickview

JX PDI-1109MG 9g Metal Gear 2.5kg 6v digital Core servo

£8.50

Ex Tax:£7.08

Add to Cart Add to Wish List Compare this Product

Quickview

JX PDI-1181MG 3.5kg 6v Metal Gear digital Core servo

£9.99

Ex Tax:£8.33

Add to Cart Add to Wish List Compare this Product

Quickview

JX PS-4503HB 3.95KG 6V Servo

£7.99

Ex Tax:£6.66

Add to Cart Add to Wish List Compare this Product

JX HV7246MG Features:
High Performance Digital High Voltage Coreless Standard Servo
High-Precision Taiwan-made aluminium Metal Gears With Hard Anodising
Full CNC Machined Aluminium Case
Dual Bearing Support
JR Style Lead and Plug
25T Spline

Overview

The JX Line of High Voltage digital servos have been hand picked and tested by Probuild Aircraft Ltd for large scale aerobatic aircraft apilications.

Specifications:

Dead band: 1μs 1520μs / 330hz
Motor: coreless motor
Operating Speed (6.0V): 0.12sec/60°
Operating Speed (8.4V): 0.09sec/60°
Stall Torque (6.0V): 26.2 kg.cm (363.83oz/in)
Stall Torque (8.4V): 31.5kg-cm 437.43 oz/in)
Dimensions:40.5X20.5X36mm/1.59X0.80X1.43in
Weight: 72g (2.54oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
