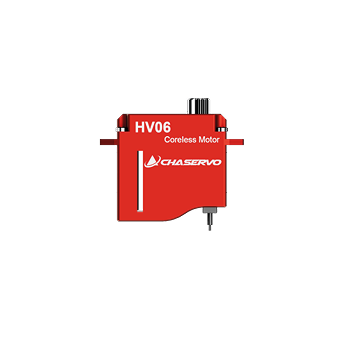

CHASERVO HV06 (2.2KG 8.4V) Servo

CHASERVO HV06 (2.2KG 8.4V) Servo
CHASERVO HV06 (2.2KG 8.4V) Servo
Compact and powerfulThe Chaservo HV06 is a powerful 6mm HV servo that is characterized by its small ... Read More
0 reviews • Write a review
from
£48.50
Ex Tax: £40.42
  • Stock: In Stock
  • Brand: CHAServo
  • Model: HV06
  • Weight: 23.00g
  • Dimensions: 7.40cm x 4.50cm x 3.00cm
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
CHASERVO LV06 (1.9KG 5.0V) Servo
Quickview
CHASERVO LV06 (1.9KG 5.0V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO LV06H (1.9KG 5.0V) Servo
Quickview
CHASERVO LV06H (1.9KG 5.0V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO LV06N (1.9KG 5.0V) Servo
Quickview
CHASERVO LV06N (1.9KG 5.0V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO DS06 (2.0KG 8.4V) Servo
Quickview
CHASERVO DS06 (2.0KG 8.4V) Servo
£29.90
Ex Tax:£24.92
Out Of Stock Add to Wish List Compare this Product
CHASERVO DS09 (9.0KG 8.4V) Servo
Quickview
CHASERVO DS09 (9.0KG 8.4V) Servo
£30.90
Ex Tax:£25.75
Add to Cart Add to Wish List Compare this Product
CHASERVO HV06H (2.2KG 8.4V) Servo
Quickview
CHASERVO HV06H (2.2KG 8.4V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO HV06N (2.2KG 8.4V) Servo
Quickview
CHASERVO HV06N (2.2KG 8.4V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO DS115 (6KG 8.4V) Servo
Quickview
CHASERVO DS115 (6KG 8.4V) Servo
£26.50
Ex Tax:£22.08
Add to Cart Add to Wish List Compare this Product
Tags: chaservo , hv06 , (2.2kg , 8.4v)

Compact and powerful



The Chaservo HV06 is a powerful 6mm HV servo that is characterized by its small size and

high performance. It is ideal for a variety of modeling applications, including RC vehicles,

airplanes, boats and other models that require high performance and precision in a small

package.

The Chaservo HV06 is made of high-quality materials and has a robust design. The hardened

steel gearbox is wear-resistant and ensures a long service life.

The holding force of up to 2.2 kg at 8.4 V makes it possible to move even heavy loads

effortlessly. The turning speed of 0.06 seconds at 8.4 V is also very good.

Specifications

Dimensions: 0.75 x 0.24 x 0.73 in (19 x 6 x 18.5 mm)
Weight: 0.21 oz (6.1 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 3.3 – 9.0V
Output Shaft Spline: 15T, 4mm
Position sensor: Potentiometer
Motor: Coreless DC
Ball Bearing: 2 x Ball Bearing
Working Frequency: 1520µs/20KHz
Pulse Range: 900µs-2100µs
Programmable: Yes
Case Material: Aluminium
Gear Set Material: Metal gear


Holding Torque
Holding Torque @ 6.0V: 22.91 oz·in (1.65 kg·cm)
Holding Torque @ 7.4V: 30.55 oz·in (2.2 kg·cm)
Holding Torque @ 8.4V: 36.80 oz·in (2.65 kg·cm)

No-load Speed
No-load Speed @ 6.0V: 0.07sec/60°
No-load Speed @ 7.4V: 0.06sec/60°
No-load Speed @ 8.4V: 0.05sec/60°

Max Current
Max Current @ 6.0V: 0.61 A
Max Current @ 7.4V: 0.63 A
Max Current @ 8.4V: 0.67 A

Technische Daten:
CAD-Daten (Horizontal):
