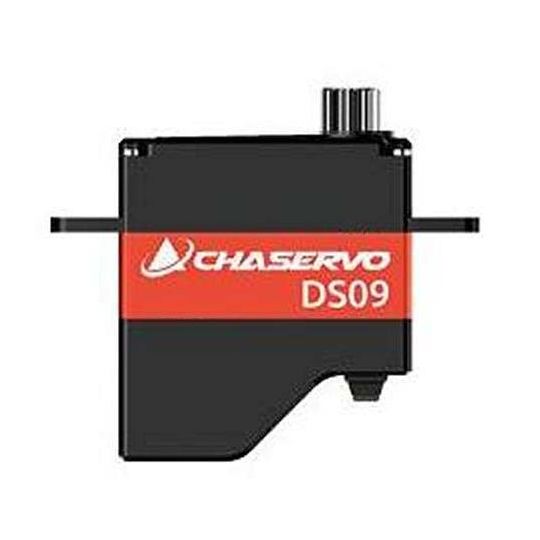

CHASERVO DS09 (9.0KG 8.4V) Servo

CHASERVO DS09 (9.0KG 8.4V) Servo
CHASERVO DS09 (9.0KG 8.4V) Servo
Powerful and preciseThe DS09 is equipped with a powerful digital motor and a robust metal gearbox. I... Read More
0 reviews • Write a review
from
£30.90
Ex Tax: £25.75
  • Stock: In Stock
  • Brand: CHAServo
  • Model: DS09
  • Weight: 23.00g
  • Dimensions: 7.40cm x 4.50cm x 3.00cm
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
CHASERVO LV06 (1.9KG 5.0V) Servo
Quickview
CHASERVO LV06 (1.9KG 5.0V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO LV06H (1.9KG 5.0V) Servo
Quickview
CHASERVO LV06H (1.9KG 5.0V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO LV06N (1.9KG 5.0V) Servo
Quickview
CHASERVO LV06N (1.9KG 5.0V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO DS06 (2.0KG 8.4V) Servo
Quickview
CHASERVO DS06 (2.0KG 8.4V) Servo
£29.90
Ex Tax:£24.92
Out Of Stock Add to Wish List Compare this Product
CHASERVO HV06 (2.2KG 8.4V) Servo
Quickview
CHASERVO HV06 (2.2KG 8.4V) Servo
£48.50
Ex Tax:£40.42
Add to Cart Add to Wish List Compare this Product
CHASERVO HV06H (2.2KG 8.4V) Servo
Quickview
CHASERVO HV06H (2.2KG 8.4V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO HV06N (2.2KG 8.4V) Servo
Quickview
CHASERVO HV06N (2.2KG 8.4V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO DS115 (6KG 8.4V) Servo
Quickview
CHASERVO DS115 (6KG 8.4V) Servo
£26.50
Ex Tax:£22.08
Add to Cart Add to Wish List Compare this Product
Tags: chaservo , ds09 , (9.0kg , 8.4v)

Powerful and precise



The DS09 is equipped with a powerful digital motor and a robust metal gearbox. It achieves a

stalling torque of 6 kg and a maximum speed of 0.16 s/60°. This makes it an ideal servo for

demanding applications such as model airplanes, micro RC cars, drones and robots.

Specifications

Dimensions: 0.93 x 0.35 x 1.08 in (23.5 x 9 x 27.5 mm)
Weight: 0.42 oz (12 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 3.3 – 9.0V
Output Shaft Spline: 25T, 0.196 in (5 mm)
Position sensor: Potentiometer
Motor:  Hollow cup DC
Ball Bearing: 2 x Ball Bearing
Working Frequency: 1520µs/20KHz
Pulse Range: 900µs-2100µs
Programmable: Yes
Case Material: High Quality Technopolymer and Aluminium
Gear Set Material: Hardened Steel + Brass

Holding Torque
Holding Torque @ 6.0V: 97.21 oz·in (7.0 kg·cm)
Holding Torque @ 7.4V: 111.09 oz·in (8.0 kg·cm)
Holding Torque @ 8.4V: 124.98 oz·in (9.0 kg·cm)

No-load Speed
No-load Speed @ 6.0V: 0.13sec/60°
No-load Speed @ 7.4V: 0.11sec/60°
No-load Speed @ 8.4V: 0.10sec/60°

Max Current
Max Current @ 6.0V: 0.90 A
Max Current @ 7.4V: 1.15 A
Max Current @ 8.4V: 1.25 A

Technische Daten:
CAD-Daten (Vertikal):
