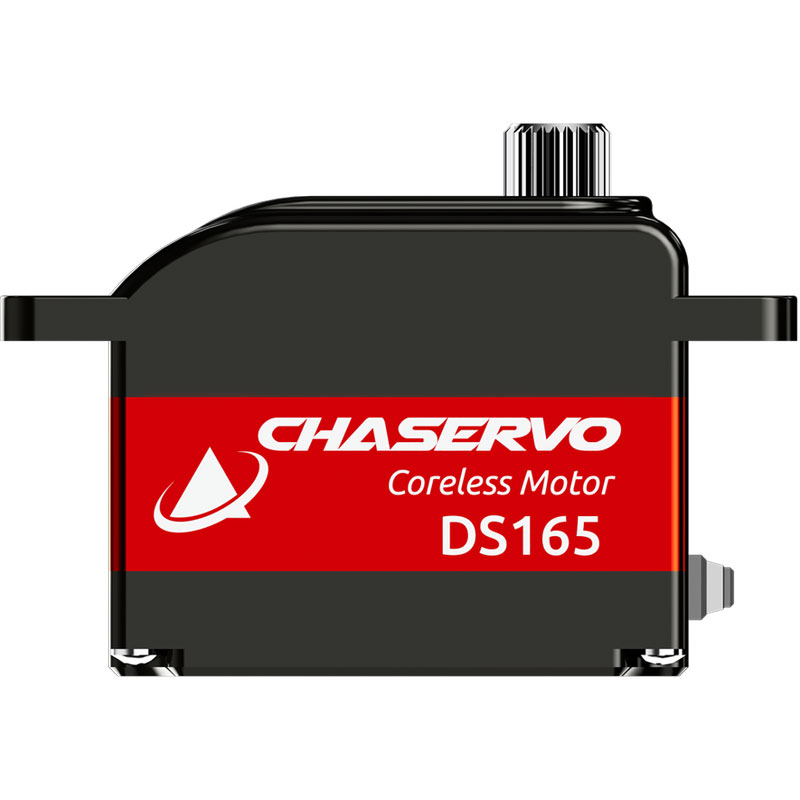

CHASERVO DS165 (9KG 8.4V) Servo
The Chaservo DS165 is a first-class 16.5mm digital servo, equipped with double ball bearings and a robust metal gearbox. This fast, powerful and precise DS servo is suitable for all model building applications. The enormous speed also makes the DS165 interesting for helicopter applications. The extensive voltage range from 3.3V to 9V makes the programmable Chaservo DS165 a reliable, versatile all-round servo with impressive performance characteristics. In the high-voltage range, the servo has an enormous positioning time of just 0.055s/60° at 8.4V. The aluminium-reinforced, high-strength techno polymer housing ensures long-lasting and reliable vibration damping.
Robust and precise design
The Chaservo DS165 is made from high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life.
The holding force of up to 9 kg at 8.4 V enables even heavy loads to be moved effortlessly. The turning speed of 0.055 seconds at 8.4 V is exceptionally fast.
The Chaservo DS165 is suitable for a wide range of applications. It is ideal for RC vehicles, airplanes, boats and other models that require high performance and precision. The high speed also makes the DS165 interesting for helicopter applications.
pecifications
| Servo Data |
|---|
| Dimensions | 1.25 x 0.64 x 1.04 in (32 x 16.5 x 26.5 mm) |
| Weight | 1.26 oz (36 g) |
| Rated Voltage | DC 7.4V |
| Voltage Range | DC 3.5 – 9.0V |
| Position sensor | Contactless / Hall sensor |
| Motor | Coreless DC |
| Ball Bearing | 2 x Ball Bearing |
| Working Frequency | 1520µs/333Hz |
| Pulse Range | 500 μs – 2500 μs |
| Programmable | Ja |
| Material |
|---|
| Case Material | High Quality Technopolymer and Aluminium |
| Gear Set Material | Metallgetriebe |
| Holding Torque |
|---|
| Holding Torque @ 4.8V | 74.99 oz·in (5.4 kg·cm) |
| Holding Torque @ 7.4V | 108.32 oz·in (7.8 kg·cm) |
| Holding Torque @ 8.4V | 124.98 oz·in (9.0 kg·cm) |
| Output Torque |
|---|
| Output Torque @ 4.8V | 4.86 kg·cm |
| Output Torque @ 7.4V | 7.02 kg·cm |
| Output Torque @ 8.4V | 112.48 oz·in (8.10 kg·cm) |
| No-load Speed |
|---|
| No-load Speed @ 4.8V | 0.088sec/60° |
| No-load Speed @ 7.4V | 0.059sec/60° |
| No-load Speed @ 8.4V | 0.055sec/60° |
| max. Current |
|---|
| max. Current @ 7.4V | 3.25 A |
| max. Current @ 8.4V | 3.65 A |
