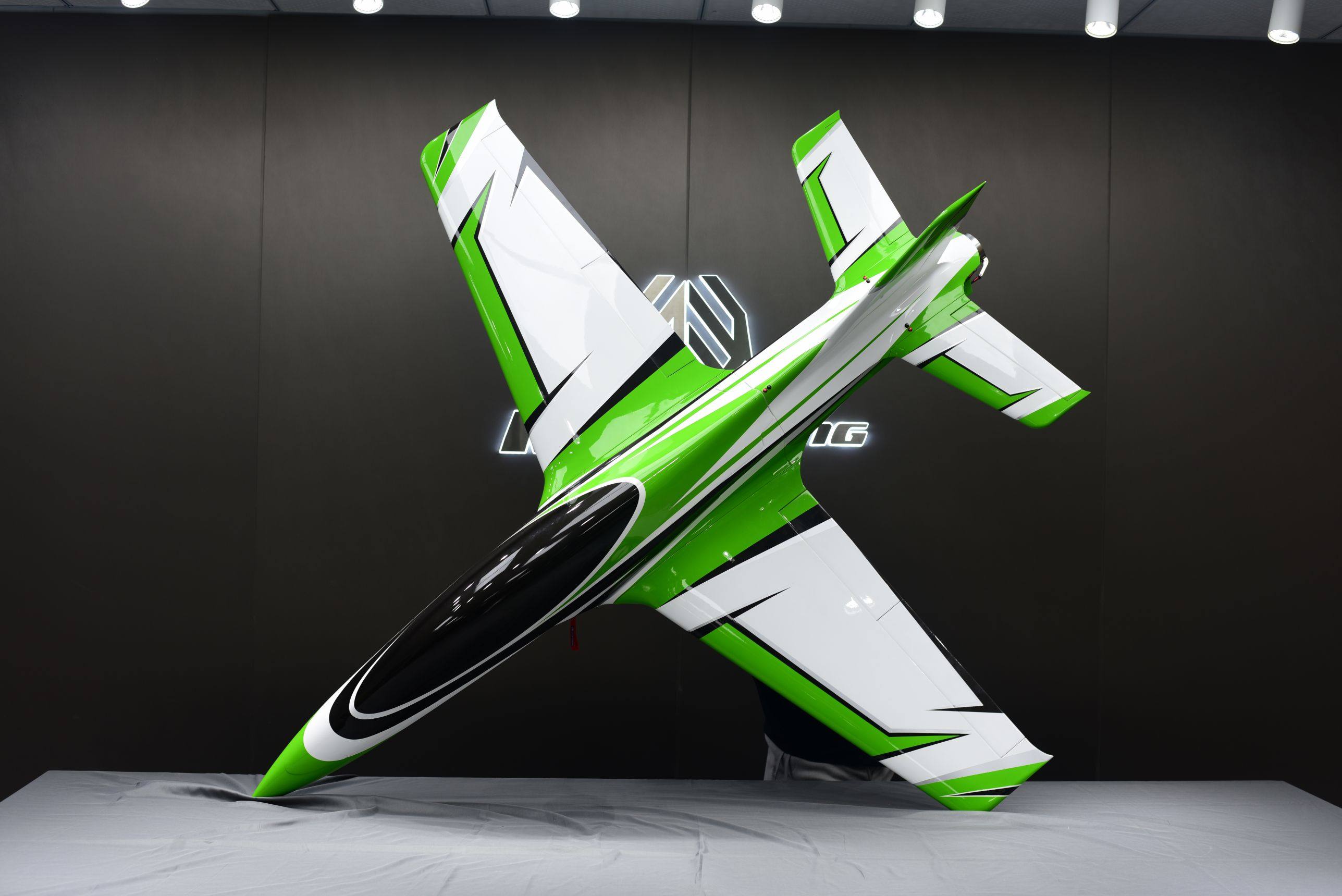

SKYWING Falcon 100-160N Jet Turbine ARF, 82" Green

SKYWING Falcon 100-160N Jet Turbine ARF, 82"

Falcon! It is the first jet model developed by skywing! This model design reference prototype is a Viper jet! Falcon is the first jet model released by skywing. We did a lot of research before the design started! Innovation requires taking risks, and we have always been committed to innovation! We think today's jet models need something a little different to increase interest among enthusiasts! Therefore, we have added many innovative designs that allow enthusiasts to quickly assemble the model and fly it! Among the hardware used in the model, we also designed hardware exclusive to this jet model! Also comes with most of the high-quality hardware required to match this model! Greatly reduce the economic costs for enthusiasts! It also makes it easier for enthusiasts to assemble!

Product Information

Hardware included in the product:

1. Protective bag for the complete set of products

2. skywing specially customized high-quality expansion cable

3. skywing patented product orange connection device

3. JP electric retractable landing gear

4. jet pipe

5. Vector (including vector putter)

6. tank(3500ml), smoke box(1000ml), UAT tank(200ml),fuel pipeline,

7. Fuel and ventilation points (2 pieces each)

8. Assembly bracket (for landing gear retraction)

9. Power connector (3x yellow XT60E, 1x black XT60E)

10. High quality magic ties (2 pieces)

11. Includes all pushrod part

12. Each brand of engine guide installation marking plate

13. Marking board for measuring each control surface

Specifications:
Wingspan: 80inches (2032mm)
Length: 82 inches (2080mm)
Weight (pre-flight weight): 23.15lbs / 10kg (including Turbine, No Fuel and Battery)

Box Size's and weight:

Fuselage/151*36*40cm/10.2kg
Wing/100*37*67cm/10.9kg

Power System:

100-160N Turbine for Sport flying
160-190N for 3D vector flight

Radio and Servo Requirements:
Radio: A modern radio with channel mixing
Servos:

Flaps* 2 pcs (standard size high torque 30KG) Savox SV-1270TG (45KG) / Savox SB-2290 (50KG) recommended.
Ailerons* 2 pcs ( size: 35x15x30mm-15kg ) Savox SV-1260MG (15KG) / Savox SB-1261 (25KG) recommended.
Elevators* 2 pcs (size: 35x15x30mm-15kg ) Savox SV-1260MG (15KG) / Savox SB-1261 (25KG) recommended.
Steering* 2 pcs ( size: 35x15x30mm-15kg ) Savox SV-1260MG (15KG) / Savox SB-1261 (25KG) recommended.
Vector rudder* 1 pcs (size: 35x15x30mm-15kg ) Savox SV-1260MG (15KG) / Savox SB-1261 (25KG) recommended.
Vector elevators* 1pcs ( size: 35x15x30mm-15kg ) Savox SV-1260MG (15KG) / Savox SB-1261 (25KG) recommended.

Servo Arms:

Qty. 2 Extreme Flight 1.5" single servo arms (tapped 3mm) for Flaps (use 1.25" hole)
Qty. 2 Extreme Flight 1" single servo arms (tapped for 3mm) for Ailerons
Qty. 2 Extreme Flight 1"single servo arm (tapped for 3mm) for Elevators
Qty. 1 Extreme Flight 1" single servo arms (tapped 3mm) for Rudder
Qty. 1 Extreme Flight 1.5" single servo arms (tapped for 3mm) for Vector rudder
Qty. 1 Extreme Flight 1.5" single servo arm (tapped for 3mm) for Vector elevators
