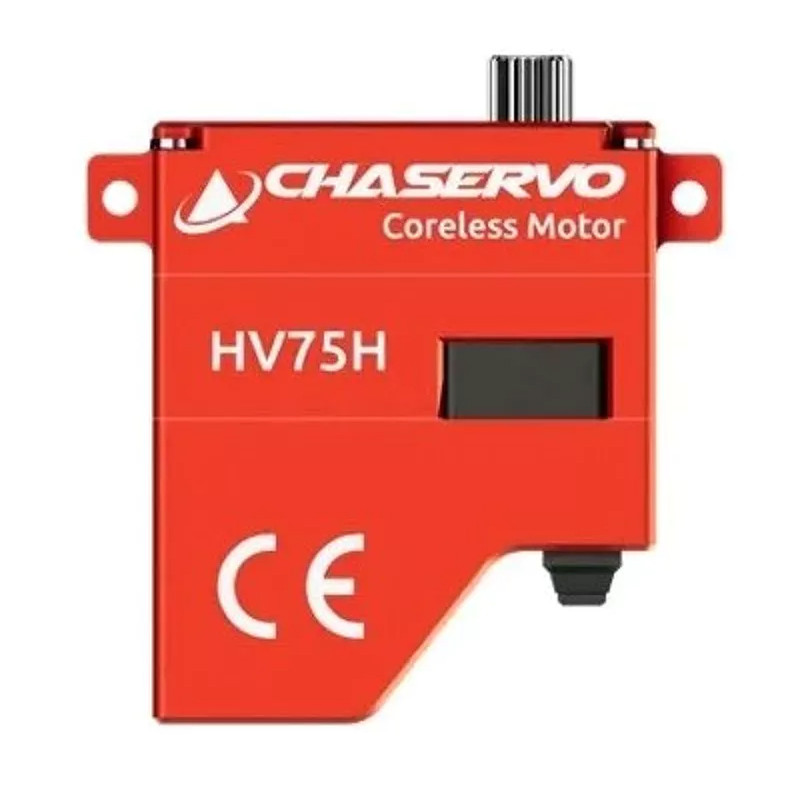

CHASERVO HV75H (6.5KG 8.4V) Servo

CHASERVO HV75H (6.5KG 8.4V) Servo
CHASERVO HV75H (6.5KG 8.4V) Servo
Slim, fast, fantastic.SpecificationsDimensions: 23 x 7.5 x 27.5 mmWeight: 0.42 oz (12 g)Rated Voltag... Read More
0 reviews • Write a review
from
£54.90
Ex Tax: £45.75
  • Stock: In Stock
  • Brand: CHAServo
  • Model: HV75H
  • Weight: 23.00g
  • Dimensions: 7.40cm x 4.50cm x 3.00cm
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
CHASERVO LV06 (1.9KG 5.0V) Servo
Quickview
CHASERVO LV06 (1.9KG 5.0V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO LV06H (1.9KG 5.0V) Servo
Quickview
CHASERVO LV06H (1.9KG 5.0V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO LV06N (1.9KG 5.0V) Servo
Quickview
CHASERVO LV06N (1.9KG 5.0V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO DS06 (2.0KG 8.4V) Servo
Quickview
CHASERVO DS06 (2.0KG 8.4V) Servo
£29.90
Ex Tax:£24.92
Out Of Stock Add to Wish List Compare this Product
CHASERVO DS09 (9.0KG 8.4V) Servo
Quickview
CHASERVO DS09 (9.0KG 8.4V) Servo
£30.90
Ex Tax:£25.75
Add to Cart Add to Wish List Compare this Product
CHASERVO HV06 (2.2KG 8.4V) Servo
Quickview
CHASERVO HV06 (2.2KG 8.4V) Servo
£48.50
Ex Tax:£40.42
Add to Cart Add to Wish List Compare this Product
CHASERVO HV06H (2.2KG 8.4V) Servo
Quickview
CHASERVO HV06H (2.2KG 8.4V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO HV06N (2.2KG 8.4V) Servo
Quickview
CHASERVO HV06N (2.2KG 8.4V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
Tags: chaservo , hv75h , (6.5kg , 8.4v)

Slim, fast, fantastic.


Specifications

Dimensions: 23 x 7.5 x 27.5 mm
Weight: 0.42 oz (12 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 4.8 – 8.4V
Output Shaft Spline: 15T, 4mm
Position sensor: Potentiometer
Motor:  Coreless DC
Working Frequency: 1520µs/333KHz
Pulse Range: 900µs-2100µs
Programmable: Yes
Case Material: Aluminium
Gear Set Material: metal gears

Holding Torque
Holding Torque @ 6.0V: 4.5 kg·cm
Holding Torque @ 7.4V: 6.0 kg·cm
Holding Torque @ 8.4V: 6.5 kg·cm

No-load Speed
No-load Speed @ 6.0V: 0.13sec/60°
No-load Speed @ 7.4V: 0.10sec/60°
No-load Speed @ 8.4V: 0.09sec/60°

CAD data (vertical):
CAD data (horizontal):
