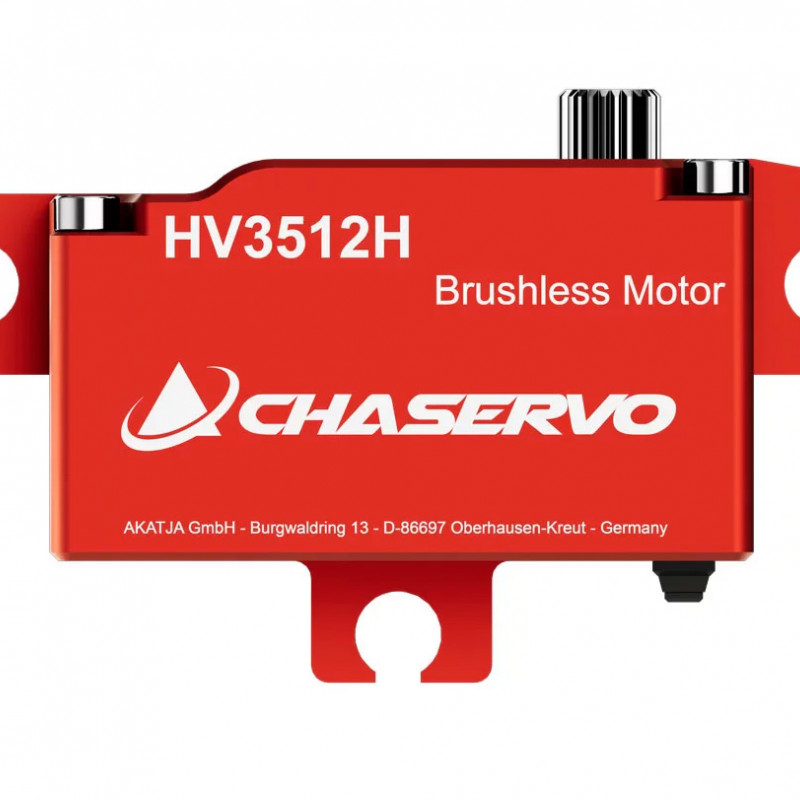

CHASERVO HV3512H (40KG 8.4V) Servo

CHASERVO HV3512H (40KG 8.4V) Servo
Out Of Stock
CHASERVO HV3512H (40KG 8.4V) Servo
Designed for greatnessThe Chaservo HV3512H Low Profile Servo is a high-performance servo in the 20mm... Read More
0 reviews • Write a review
from
£105.50
Ex Tax: £87.92
  • Stock: Out Of Stock
  • Brand: CHAServo
  • Model: HV3512H
  • Weight: 75.00g
  • Dimensions: 12.00cm x 8.00cm x 2.50cm
Out Of Stock
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
CHASERVO LV06 (1.9KG 5.0V) Servo
Quickview
CHASERVO LV06 (1.9KG 5.0V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO LV06H (1.9KG 5.0V) Servo
Quickview
CHASERVO LV06H (1.9KG 5.0V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO LV06N (1.9KG 5.0V) Servo
Quickview
CHASERVO LV06N (1.9KG 5.0V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO DS06 (2.0KG 8.4V) Servo
Quickview
CHASERVO DS06 (2.0KG 8.4V) Servo
£29.90
Ex Tax:£24.92
Out Of Stock Add to Wish List Compare this Product
CHASERVO DS09 (9.0KG 8.4V) Servo
Quickview
CHASERVO DS09 (9.0KG 8.4V) Servo
£30.90
Ex Tax:£25.75
Add to Cart Add to Wish List Compare this Product
CHASERVO HV06 (2.2KG 8.4V) Servo
Quickview
CHASERVO HV06 (2.2KG 8.4V) Servo
£48.50
Ex Tax:£40.42
Add to Cart Add to Wish List Compare this Product
CHASERVO HV06H (2.2KG 8.4V) Servo
Quickview
CHASERVO HV06H (2.2KG 8.4V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
CHASERVO HV06N (2.2KG 8.4V) Servo
Quickview
CHASERVO HV06N (2.2KG 8.4V) Servo
£48.50
Ex Tax:£40.42
Out Of Stock Add to Wish List Compare this Product
Tags: chaservo , hv3512h , (40kg , 8.4v)

Designed for greatness

The Chaservo HV3512H Low Profile Servo is a high-performance servo in the 20mm class.It is characterized by its low height of only 18.7 mm and its low weight of only 55 g. This makes it an ideal choice for models where weight and size are important.

The servo is made of high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life. The brushless motor delivers high torque and precision.

The Chaservo HV3512H Low Profile Servo offers a holding force of up to 400 Ncm at 8.4 V. This makes it possible to move even heavy loads effortlessly. The rotation speed is 0.08 seconds at 8.4 V.


The servo is available in two different installation variants. It can be mounted either vertically or horizontally. This offers you maximum flexibility during installation.

Advantages of the Chaservo HV3512 Low Profile Servo

  • High performance
  • Precise design
  • Robust design
  • Low weight
  • Minimum heigh
  • Two installation variants

Specifications

Dimensions: 1.59 in x 0.79 in x 0.91 in (40.5 x 20 x 23.1 mm)
Weight: 1.98 oz (56 g)
Rated Voltage: DC 7.4V
Voltage Range: DC 4.0 – 9.0V
Output Shaft Spline: 25T, 0.236 in (6 mm)
Position sensor: Potentiometer
Motor: 4 Pole Brushless
Ball Bearing: 2 x Ball Bearing
Working Frequency: 1520µs/333Hz
Pulse Range: 500 μs – 2500 μs
Programmable: Yes
Case Material: Aluminium
Gear Set Material: Metal gear


Holding Torque
Holding Torque @ 6.0V: 416.62 oz·in (30.0 kg·cm)
Holding Torque @ 7.4V: 486.05 oz·in (35.0 kg·cm)
Holding Torque @ 8.4V: 555.49 oz·in (40.0 kg·cm)

No-load Speed
No-load Speed @ 6.0V: 0.14sec/60°
No-load Speed @ 7.4V: 0.12sec/60°
No-load Speed @ 8.4V: 0.11sec/60°

Output Torque
Output Torque @ 6.0V: 370.79 oz·in (26.7 kg·cm)
Output Torque @ 7.4V: 30.2 kg·cm
Output Torque @ 8.4V: 486.05 oz·in (35.0 kg·cm)

max. Current
max. Current @ 6.0V: 4.0 A
max. Current @ 7.4V: 4.8 A
max. Current @ 8.4V: 5.8 A


Technische Daten:
CAD-Daten (Vertikal):
CAD-Daten (Horizontal):
