Slim, fast, fantastic.

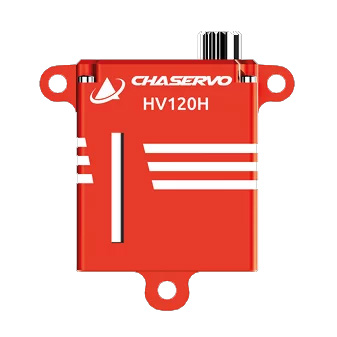

The HV120 series offers a holding force of 25 kg and is available in two versions. It is compact enough to fit into thin spaces and strong enough to play an important role in larger projects.

Specifications

Servo Data
Version	HV120H or HV120
Dimensions	30 x 12 x 35 mm
Weight	1.30 oz (37 g)
Rated Voltage	DC 7.4V
Voltage Range	DC 4.8 – 8.4V
Output Shaft Spline	25T, 0.236 in (6 mm)
Position sensor	Contactless / Hall sensor
Motor	4 Pole Brushless
Working Frequency	1520µs/333Hz
Pulse Range	500 μs – 2500 μs
Programmable	Ja

Material
Case Material	Aluminium
Gear Set Material	Metallgetriebe

Holding Torque
Holding Torque @ 4.8V	249.97 oz·in (18.0 kg·cm)
Holding Torque @ 6.0V	305.52 oz·in (22.0 kg·cm)
Holding Torque @ 7.4V	347.18 oz·in (25.0 kg·cm)
Holding Torque @ 8.4V	388.84 oz·in (28.0 kg·cm)

Output Torque
Output Torque @ 4.8V	138.87 oz·in (10.0 kg·cm)
Output Torque @ 6.0V	166.64 oz·in (12.0 kg·cm)
Output Torque @ 7.4V	208.31 oz·in (15.0 kg·cm)
Output Torque @ 8.4V	249.97 oz·in (18.0 kg·cm)

No-load Speed

No-load Speed @ 4.8V
