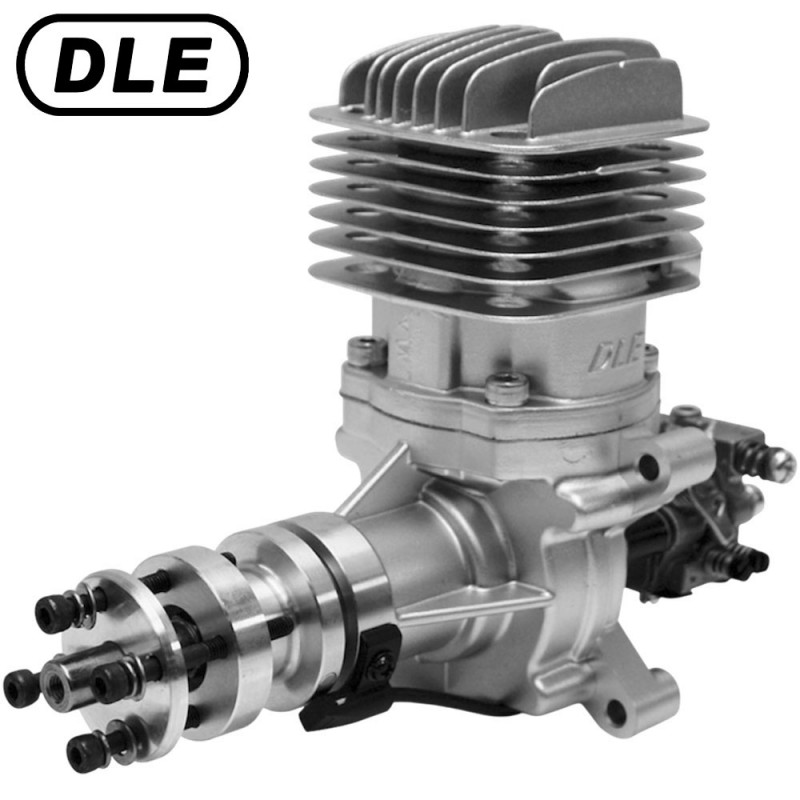

DLE 35RA Petrol Engine

The DLE 35RA Petrol Engine is a high-performance, rear-exhaust gas engine designed for RC enthusiasts looking for a powerful yet compact solution for larger aircraft. With an easy-to-install rear-exhaust design, the DLE 35RA fits perfectly into cramped cowls, offering the ideal power-to-weight ratio. Featuring a rear-mounted pumper carb, it ensures smooth idle and reliable fuel flow during flight. The engine includes DLE’s electronic ignition for effortless starting, minimal RF noise, and automatic timing adjustments for peak power across a broad RPM range. This engine is built for performance, with CNC-machined parts, high-quality sealed bearings, and a robust design that guarantees long-lasting durability and superior acceleration.

Specifications:
Displacement: 35 cc (2.14 cu in)
Bore: 1.50 in (38 mm)
Stroke: 1.14 in (29 mm)
Weight: 3.2 lb (1.45 kg)
RPM Range: 1,700-8,500
Output: 4.5 hp @ 8,500 rpm
Requires: Gasoline, oil, ignition battery & propeller
Includes: Electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & manual
Suggested Propellers: 18x8, 18x10, 20x8 & 20x10
Suggested Break-in Prop: 18x8

Technical Data:
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo or LiFe use requires voltage regulator.)
Compression Ratio: 8.0:1
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 45.6 oz (1,295 g); Muffler: 3.4 oz (95 g); Ignition: 5.3 oz (150 g)
