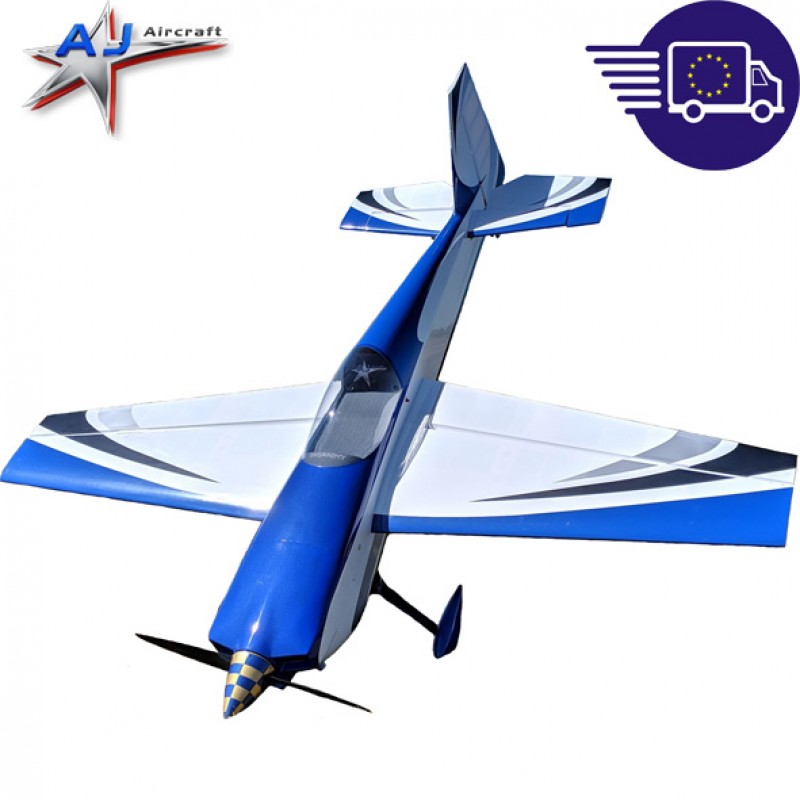

AJ Aircraft 92" Laser Z200 - Blue

AJ Aircraft 92" Laser Z200 – Blue

The AJ Aircraft 92" Laser Z200 is engineered for the serious RC pilot who demands rugged durability and outstanding performance. Featuring Carbon-Kevlar plywood construction, a quick-release canopy and wing system, and dual stabilizer locations, the Laser Z200 offers a broad flight envelope with outstanding control and precision.

Built for both gas (60-70cc) and electric power setups, this versatile airframe is ready for high-torque servos and aggressive 3D manoeuvres.

Airframe Specifications:

• Wingspan: 92"

• Length: 88"

• Height: 27"

• Wing Area: 1640 sq. in.

• AUW (dry): 18–19 lbs

• Construction: Carbon-Kevlar reinforced firewall, landing gear mounts, and structure

• Covering: Genuine Ultracote in Blue or Green colour schemes

• Landing Gear: Carbon fibre main gear, heavy-duty foam wheels with aluminium hubs

• Wing Tube: Carbon fibre

• Control Surfaces: Pre-hinged and glued ailerons and elevators

• Extras: Quick-release canopy and wing system, full canister tunnel, pull-pull rudder wires, hardware bag, cockpit details included

Recommended Gas Setup:

• Engine: DA-70cc or GP-76cc

• Propeller: 24x10 (Gas)

• Servos: 5x Chaservo HV4613 (400 oz./in minimum)

• Spinner: 82mm

• Extensions Needed:

  • 2x 6" aileron

  • 2x 48" elevator

  • 1x 12" ESC (or throttle/ignition for gas)

Recommended Electric Setup:

• Motor & ESC: Scorpion A-6528 PNP Combo

• Propeller: 24x10 Falcon E-Carbon

• Batteries: 2x 6S 5200–6500mAh LiPos

• Spinner: 82mm

• Servos: 5x Chaservo HV4613 (400 oz./in minimum)

• Extensions Needed:

  • 2x 6" aileron

  • 2x 48" elevator

  • 1x 12" ESC

Radio & Control Throws:

• Channels: 7 (includes throttle servo for gas)

• Recommended CG: 7" behind the leading edge at the wing root (±1")

Control Throws:

• Ailerons:

  • Low: 15° (30% Expo)

  • Mid: 35° (40% Expo)

  • High: 45° (50% Expo)

• Elevator:

  • Low: 15° (30% Expo)

  • Mid: 35° (50% Expo)

  • High: 45° (60% Expo)

• Rudder:

  • Low: 15° (30% Expo)

  • Mid: 35° (40% Expo)

  • High: Max (50% Expo)

Additional Items Needed:

• Servo Arms:

  • 2x ef 1.5" servo arms for ailerons

  • 2x ef 2" servo arms for elevators

  • 1x kuza 3.50" double servo arm for pull-pull rudder

• Servo Extensions:

  • 2x MXP single wire servo connectors

  • 2x 48" elevator extensions

  • 1x 12" ESC extension (electric)

  • 1x 12" throttle servo & ignition extension (gas)

• Spinner: 4.5" recommended

• Fuel Tank: AJ Aircraft Gas Tank - 24oz (700ml) (for gas setups)

Shipping Info:

This product ships in two separate boxes due to size.
